Запчасти Case IH 1660 (4-58) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

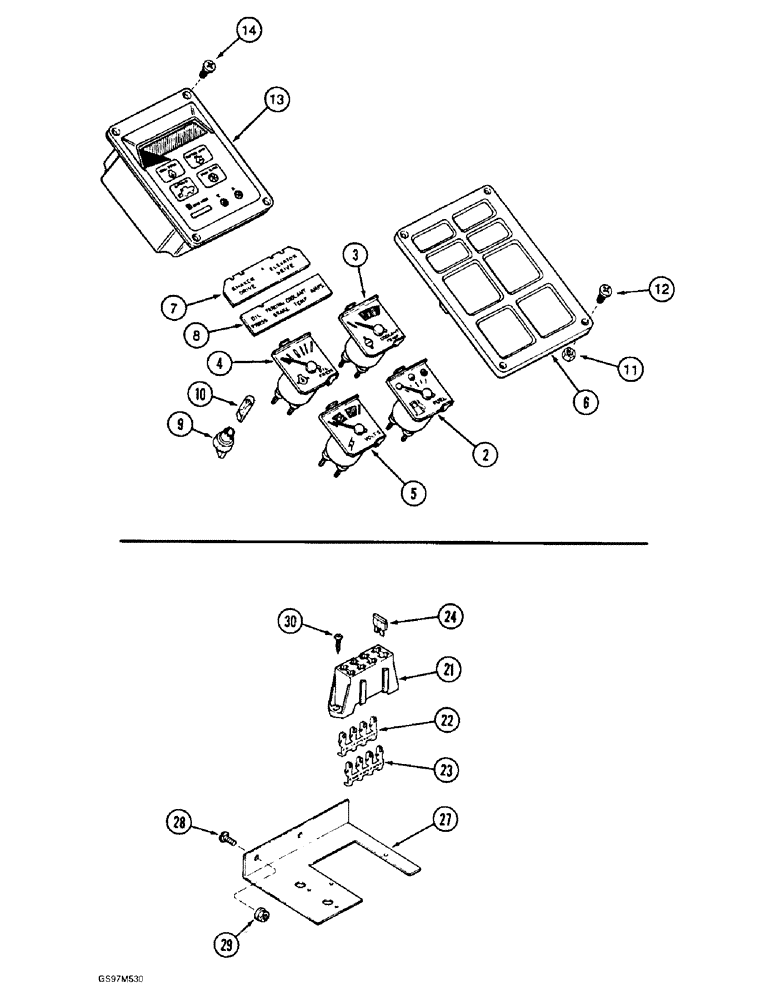

Схема запчастей Case IH 1660 - (4-58) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL
3
2
21
29
30
8
23
14
28
7
11
10
9
6
13
24
4
27
5
22
12

Артикул

Название

Примечание

Количество

1983246C1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT CLUSTER ASSEMBLY - instrument gauges, Includes: Ref. 2 - 10

1шт.

2

121604C2

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

121605C3

ELECTRICAL GAUGE

GAUGE - coolant temperature

1шт.

4

121606C2

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C2

ELECTRICAL GAUGE

GAUGE - system voltage

1шт.

6

121608C1

GASKET

BEZEL - instrument cluster,includes gasket

1шт.

7

1979357C1

LENS

LENS - coolant level, oil pressure, brake, temperature

1шт.

8

187597C1

LENS

LENS - warning lamp shaker elevator

1шт.

9

121611C1

SOCKET

SOCKET - bulb, instrument cluster

8шт.

10

W10478

LAMP

BULB - lamp, No. 194

8шт.

11

225-14210

NUT,#10-32

NUT, #10-32

4шт.

12

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

13

1987322C2

TACHOMETER

TACHOMETER - engine, new (Replaces tachometer 245249C2)

1шт.

13

1935114C2

REMAN-ELECT GAUGE

Tachometer - engine, remanufactured

1шт.

13

1935113C2

CORE GAUGE ELECT

Core-Electrical Gauge Return Number - use this part number to return tachometer for credit when using a remanufactured assembly

1шт.

14

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

21

245435C1

FUSE HOLDER

BLOCK ASSEMBLY - fuse, parts list Figure 4-8

3шт.

22

506504C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL - fuse block, type L10

1шт.

23

506498C1

TERMINAL CONNECTOR

TERMINAL - fuse block, type L11

1шт.

24

A149801

FUSE,Lt Blue, 15 Amp

FUSE - light blue, 15 ampere, block

2шт.

24

A149800

FUSE,10 Amp

FUSE - red, 10 ampere, block

5шт.

24

A149799

FUSE

FUSE - brown, 7-1/2 ampere, if used, block

3шт.

24

A149804

FUSE

FUSE - light green, 30 ampere, block

1шт.

24

A149798

FUSE

FUSE - tan, 5 ampere, block

2шт.

24

A149796

FUSE

FUSE - violet, 3 ampere, block

2шт.

27

1280162C3

SUPPORT

SUPPORT - fuse block

1шт.

28

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

2шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

NUT, Flg, USR, 1/4"-20

2шт.

30

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.

Выбрано товаров: 29
