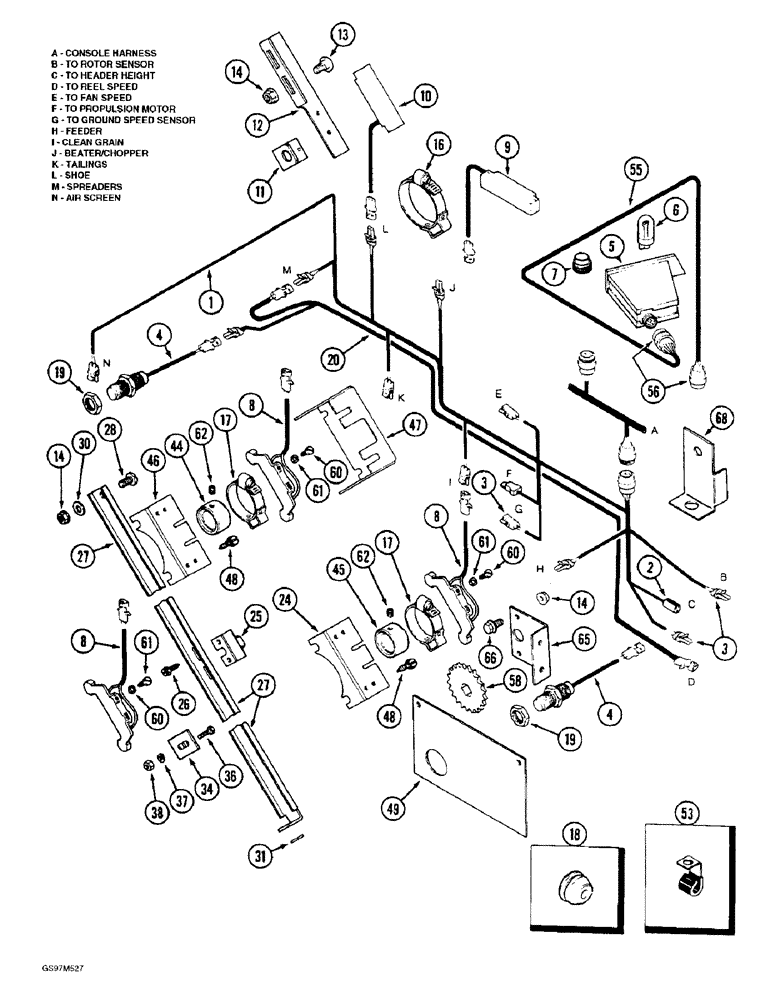

Запчасти Case IH 1660 (4-52) - SHAFT SPEED MONITOR CONTROL, COMBINE WITH STRAW CHOPPER, PRIOR TO P.I.N. JJC0103800 (06) - ELECTRICAL

1

1983535C1

HARNESS

HARNESS ASSEMBLY - shaft speed, rear, P.I.N. JJC0040135 through JJC0103800, Includes: Ref. 2 & 3

1шт.

1

245238C2

HARNESS

HARNESS ASSEMBLY - shaft speed, rear, prior to P.I.N. JJC0040135, Includes: Ref. 2 & 3

1шт.

2

225161C2

CONNECTOR - wire, no longer available

1шт.

3

245482C1

ELEC CONNECTOR,2 Pin

CONNECTOR - harness

11шт.

4

245193C2

SENSOR

SENSOR - for straw spreader, feeder, ground speed, rotor and fan

5шт.

5

245275C91

CASE ASSY.

MONITOR ASSEMBLY - shaft speed, new, includes decal, Includes: Ref. 6 & 7

1шт.

5

1935072C1

REMAN-ELECT MONITOR

1660 (S/N JJC0038346 & AFTER) , shaft speed new, COMBINE W/ STRAW CHOPPER, PRIOR TO P.I.N. JJC0103800 (1/86-12/92)

1шт.

5

1935071C1

CORE-MONITOR

Return Number

1шт.

6

A48888

BULB

BULB - lamp

1шт.

7

195359A1

SHUTTER

SUPPRESSOR - audible alarm (Replaces suppressor 178876C1)

1шт.

8

245365C1

TRANSMITTER

SENSOR - monitor control, for rotary air screen, tailings auger, clean grain sensor

3шт.

9

245410C1

TRANSMITTER

SENSOR - monitor control, for straw chopper

1шт.

10

245364C1

SWITCH

SWITCH - monitor control, for shoe

1шт.

11

187996C1

MAGNET

MAGNET - shoe sensor, for shoe

1шт.

12

187998C2

ANGLE

SUPPORT - shoe sensor

1шт.

13

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

16

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET - sensor, for straw chopper

1шт.

17

178800C1

CLAMP

MAGNET - sensor, for clean grain and tailings auger

2шт.

18

195803C1

GROMMET

GROMMET - 3/8 inch ID

1шт.

19

84116C1

NUT

NUT - hex, self-locking, 3/4 inch NC

2шт.

20

92151C1

HARNESS

HARNESS - monitor, used without straw spreader

1шт.

24

183869C3

SUPPORT

BRACKET - sensor (Replaces bracket 178795C2)

1шт.

25

196987C1

MAGNET

MAGNET - sensor, for rotary air screen

1шт.

26

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - self-tapping, pan slotted, No. 8-18 x 1/2 inch

2шт.

27

1329865C1

CHANNEL

CHANNEL - sensor mounting

1шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

SCREW - serrated slotted truss head, 5/16 NC x 3/4"

3шт.

30

179454C1

RUBBER WASHER

WASHER - flat, rubber, special

1шт.

31

28588R1

WASHER

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.

34

1301560C1

SUPPORT

BRACKET - mounting, rotary air screen sensor adjustment

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

44

178801C1

COLLAR

COLLAR - locking, bearing, tailings elevator shaft

1шт.

45

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

COLLAR - locking, clean grain auger

1шт.

46

183869C3

SUPPORT

BRACKET - sensor, tailings

1шт.

47

181208C3

SUPPORT

COVER - tailings sensor bracket

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head, 1/4-14 x 1/2 inch

4шт.

49

1979323C1

SHIELD

COVER - clean grain auger sensor

1шт.

53

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

1шт.

55

245242C1

HARNESS

HARNESS ASSEMBLY - shaft speed front, Includes: Ref. 56

1шт.

56

131498C1

ELEC CONNECTOR

CONNECTOR - harness

2шт.

58

1317973C2

SPROCKET ASSY.

SPROCKET - feeder sensor, without rock trap or feeder reverser

1шт.

60

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

SCREW - machine, pan head slotted, No. 8 NC x 3/8 inch

3шт.

61

492-11008

LOCK WASHER,#8

Washer, Lock, #8

3шт.

62

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket headless, 1/4 NC x 3/8 inch, cup point

2шт.

65

1330063C1

SUPPORT

SUPPORT - sensor, feeder shaft, without rock trap or feeder reverser

1шт.

66

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

68

1317950C1

SUPPORT

SUPPORT - feeder sensor, with rock trap or feeder reverser

1шт.
