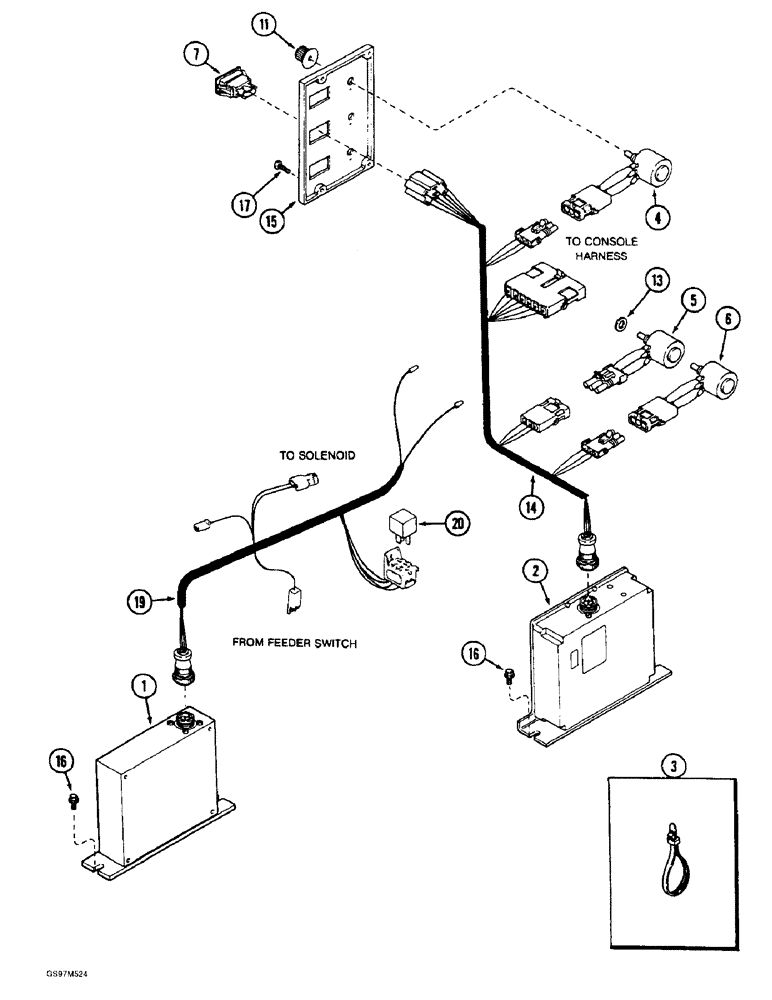

Запчасти Case IH 1660 (4-46) - AUTOMATIC FEEDER CUT-OFF AND AUTOMATIC REEL SPEED, TO GROUND SPEED CONTROLS (06) - ELECTRICAL

1

1983214C1

CONTROL BLOCK

CONTROL - automatic feeder cutoff

1шт.

2

1983212C1

CONTROL BLOCK

CONTROL - automatic reel speed to ground speed

1шт.

3

702093C1

CABLE TIE

STRAP - tie

1шт.

4

245637C1

POTENTIOMETER,2500 Ohm

Reel to Ground Speed Ratio 2500 Ohm

1шт.

5

245925C1

POTENTIOMETER,1000 Ohm

Speed Setting 1000 Ohm

1шт.

6

245638C1

POTENTIOMETER,200,000 Ohm

Calibration, Single 200,000 Ohm

1шт.

7

245697C1

SWITCH

- rocker, automatic manual

1шт.

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

11

1301036C1

BUTTON

KNOB - control, without pointer, no longer available, order knob 1345235C1 below

1шт.

11

1345235C1

BUTTON

KNOB - control, with pointer

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

14

245923C1

HARNESS

- reel to ground speed

1шт.

15

REF

INSTRUCTION

PANEL - front control, See Figure 9G-2

1шт.

16

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

4шт.

17

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

1шт.

19

1345237C1

HARNESS

- console, See Figure 4-8, prior to P.I.N. JJC0103800

1шт.

19

1994836C1

HARNESS

- automatic feeder cut-off, P.I.N. JJC0103800 and after

1шт.

20

1983394C2

RELAY

- cab, 12 volt (Replaces relay 146461C1)

1шт.
