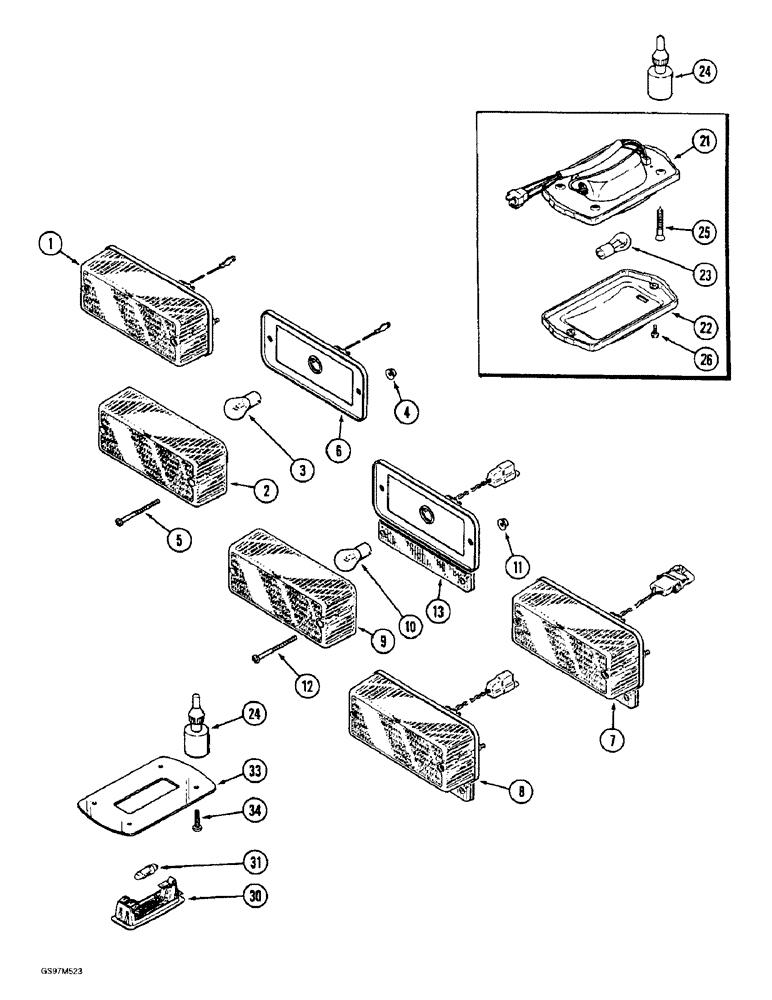

Запчасти Case IH 1660 (4-44) - LAMP ASSEMBLIES, WARNING, FRONT AND REAR (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
130882C91
LAMP
LAMP ASSEMBLY - warning, Includes: Ref. 2 - 6
4шт.
2
130883C1
LENS
- amber
1шт.
3
A41264
BULB,#1156, 12V
Lamp #1156, 12V
1шт.
4
231-51409
SERRATED NUT,Flg, USR, #10-24
2шт.
5
261-54536
SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"
SCREW - self-tapping, pan Phillips, No. 10 NC x 2-1/4 inch
2шт.
6
NSS
NOT SOLD SEPARAT
BACK PLATE - lamp, order lamp assembly 130882C91
1шт.
7
92260C1
LAMP,12V, 27W, Red
ASSEMBLY - stop and tail, Includes: Ref. 9 - 13
2шт.
Used with 1983342C2 harness, see Figure 4-32.
1шт.
8
216044C92
LAMP
ASSEMBLY - stop and tail, Includes: Ref. 9 - 13
2шт.
Used with 1983342C1 harness, see Figure 4-32.
1шт.
9
216045C1
LENS
- red, stop and tail
1шт.
10
T34857
BULB,C6, #1157, 12.8V
- lamp, No. 1157, stop and tail
1шт.
11
231-51409
SERRATED NUT,Flg, USR, #10-24
2шт.
12
261-54536
SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"
SCREW - self-tapping, pan Phillips, No. 10 NC x 2-1/4 inch
2шт.
13
NSS
NOT SOLD SEPARAT
BACK PLATE - lamp, order lamp assembly, stop and tail
1шт.
21
245659C91
LAMP
ASSEMBLY - dome, if used, Includes: Ref. 22 & 23
1шт.
22
245679C1
LENS
- dome lamp
1шт.
23
142457
BULB,C6, #1142, 12.8V
LAMP - type C-6, No. 1142, dome
1шт.
117995C1
PACKAGE
KIT - fastener, package of five, dome, Includes: Ref. 24
1шт.
24
NSS
NOT SOLD SEPARAT
FASTENER - dome lamp, order kit
4шт.
25
27071R1
SELF-TAP SCREW,Cross Oval Hd, #8 x 1 1/2"
SCREW - tapping, No. 8-18 x 1-1/2 inch, if used, dome
4шт.
26
NSS
NOT SOLD SEPARAT
SCREW - lens mounting, order lamp assembly 245659C91, if used, dome
2шт.
30
1983391C1
LAMP,12V, 10W
ASSEMBLY - dome, Includes: Ref. 31
1шт.
31
3050958R1
BULB,K, 12V, 10W
- lamp, dome, double ended bulb, Replaced 1094378R1 K, 12V, 10W
1шт.
33
1979628C1
LARGE PLATE
PLATE - dome lamp
1шт.
34
260-53424
SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"
SCREW - self-tapping, pan Phillips, No. 8-18 x 1-1/2 inch
4шт.
Выбрано товаров: 26
