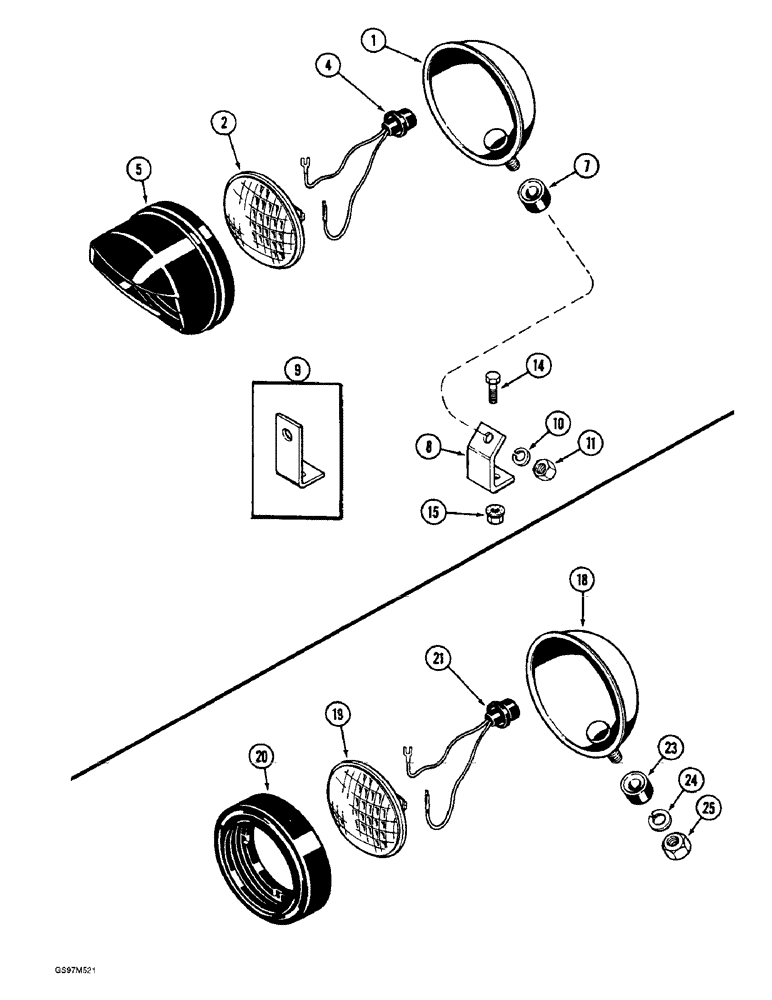

Запчасти Case IH 1660 (4-40) - GRAIN TANK LAMP, UNLOADER LAMP (06) - ELECTRICAL

245954C91

LAMP

ASSEMBLY - grain tank, Includes: Ref. 1 - 5

1шт.

Use P.I.N. JJC0040124 and after. For component breakdown see unloader lamp assembly 2455954C91 below.

1шт.

245953C91

LAMP

ASSEMBLY - grain tank, prior to P.I.N. JJC0040124, no longer available, order lamp assembly 245954C91, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - lamp, order assembly 245953C91

1шт.

2

28625R1

LAMP

- No. 4414

1шт.

4

530029R91

CONNECTOR, ELEC

CONNECTOR - lamp

1шт.

5

107471C1

RETAINER

HOOD - lamp, prior to P.I.N. JJC0040124, no longer available, order lamp assembly 245954C91

1шт.

7

D37048

BUSHING

SEAT - lamp mounting (Replaces seat 1267358C2)

1шт.

8

561915R1

BRACKET

- lamp mounting

1шт.

9

1317942C1

BRACKET

- grain tank lamp, no longer available, order bracket 561915R1, item 8

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

14

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

15

231-5146

FLANGE NUT,3/8"-16

1шт.

245954C91

LAMP

ASSEMBLY - unloader, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - lamp, order assembly 245954C91, unloader

1шт.

19

A47179

BULB

LAMP - sealed beam, No. 4406 (Replaces lamp A42294), unloader

1шт.

20

A25213

RETAINER

- sealed lamp rubber, for use with Hobbs lamp, unloader

1шт.

20

1252609C1

RETAINER

- shockproof, for use with Midwest lamp, unloader

1шт.

21

530029R91

CONNECTOR, ELEC

CONNECTOR - lamp, unloader

1шт.

23

D37048

BUSHING

SEAT - lamp mounting (Replaces seat 1267358C2), unloader

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
