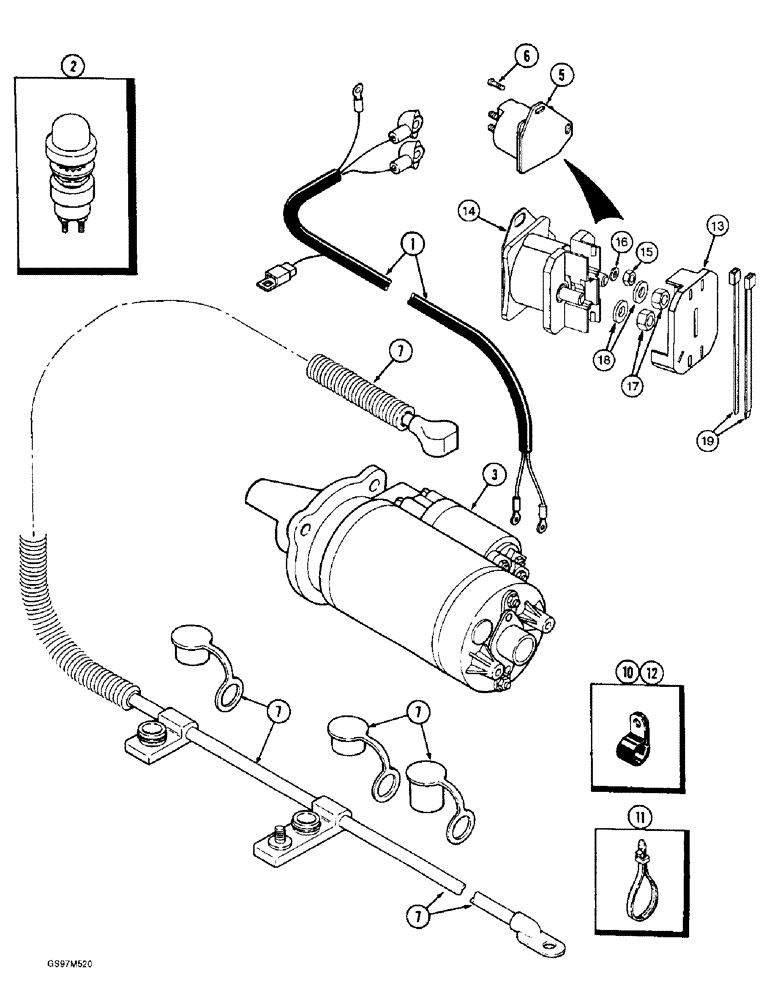

Запчасти Case IH 1660 (4-38) - FEEDER REVERSER HARNESS (06) - ELECTRICAL

1

245957C1

HARNESS

HARNESS - feeder reverser

1шт.

2

453453C1

SWITCH

SWITCH - feeder reverser, push button

1шт.

3

245927C93

STARTING MOTOR

MOTOR ASSEMBLY - feeder reverser, parts list Figure 4-66

1шт.

3

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

3

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

5

A39079

SOLENOID

SOLENOID - magnetic relay, no longer available, order kit 178149A1, items 13 - 19 below

1шт.

6

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

2шт.

7

245955C4

CABLE

CABLE - battery positive

1шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

CLAMP, , P-type 1", Insul, 3/8" Bolt

10шт.

11

702093C1

CABLE TIE

CABLE STRAP STRAP - tie

2шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

CLAMP, , P-type 1", Insul, 3/8" Bolt

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, Includes: Ref. 13 - 19

1шт.

13

178148A1

COVER

COVER - solenoid switch

1шт.

14

183038A1

SOLENOID

SWITCH - solenoid with barrier, order kit

1шт.

15

225-14210

NUT,#10-32

NUT, #10-32

1шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

17

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

2шт.
