(4-34) - REAR LAMPS AND FUEL SENDER HARNESS, P.I.N. JJC0103800 AND AFTER

Запчасти Case IH 1660 (4-34) - REAR LAMPS AND FUEL SENDER HARNESS, P.I.N. JJC0103800 AND AFTER (06) - ELECTRICAL

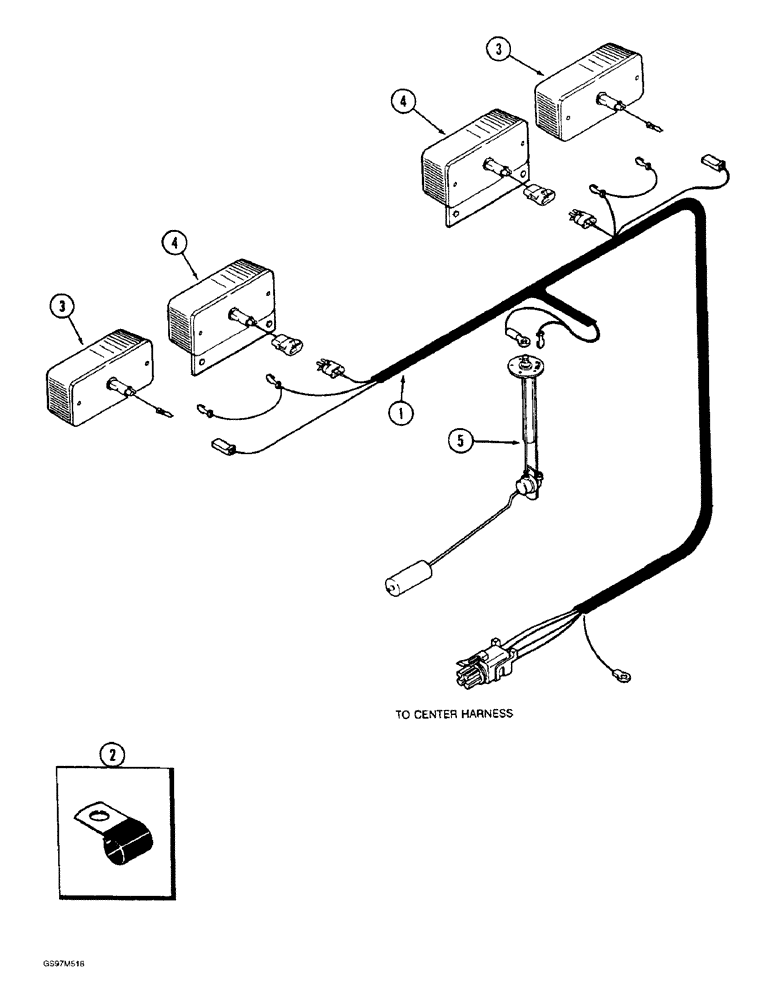

Схема запчастей Case IH 1660 - (4-34) - REAR LAMPS AND FUEL SENDER HARNESS, P.I.N. JJC0103800 AND AFTER (06) - ELECTRICAL
3
4
3
1
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1994847C1

HARNESS

- rear lamps and fuel sender

1шт.

2

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type 1 1/4", Insul, 7/16" Bolt

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

6шт.

3

130882C91

LAMP

LAMP ASSEMBLY - warning rear, parts list Figure 4-44

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail, parts list Figure 4-44

2шт.

5

198024C1

FUEL GAUGE

GAUGE - fuel level sending unit, see Figure 3-16

1шт.
