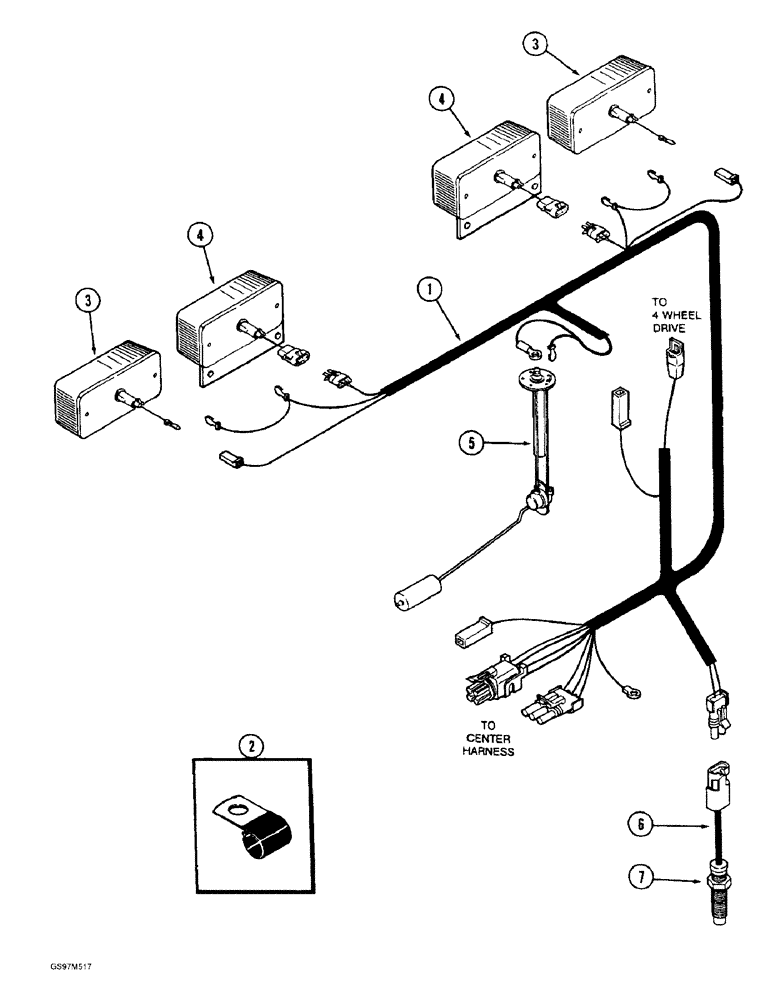

Запчасти Case IH 1660 (4-32) - REAR LAMPS AND FUEL SENDER HARNESS, PRIOR TO P.I.N. JJC0103800 (06) - ELECTRICAL

1

1983342C2

HARNESS

- rear lamps and fuel sender

1шт.

See tail lamp assembly, parts list Figure 4-44

1шт.

2

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type 1 1/4", Insul, 7/16" Bolt

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

6шт.

3

130882C91

LAMP

LAMP ASSEMBLY - warning rear, parts list Figure 4-44

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail, parts list Figure 4-44

2шт.

5

198024C1

FUEL GAUGE

GAUGE - fuel level sending unit, see Figure 3-16

1шт.

6

1252494C2

TRANSMITTER

SENSOR - engine RPM

1шт.

7

84116C1

NUT

- hex, self-locking, 3/4 inch NC

2шт.
