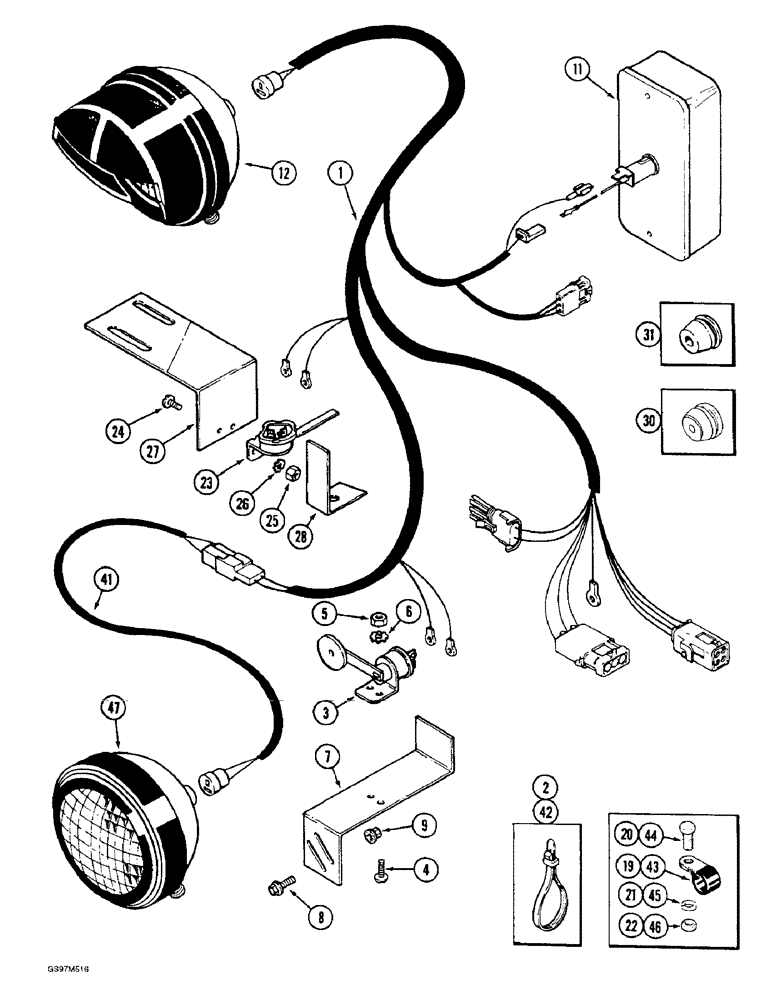

Запчасти Case IH 1660 (4-30) - GRAIN TANK HARNESS (06) - ELECTRICAL

1

245243C3

HARNESS

- grain tank

1шт.

2

702093C1

CABLE TIE

STRAP - tie, cable retaining

1шт.

3

91436C4

SWITCH

- unloader in

1шт.

4

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

5

225-14110

NUT,#10-24

2шт.

6

493-81001

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal-external tooth lock, 3/16 inch

2шт.

7

1338022C1

SUPPORT

BRACKET - unloader in switch

1шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

130882C91

LAMP

LAMP ASSEMBLY - warning, right-hand front, parts list Figure 4-44

1шт.

12

REF

INSTRUCTION

LAMP ASSEMBLY - grain tank, parts list Figure 4-40

1шт.

19

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- harness (Replaces clamp 299401C1)

12шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

23

537641R2

SWITCH ASSY

SWITCH - limit, unloader out

1шт.

24

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.

25

225-13210

NUT,#10-32

2шт.

27

1338003C1

BRACKET

SUPPORT - unloader out switch

1шт.

28

1338004C1

BRACKET

- unloader out switch

1шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID, grain bin

1шт.

31

195803C1

GROMMET

- 3/8 inch ID, upper

2шт.

41

91828C1

HARNESS

- unloader lamp

1шт.

42

702093C1

CABLE TIE

STRAP - tie, cable retaining, unloader lamp harness

1шт.

43

299277C91

CLIP

CLAMP - harness, unloader lamp

2шт.

44

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

47

245954C91

LAMP

ASSEMBLY - unloader, parts list Figure 4-40, harness

1шт.

26

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.
