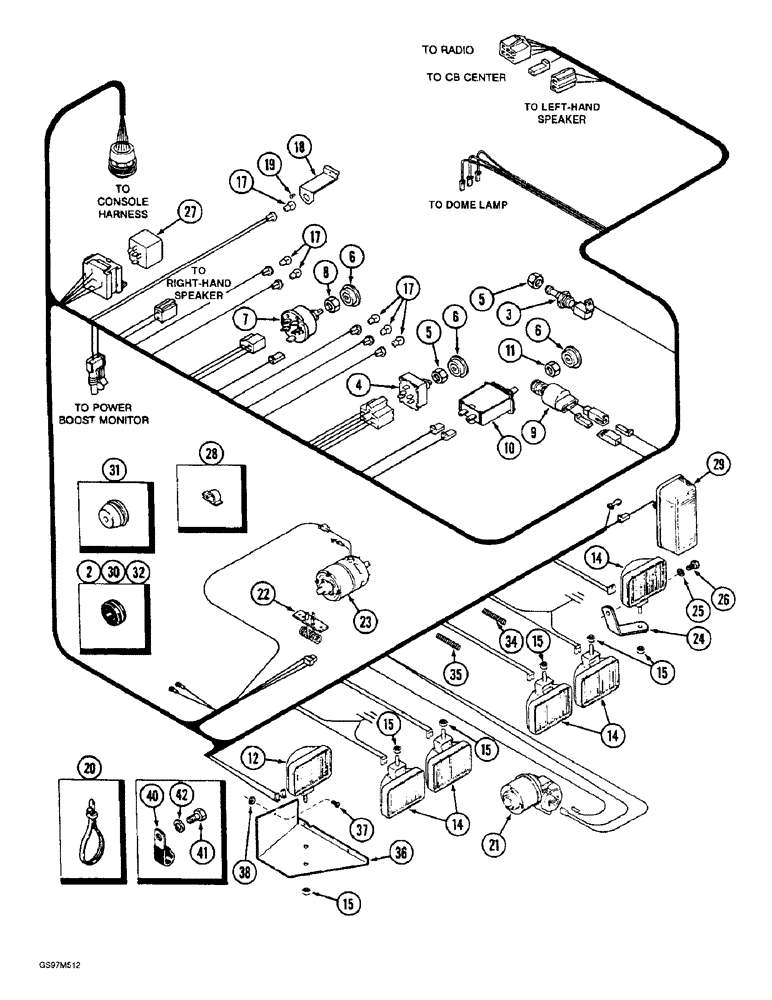

Запчасти Case IH 1660 (4-22) - CAB ROOF HARNESS (06) - ELECTRICAL

1

84311C6

HARNESS

- cab roof, prior to P.I.N. JJC0103800

1шт.

1

1994715C1

HARNESS

- cab roof, P.I.N. JJC0103800 and after

1шт.

2

3063674R1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome lamp control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam, 7/16-28 NF

1шт.

6

111282C1

KNOB

- control, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam, 7/16-28 NF

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - low pressure, air conditioning

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - low pressure, air conditioning

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam, 7/16-28 NF

2шт.

12

91666C91

INTERIOR LIGHT

LAMP - headlamp, flood, 40 x 7 Halogen fog, prior to P.I.N. JJC0103800

1шт.

12

245555C1

LAMP

- headlamp, 40 x 7 Halogen, P.I.N. JJC0103800 and after

1шт.

14

245897C91

LAMP, WORK

LAMP - worklamp and outer flood lamp, 80 x 30 Halogen

5шт.

15

325-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

6шт.

245659C91

LAMP

ASSEMBLY - dome, parts list Figure 4-44

1шт.

17

A14553

BULB

- No. 57, Type C-2V, cab instrument panel backlamp and warning lamp

6шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - self-tapping, pan slotted, No. 8-18 x 1/2 inch

5шт.

20

111619C1

STRAP

- tie

6шт.

21

REF

INSTRUCTION

MOTOR ASSEMBLY - wiper, parts list Figure 4-74

1шт.

22

1255876C1

RESISTOR

- blower motor

1шт.

23

190333A1

MOTOR, ELECTRIC,12V

MOTOR - blower, 12 volt, DC, PM (Replaces motor 142990C2)

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1660 CIH S/N JJC0038346 & Aft.

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

- mounting, outer flood lamp

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

326-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

2шт.

27

1-7877

RELAY

- electrical

1шт.

28

169850C2

CABLE CLIP

CLIP, CABLE - retaining

2шт.

29

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list Figure 4-44

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID

1шт.

32

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole

1шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 178 mm (7 inch) long, cut from bulk conduit R43250 below

2шт.

35

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 229 mm (9 inch) long, cut from bulk conduit R43250 below

2шт.

36

1283449C3

BRACKET

- lamp mounting, includes shield

1шт.

37

436746

SCREW

- machine, special, No. 10 NF x 1/4 inch

1шт.

38

225-13110

NUT,#10-24

1шт.

40

371036R1

CLIP

CLAMP - retaining

1шт.

41

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

R43250

CONDUIT

- bulk, 15240 mm (600 inch) roll

1шт.
