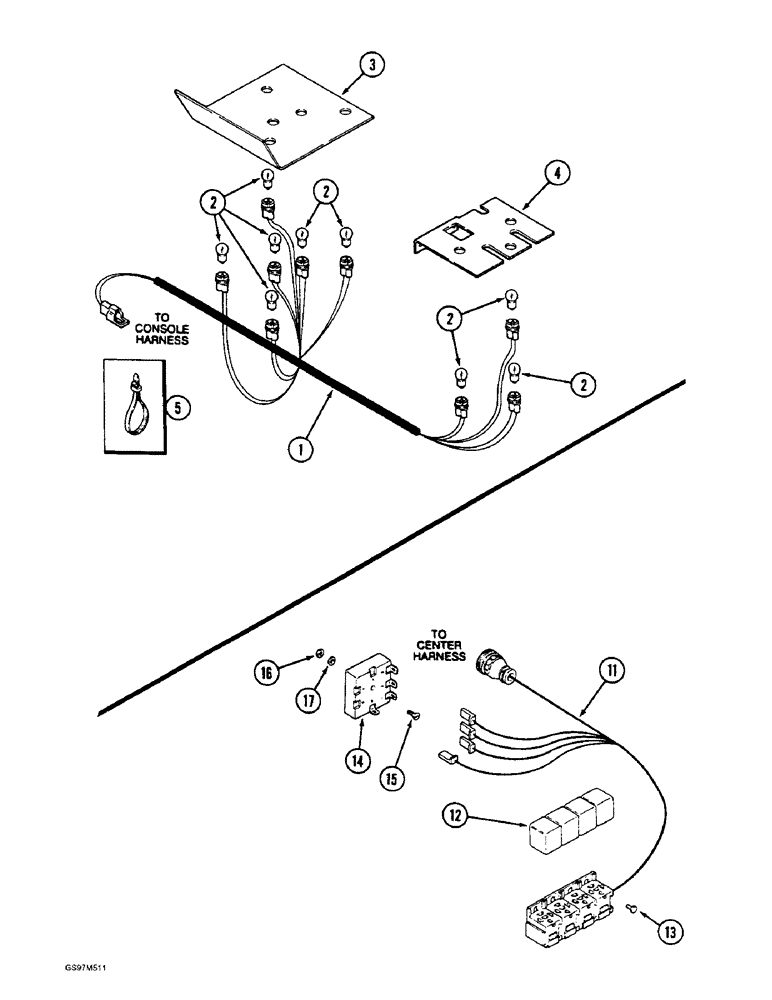

Запчасти Case IH 1660 (4-20) - CONSOLE BACK LIGHTING HARNESS, PRIOR TO P.I.N. JJC0040209 (06) - ELECTRICAL

1

245231C1

HARNESS

- console backlighting

1шт.

2

A14553

BULB

- No. 57

9шт.

3

1280424C1

BRACKET

SUPPORT - backlight, see Figure 9G-12

1шт.

4

1280422C1

BRACKET

SUPPORT - backlight, see Figure 9G-12

1шт.

5

702093C1

CABLE TIE

STRAP - tie

1шт.

11

1983543C2

CONTROL

LER - feeder inhibitor, P.I.N. JJC0040115 through JJC0103800

1шт.

12

1983394C2

RELAY

- cab, 12 volt (Replaces relay 146461C1), P.I.N. JJC0040115 through JJC0103800

4шт.

13

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch, P.I.N. JJC0040115 through JJC0103800

2шт.

14

1964920C2

IGNITION SWITCH

SWITCH - timer delay, P.I.N. JJC0040115 through JJC0103800

1шт.

15

473-12520

SCREW,FLAT, 1/4" - 20 x 1-1/4"

- slotted head, flat, 1/4 NC x 1-1/4 inch, P.I.N. JJC0040115 through JJC0103800

1шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, P.I.N. JJC0040115 through JJC0103800

1шт.

17

495-31022

WASHER,#10

P.I.N. JJC0040115 through JJC0103800 #10

1шт.
