Запчасти Case IH 1660 (4-14) - CONSOLE HARNESS, RIGHT-HAND SIDE, P.I.N. JJC0103800 AND AFTER (06) - ELECTRICAL

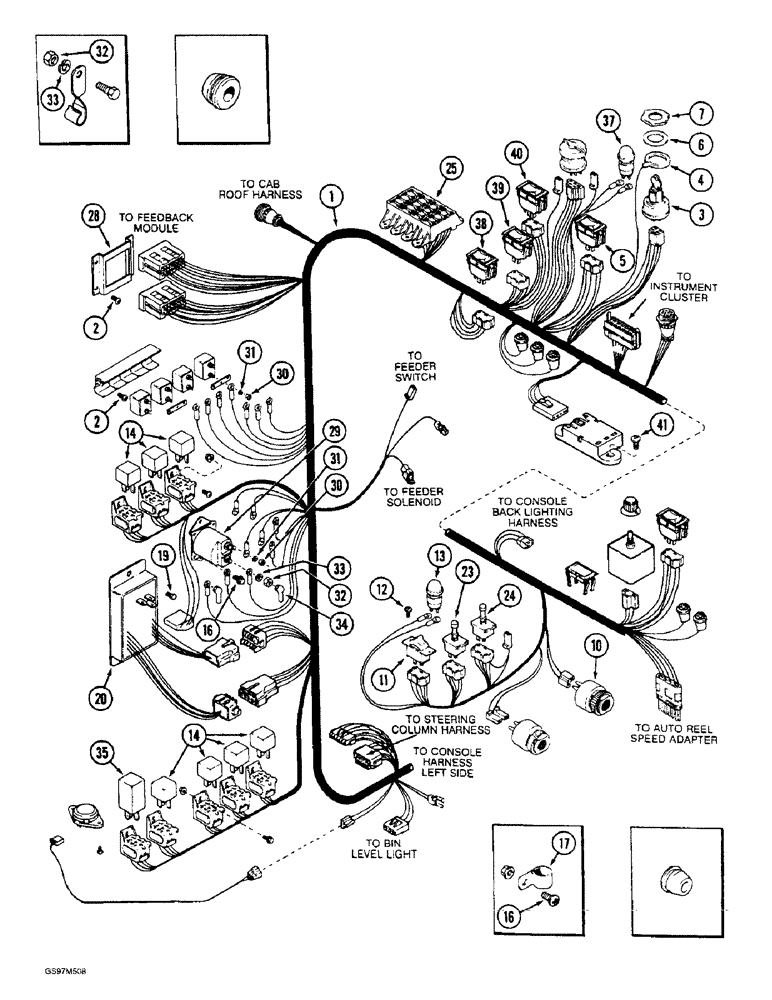

Схема запчастей Case IH 1660 - (4-14) - CONSOLE HARNESS, RIGHT-HAND SIDE, P.I.N. JJC0103800 AND AFTER (06) - ELECTRICAL
24
16
14
14
25
41
12
13
37
33
30
7
2
40
38
31
29
19
1
10
4
3
32
23
33
17
31
30
20
35
28
5
11
6
34
16
2
32
39

Артикул

Название

Примечание

Количество

1

1994820C1

HARNESS

- console

1шт.

2

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch

10шт.

2

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

3

1252476C1

SWITCH

- ignition

1шт.

4

131313C1

KEY, IGNITION

KEY - ignition

1шт.

5

245219C1

SWITCH

- rotor speed

1шт.

6

375431R1

LOCK WASHER

- flat, special

1шт.

7

365502R1

NUT

- flat hex, special

1шт.

10

1546441C1

BUZZER

- audible alarm (Replaces buzzer 245854C1)

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

13

453453C1

SWITCH

ASSEMBLY - feeder reverser, see Figure 4-38

1шт.

14

1983394C2

RELAY

- cab, 12 volt (Replaces relay 146461C1)

7шт.

14

86529089

RELAY

without skirt and mounting tab

7шт.

16

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

6шт.

17

299277C91

CLIP

- console harness

2шт.

19

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch

2шт.

20

1994871C1

GOVERNOR

RECTIFIER - central load dump

1шт.

23

245633C1

IGNITION SWITCH

SWITCH - feeder clutch, 2 position, without reverser

1шт.

23

1964919C1

IGNITION SWITCH

SWITCH - 3 position, with reverser

1шт.

24

245632C2

SWITCH

- separator clutch

1шт.

25

245435C1

FUSE HOLDER

BLOCK ASSEMBLY - fuse, parts list Figure 4-58

1шт.

NSS

NOT SOLD SEPARAT

SOCKET - relay, order harness 1994820C1

6шт.

NSS

NOT SOLD SEPARAT

MODULE - feedback, order harness 1994820C1

2шт.

NSS

NOT SOLD SEPARAT

BRACKET - feed back module mounting, order harness 1994820C1

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH - magnetic cab power

1шт.

30

225-14210

NUT,#10-32

9шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cable

2шт.

35

1994819C1

RELAY

- time delay

1шт.

37

453453C1

SWITCH

- push button, ether start

1шт.

38

245012C1

SWITCH

- rocker, four-wheel drive

1шт.

39

245012C1

SWITCH

- rocker, variable propulsion, two speed

1шт.

40

245219C1

SWITCH

- fan speed

1шт.

41

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

2шт.

Выбрано товаров: 37
