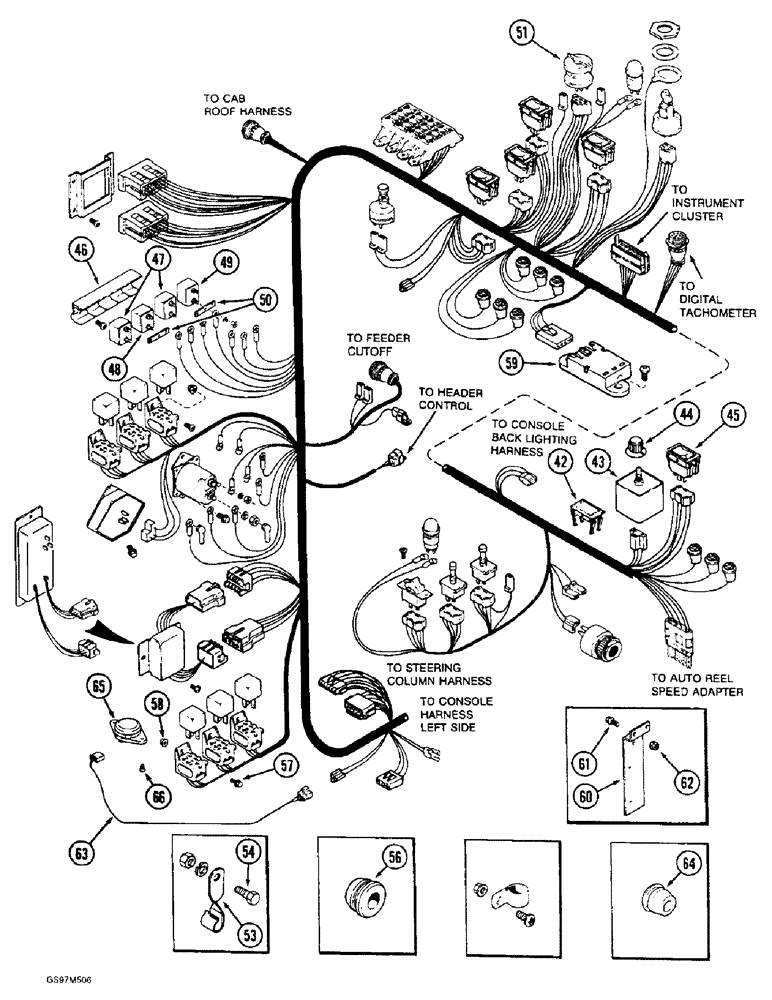

Запчасти Case IH 1660 (4-10) - CONSOLE HARNESS, RIGHT-HAND SIDE, PRIOR TO P.I.N. JJC0103800 (CONTD) (06) - ELECTRICAL

42

245334C1

PLUG

- panel switch cover

1шт.

43

245653C2

SWITCH

- reel speed manual

1шт.

44

1345235C1

BUTTON

KNOB - control, reel speed

1шт.

45

245509C1

SWITCH

- reel, fore and aft, if used

1шт.

46

245871C1

BRACKET

- circuit breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

BREAKER - worklamp circuit, 30 ampere

2шт.

48

245762C1

CIRCUIT-BREAKER,15A

BREAKER - rotor circuit, 15 ampere

1шт.

49

245763C1

CIRCUIT-BREAKER,20A

BREAKER - cab circuit, 20 ampere

1шт.

50

245861C1

BAR

- breaker bus

1шт.

51

107200C2

LIGHT SWITCH

SWITCH - headlamp

1шт.

53

363660R1

CLIP

- twisted, console harness

1шт.

54

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

56

92065C1

GROMMET

- rubber, console harness

1шт.

57

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

58

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

59

284421A1

CONTROL UNIT

MODULE - low coolant (Replaces module 121770C2)

1шт.

60

1347059C2

SUPPORT

- seat relay

1шт.

61

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

62

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

63

1345209C1

HARNESS

- seat switch

1шт.

64

195804C1

GROMMET

- 1/2 inch

1шт.

65

242306A2

SWITCH

- seat (Replaces switch 1983395C1)

1шт.

66

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch

2шт.
