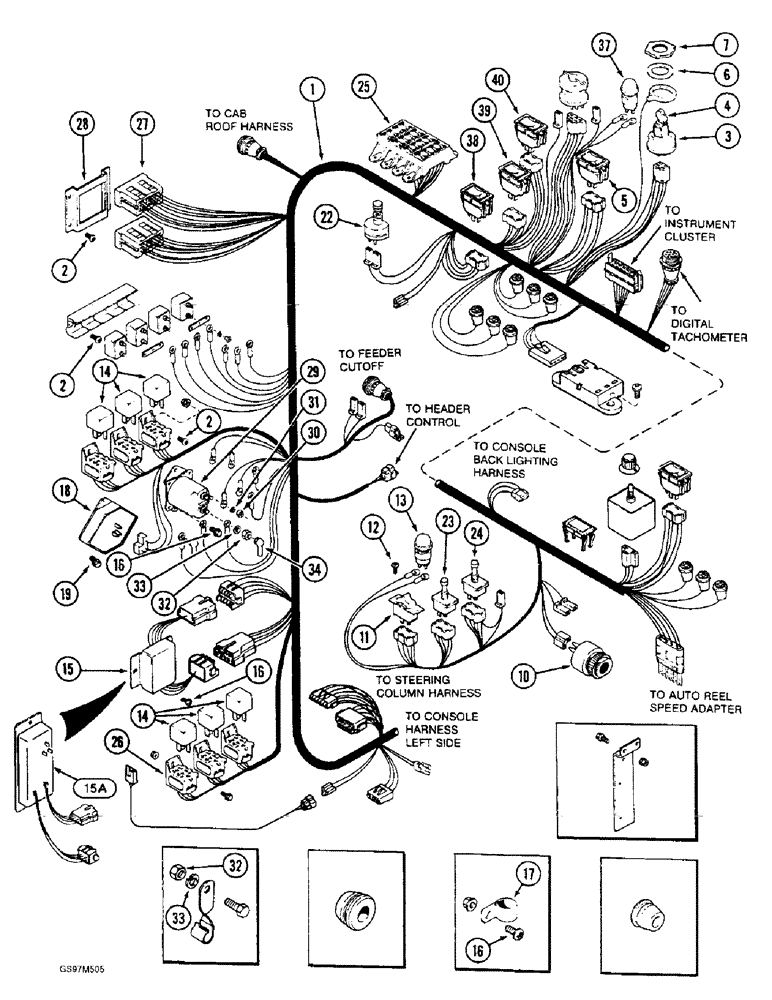

Запчасти Case IH 1660 (4-08) - CONSOLE HARNESS, RIGHT-HAND SIDE, PRIOR TO P.I.N. JJC0103800 (06) - ELECTRICAL

1

1345237C1

HARNESS

- console

1шт.

2

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

8шт.

2

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 x 3/4 inch (Replaces screw 27017R1)

2шт.

3

1252476C1

SWITCH

- ignition

1шт.

4

131313C1

KEY, IGNITION

KEY - ignition

1шт.

5

245219C1

SWITCH

- rotor speed

1шт.

6

375431R1

LOCK WASHER

- flat, special

1шт.

7

365502R1

NUT

- flat hex, special

1шт.

10

1546441C1

BUZZER

- audible alarm (Replaces buzzer 245854C1)

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

13

453453C1

SWITCH

- feeder reverser, see Figure 4-38

1шт.

14

1-7877

RELAY

- electrical

6шт.

15

187609C2

RECTIFIER

- diode

1шт.

15a

1994871C1

GOVERNOR

RECTIFIER - load dump and diode logic

1шт.

16

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

6шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

2шт.

18

245835C1

SUPPRESSOR

- central load dump, if used

1шт.

19

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex, self-tapping, No. 10 x 1/2 inch (Replaces screw 593749R1)

2шт.

22

245513C1

SWITCH

- dimmer, if used

1шт.

23

245633C1

IGNITION SWITCH

SWITCH - feeder clutch, 2 position, without reverser

1шт.

23

1964919C1

IGNITION SWITCH

SWITCH - 3 position, with reverser

1шт.

24

245632C2

SWITCH

- separation clutch

1шт.

25

245435C1

FUSE HOLDER

BLOCK ASSEMBLY - fuse, parts list Figure 4-58

3шт.

26

NSS

NOT SOLD SEPARAT

SOCKET - relay, order harness 1994820C1 on Figure 4-14

6шт.

27

NSS

NOT SOLD SEPARAT

MODULE - feedback, order harness 1994820C1 on Figure 4-14

2шт.

28

NSS

NOT SOLD SEPARAT

BRACKET - feed back module mounting, order harness 1994820C1 on Figure 4-14

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH - magnetic cab power

1шт.

30

225-14210

NUT,#10-32

9шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cable

2шт.

37

453453C1

SWITCH

- push button, ether start

1шт.

38

245012C1

SWITCH

- rocker, four-wheel drive

1шт.

39

245012C1

SWITCH

- rocker, variable propulsion, two speed

1шт.

40

245219C1

SWITCH

- fan speed

1шт.
