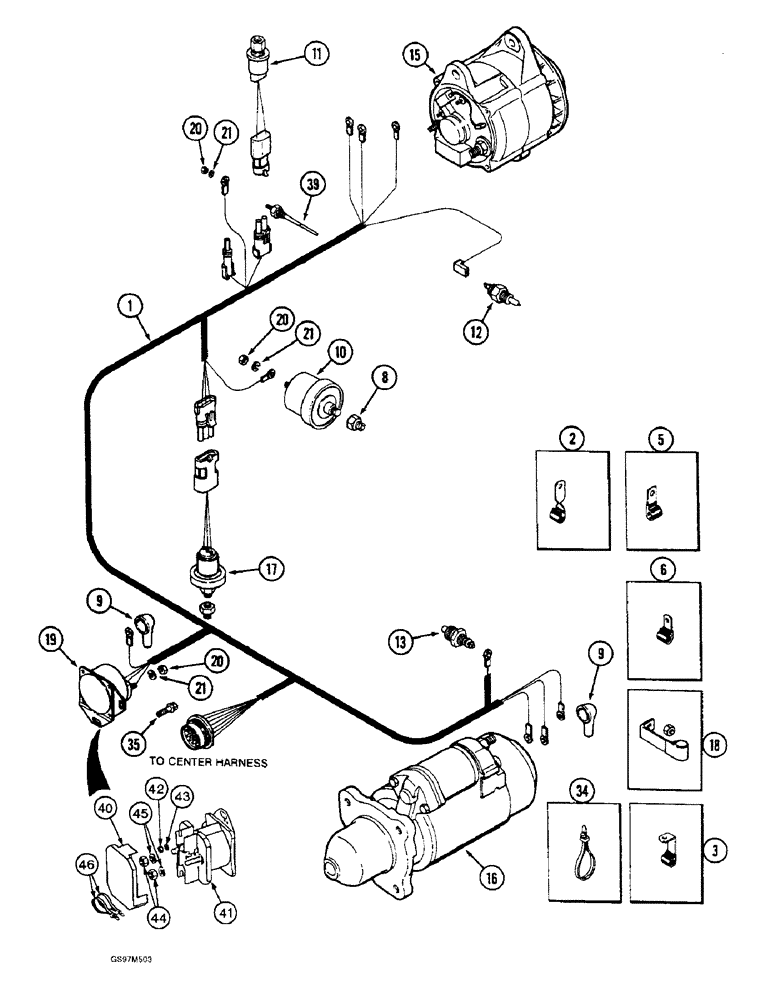

Запчасти Case IH 1660 (4-04) - ENGINE HARNESS, P.I.N. JJC0103800 AND AFTER (06) - ELECTRICAL

1

100827A2

HARNESS

HARNESS - engine

1шт.

2

363660R1

CLIP

CLIP - engine block, rear

1шт.

3

515-30222

CLAMP,7/8", 1/2" Bolt

CLAMP, , P-type 7/8", 1/2" Bolt

2шт.

5

362123R1

CLIP

CLIP - engine harness

3шт.

6

370383R1

CLIP

CLAMP - long

1шт.

8

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

REDUCER - pipe, 3/4 male x 1/2 inch female

1шт.

9

399470R1

BOOT

BOOT - cable

2шт.

10

1341330C2

TRANSMITTER

SWITCH - sender, oil pressure

1шт.

11

234921A1

SENSOR

SWITCH - high pressure

1шт.

12

1345488C3

TEMPERATURE SWITCH

SWITCH - high temperature

1шт.

13

121756C2

SENSOR

SENSOR - coolant temperature

1шт.

15

91448C2

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, parts list Figure 4-68

1шт.

15

91448C2GV

ALTERNATOR

Value, 110 Amp

1шт.

16

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure 4-70

1шт.

16

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

16

AC187728

CORE-STARTER

Return Part Number

1шт.

16

A187728GV

STARTER MOTOR

Value

1шт.

17

1964960C1

PRESSURE SWITCH

SWITCH - pressure header lift

1шт.

18

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

CLAMP, , Front cover (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

1шт.

19

A39079

SOLENOID

SOLENOID - magnetic relay, no longer available, order kit 178149A1 below

1шт.

20

225-14210

NUT,#10-32

NUT, #10-32

3шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

34

702093C1

CABLE TIE

CABLE STRAP STRAP - tie

4шт.

35

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

39

279476A1

SENSOR

SENSOR - level, coolant (Replaces sensor A145513)

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, Includes: Ref. 40 - 46

1шт.

40

178148A1

COVER

COVER - solenoid switch

1шт.

41

183038A1

SOLENOID

SWITCH - solenoid with barrier, order kit

1шт.

42

225-14210

NUT,#10-32

NUT, #10-32

1шт.

43

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

44

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

2шт.
