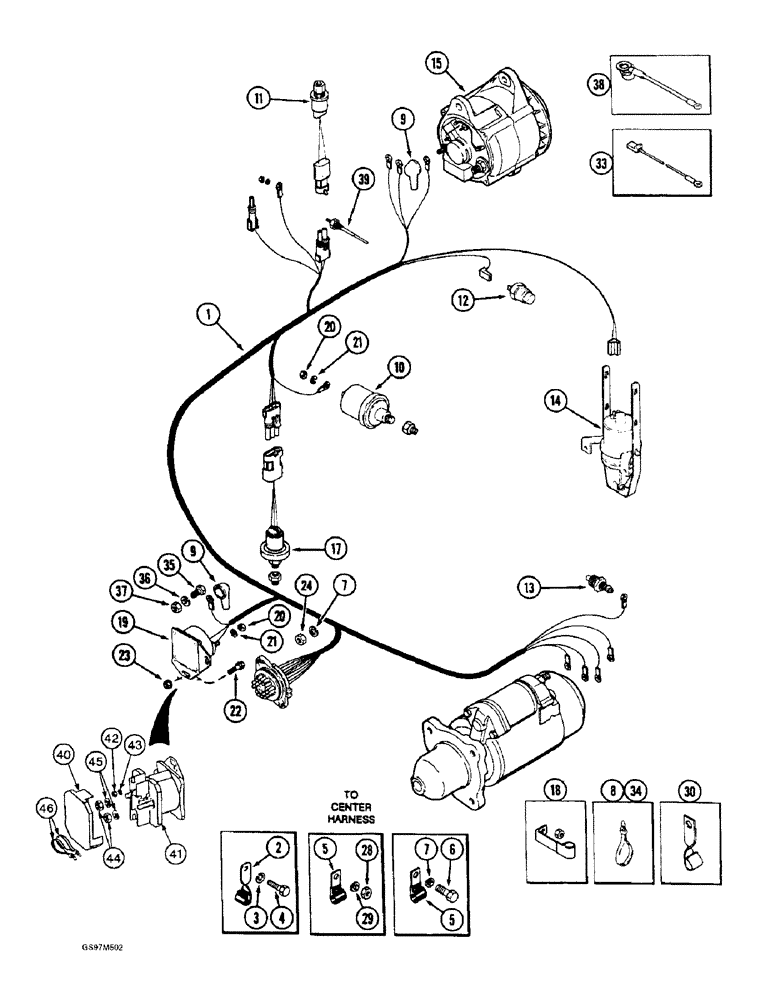

Запчасти Case IH 1660 (4-02) - ENGINE HARNESS, PRIOR TO P.I.N. JJC0103800 (06) - ELECTRICAL

1

1983384C1

HARNESS

- engine, P.I.N. JJC0039262 and after

1шт.

1

1964970C4

HARNESS

- engine, prior to P.I.N. JJC0039262

1шт.

2

363660R1

CLIP

- engine block, rear

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

5

362123R1

CLIP

- engine harness

3шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

702093C1

CABLE TIE

STRAP - tie

4шт.

9

399470R1

BOOT

- cable

2шт.

10

1341330C2

TRANSMITTER

SWITCH - sender, oil pressure (Replaces switch 130707C4)

1шт.

11

234920A1

SWITCH, PRESSURE

SWITCH - high pressure (Replaces switch 111266C1)

1шт.

12

1345488C3

TEMPERATURE SWITCH

SWITCH - high temperature (Replaces switch 130861C1)

1шт.

13

121756C2

SENSOR

- coolant temperature

1шт.

14

REF

INSTRUCTION

SOLENOID - ether injection, parts list Figure 2-30

1шт.

15

91448C2

ALTERNATOR

ASSEMBLY - engine, parts list Figure 4-68

1шт.

15

91448C2GV

ALTERNATOR

Value

1шт.

17

1964960C1

PRESSURE SWITCH

SWITCH - pressure header lift

1шт.

18

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Front cover (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

1шт.

19

A39079

SOLENOID

- magnetic relay, no longer available, order kit 178149A1 below (Replaces solenoid 121613C1)

1шт.

20

225-14210

NUT,#10-32

3шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

A187863

SOLENOID SWITCH

SWITCH ASSEMBLY - starter solenoid, parts list Figure 4-72

1шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

1шт.

33

1977185C1

HARNESS

- alternator

1шт.

Used with P.I.N. JJC0026911 through JJC0026918.

1шт.

34

306132C1

CABLE TIE,14.5" L

STRAP - tie, 356 mm (14 inch) long

1шт.

35

313-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

325-104

NUT,1/4"-20, G5

- hex, 1/4 inch NC

1шт.

38

1977135C1

HARNESS

- alternator output

1шт.

Used with P.I.N. JJC0026911 through JJC0026918.

1шт.

39

279476A1

SENSOR

- level coolant (Replaces sensor A145513)

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, Includes: Ref. 40 - 46

1шт.

40

178148A1

COVER

- solenoid switch

1шт.

41

183038A1

SOLENOID

SWITCH - solenoid with barrier, order kit

1шт.

42

225-14210

NUT,#10-32

1шт.

43

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
