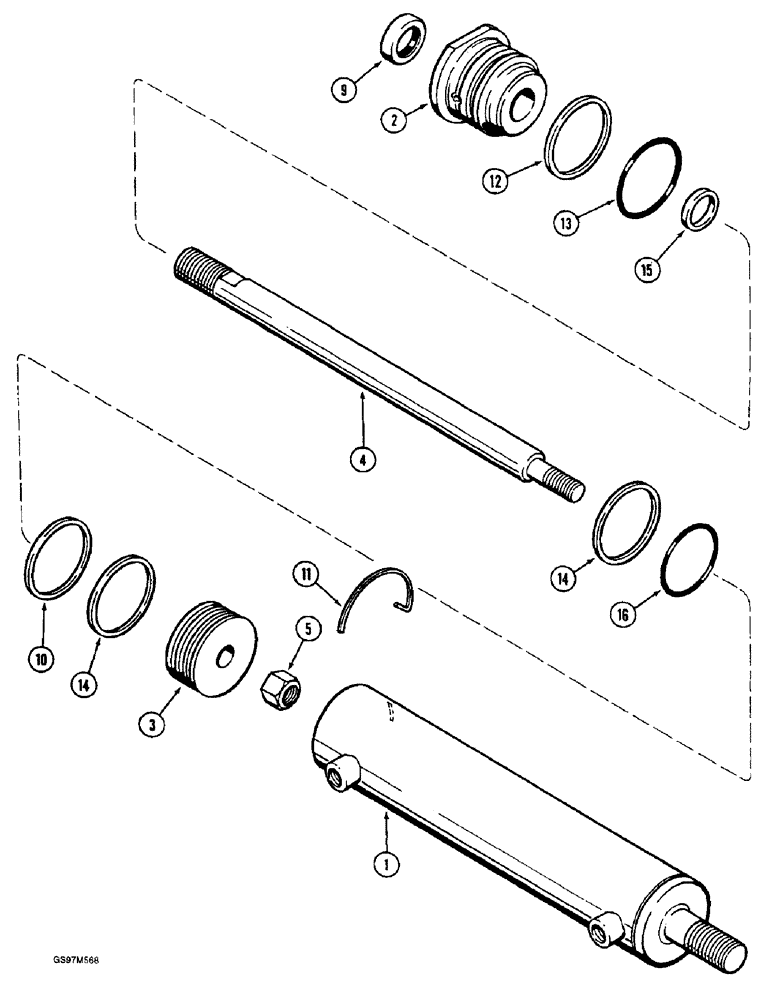

Запчасти Case IH 1660 (5-58) - STEERING CYLINDER, POWER GUIDE AXLE (04) - STEERING

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, 57 (2-1/4) ID x 229 mm (9 inch) stroke, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 127913C93

1шт.

2

127919C1

GLAND

- cylinder, front

1шт.

3

127921C1

PISTON

- cylinder

1шт.

4

127920C2

PISTON ROD

ROD - piston

1шт.

5

232-46310

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

73661C92

SEAL KIT

KIT - seal, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod, order kit 73661C92

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod, order kit 73661C92

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retaining, order kit 73661C92

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - back up, O-ring, order kit 73661C92

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - head, 2-1/8 x 2-1/2 inch, order kit 73661C92

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston, order kit 73661C92

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston, teflon, order kit 73661C92

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston, 2-1/16 x 2-1/4 inch, order kit 73661C92

1шт.
