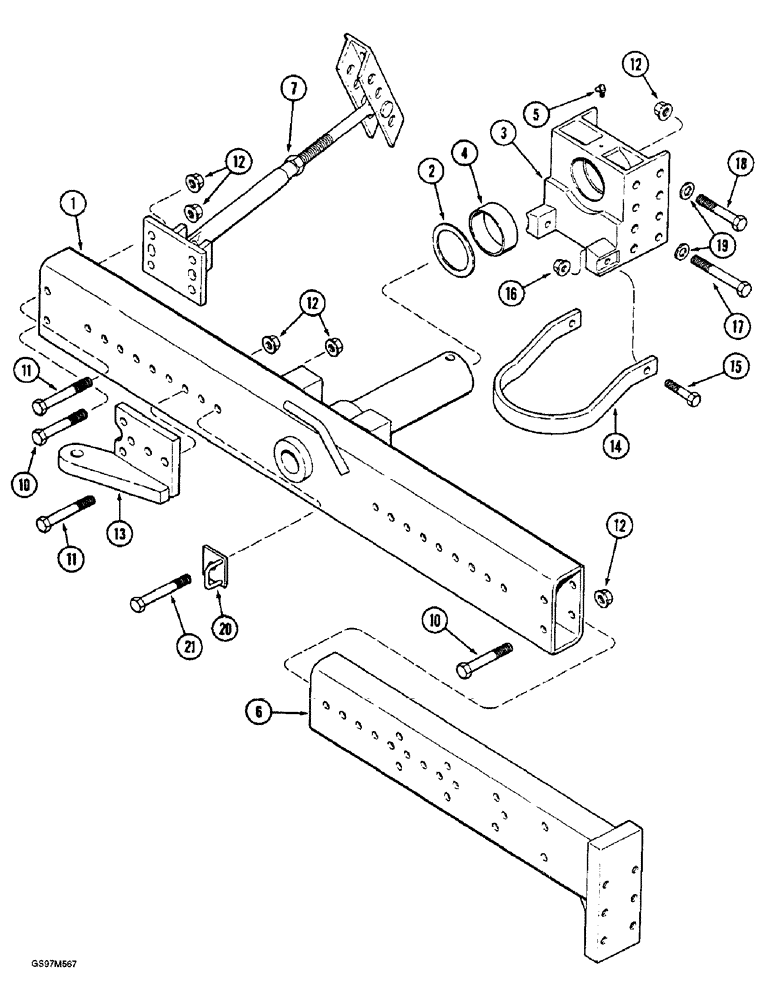

Запчасти Case IH 1660 (5-56) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE (04) - STEERING

1

1968991C1

AXLE

- adjustable, 2743 to 3658 mm (108 to 144 inch)

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special, pivot shaft

4шт.

3

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle

2шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

6

1968992C1

AXLE

EXTENSION - axle

2шт.

7

REF

INSTRUCTION

SUPPORT - steering, axle, See Figure 5-54, REF 21 -31

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

10шт.

11

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

12

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

23шт.

13

1968993C1

SUPPORT

- steering bracket

1шт.

14

1979114C1

STRAP

- tow

1шт.

15

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

16

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

2шт.

17

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

18

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

20

195618A1

CLAMP

- special, 1-1/2 inch ID, cylinder (Replaces clamp 1979120C1)

1шт.

21

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.
