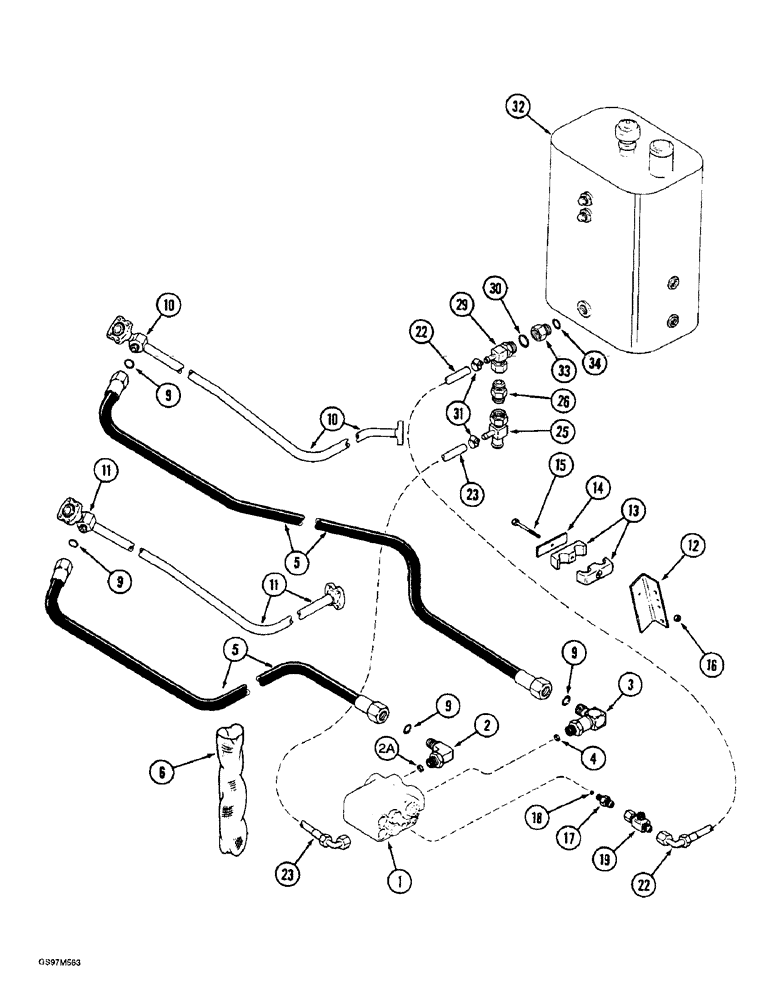

Запчасти Case IH 1660 (5-49A) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, P.I.N. JJC0047918 AND AFTER (04) - STEERING

1

1978000C1

VALVE

ASSEMBLY - selector, parts list Figure 5-60

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 2A

1шт.

2a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90º long, 1-3/16-12 face seal x 1-1/16-12 inch Adj O-ring boss, Incl Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

1989218C1

HOSE

- valve pressure, 1965 mm (77-3/8 inch) long

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE - nylon, 60 (2-3/8) ID x 1219 mm (48 inch) long

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

10

1541756C2

HYD TUBE

TUBE - forward pressure

1шт.

11

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE - reverse pressure

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

1шт.

14

1324469C1

PLATE

- clamp, hose

1шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

1шт.

16

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 18

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

22

1957283C3

HOSE

- housing drain, 13 (1/2) ID x 3404 mm (134 inch) long

1шт.

23

1979706C1

HOSE

- housing drain, 3660 mm (144-3/32 inch) long

1шт.

25

1979655C1

TEE

- wheel motor flush

1шт.

26

1343558C1

VALVE

- bypass, power guide axle

1шт.

29

1979760C1

TEE

- return

1шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

31

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

2шт.

32

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic, parts list page Figure 8-002 or 8-004

1шт.

33

1979767C1

ADAPTER

- special, 1-1/16 O-ring boss x 1-5/16 inch female PT, Includes: Ref. 34

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
