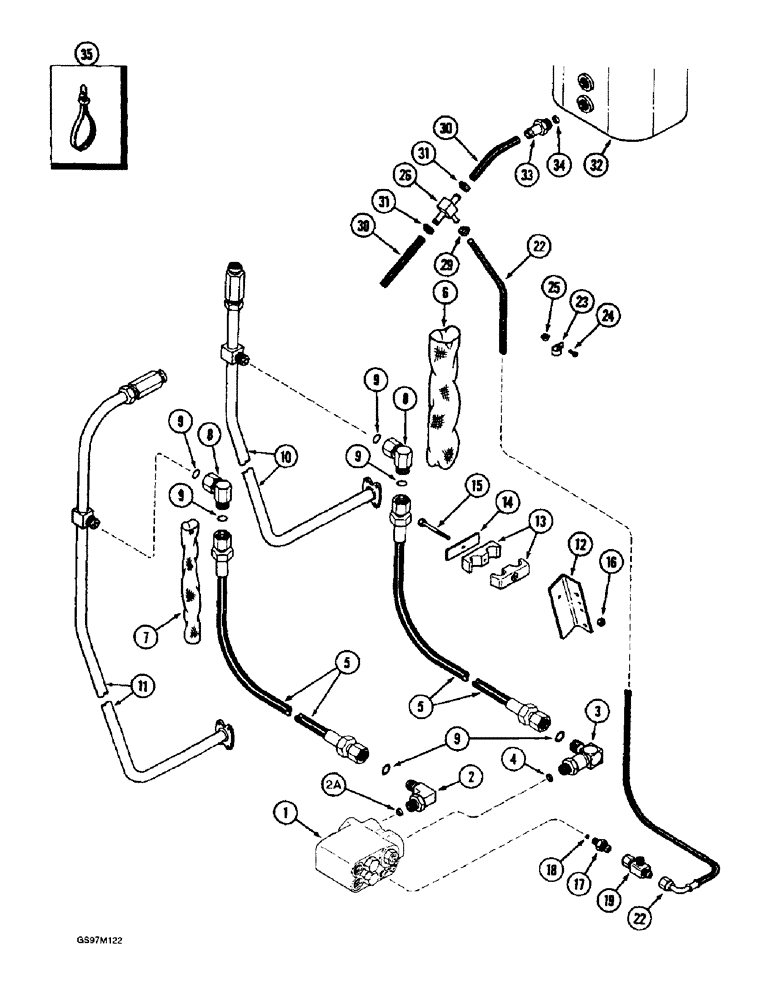

Запчасти Case IH 1660 (5-48) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0047918 (04) - STEERING

1

1978000C1

VALVE

ASSEMBLY - selector, parts list Figure 5-60

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 2A

1шт.

2a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 39/64 ID x 7/64 inch wide

1шт.

3

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90º long, 1-3/16-12 face seal x 1-1/16-12 inch Adj O-ring boss, Incl Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

1979162C1

HOSE ASSY.

HOSE ASSEMBLY - pressure, valve, 2350 mm (92-1/2 inch) long

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE - nylon, 60 (2-3/8) ID x 1219 mm (48 inch) long

1шт.

7

1970109C1

HOSE

SLEEVE - nylon, 40 (1-1/2) ID x 1219 mm (48 inch) long

1шт.

8

1979168C1

ELBOW

- 90 degree special

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

10

1979185C2

PIPE

TUBE - pressure, forward drive

1шт.

11

1979172C1

TUBE ASSY.

TUBE - pressure, reverse drive

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

2шт.

14

1324469C1

PLATE

- clamp, hose

2шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

2шт.

16

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 18

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

22

1957282C2

HYDRAULIC HOSE

2410 mm, Drain

1шт.

23

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type, Closed coated 13/16", Insul, 3/8" Bolt

1шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

26

1957288C1

FITTING

TEE - return hose, 1 x 1 x 1/2 inch barb end

1шт.

29

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter, includes screw, Type F

1шт.

30

REF

INSTRUCTION

HOSE - return, 215 mm (8-15/32 inch) long, cut from bulk hose 364361C1 below

2шт.

31

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

4шт.

32

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic, parts list Figure 8-002 or 8-004

1шт.

33

470420R11

FITTING

CONNECTOR - hydraulic, 1 - 1/16 thread x 3/4 inch barb end

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

35

702093C1

CABLE TIE

STRAP - tie

1шт.

364361C1

HOSE

- bulk, 25 (1) ID x 15240 mm (600 inch) long

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
