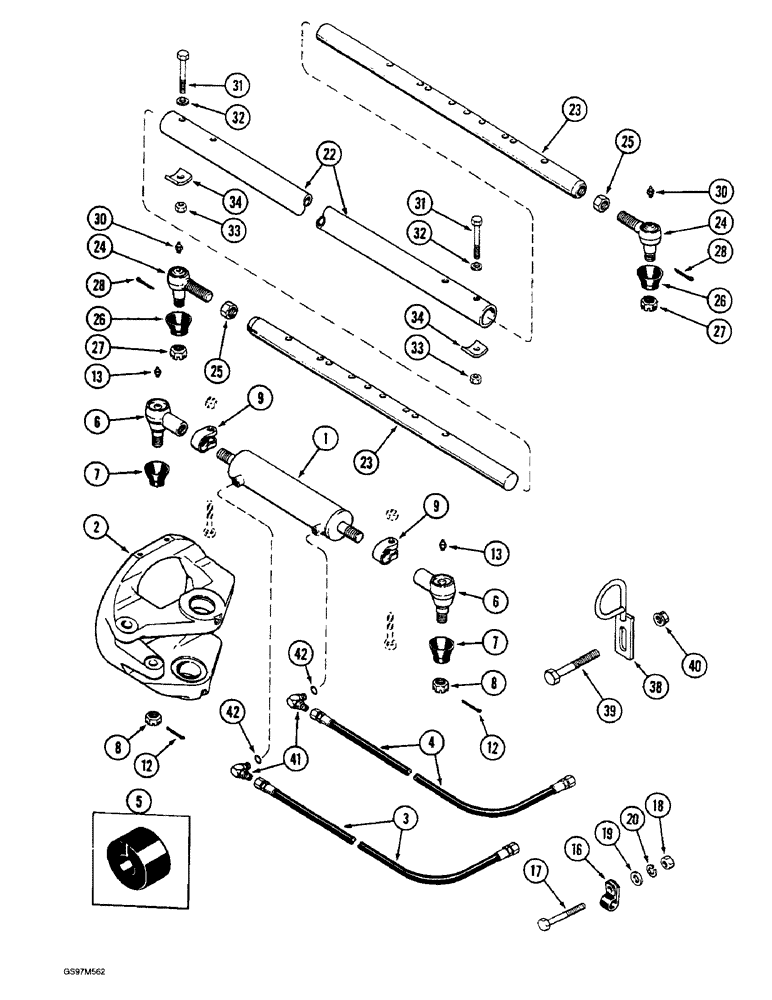

Запчасти Case IH 1660 (5-46) - STEERING CYLINDER AND TIE ROD, POWER GUIDE AXLE (04) - STEERING

1

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list Figure 5-58

1шт.

2

1970138C1

HOUSING

- king pin, parts list Figure 5-52

2шт.

3

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

- 1727 mm (68 inch) long

1шт.

4

183920C1

HOSE ASSY.

HOSE - cylinder, 1956 mm (77 inch) long

1шт.

5

167955C2

SEAL

GROMMET - steering cylinder hoses

1шт.

6

186140C91

BALL JOINT

END ASSEMBLY - steering cylinder, ball joint, Includes: Ref. 7 - 9

2шт.

7

110373R1

DUST CAP

SEAL - end, cylinder, ball joint

1шт.

8

429-1314

NUT,7/8"-14, G8

NUT - hex, slotted, 7/8 inch NF, grade 8

1шт.

9

446308C91

CLAMP

- ball joint

1шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

16

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

17

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

19

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

1970102C1

TUBE

- tie rod, outer

1шт.

23

1970103C1

TUBE,1.062" ID, 1.625" OD, 33" Length

- tie rod, inner

2шт.

24

1968998C1

BALL JOINT

END - tie rod

2шт.

25

1970391C1

JAM NUT

- hex, jam, special, 1-1/8 inch NF

2шт.

26

110373R1

DUST CAP

SEAL - end, cylinder, ball joint

2шт.

27

429-1314

NUT,7/8"-14, G8

NUT - hex, slotted, 7/8 inch NF, grade 8

2шт.

28

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

31

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

4шт.

32

1970104C1

SPACER

- tube, tie rod

4шт.

33

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

34

1970101C1

CLAMP

- centering, tie rod

4шт.

38

1970383C1

GUIDE

- hose

4шт.

39

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

4шт.

40

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

4шт.

41

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss, Includes: Ref. 42

2шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
