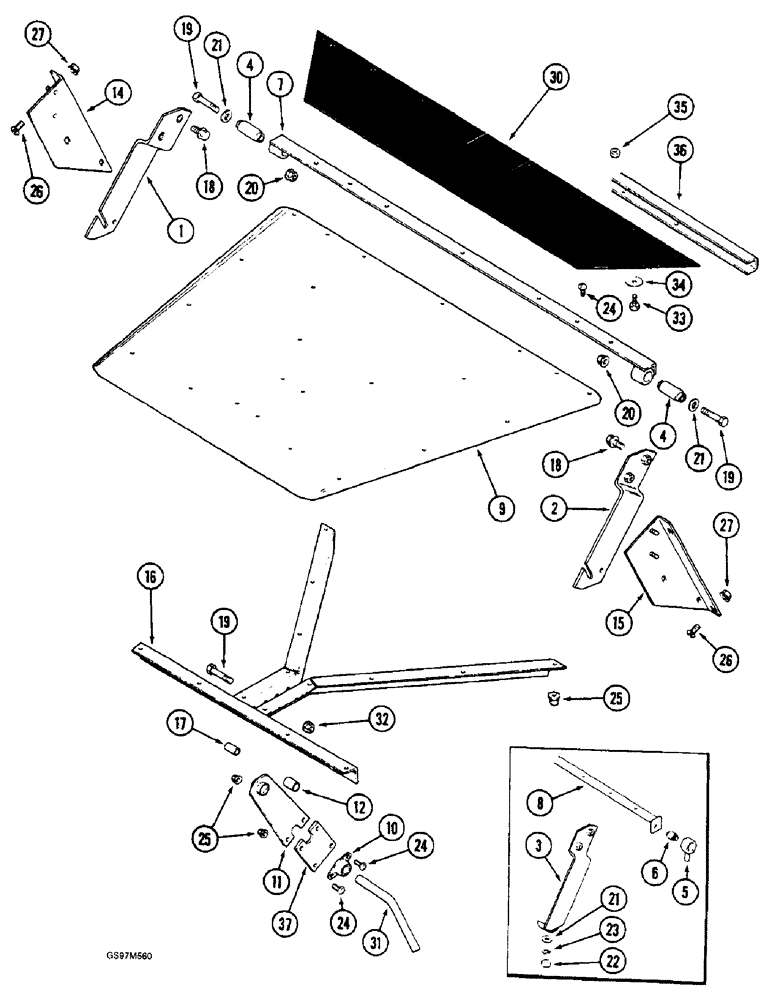

Запчасти Case IH 1660 (5-42) - STEERING AXLE SHIELD, OSCILLATING (04) - STEERING

1

1979621C1

ARM

- shield, left-hand

1шт.

P.I.N. JJC0040383 and after.

1шт.

2

1979622C1

ARM ASSY.

ARM - shield, right-hand

1шт.

P.I.N. JJC0040383 and after.

1шт.

3

1302778C5

BRACKET

ARM - shield, left-hand

1шт.

Prior to P.I.N. JJC0040383.

1шт.

3

1302779C5

BRACKET

ARM - shield, right-hand, shown

1шт.

Prior to P.I.N. JJC0040383.

1шт.

4

1330324C1

BUSHING

- front hanger

2шт.

P.I.N. JJC0040383 and after.

1шт.

5

181342C91

END ASSY.

END ASSEMBLY - axle, Includes: Ref. 6

2шт.

6

564103R91

COMPOSITE RING

BUSHING - axle end

2шт.

7

1979625C2

SUPPORT

- axle shield, includes: bushing P/N 1330324C1, Ref. 4

1шт.

P.I.N. JJC0040383 and after.

1шт.

8

1302765C1

SUPPORT ASSY.

SUPPORT - axle shield

1шт.

Prior to P.I.N. JJC0040383.

1шт.

9

1302762C1

SHIELD

- axle

1шт.

10

1345189C1

BEARING COVER,19.06mm ID

- pivot

1шт.

P.I.N. JJC0040383 and after.

1шт.

10

A63366

SPHERICAL BEARING,19mm ID

BEARING - pivot

1шт.

Prior to P.I.N. JJC0040383.

1шт.

11

1302578C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - shield pivot, Includes: Ref. 12

1шт.

12

289588R1

BUSHING

- shield pivot support

1шт.

14

1302044C2

SUPPORT

- hood extension, left-hand

1шт.

15

1302045C2

SUPPORT

- hood extension, right-hand

1шт.

16

1302550C1

SUPPORT ASSY.

SUPPORT - axle shield

1шт.

17

1302776C1

BUSHING,13.46mm ID x 19.05mm OD x 30.23mm L

- pivot link

1шт.

18

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

4шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

3шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

25шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

29шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

30

1302784C1

STRIP

- chaffer extension flap

1шт.

31

182922C1

ROD

- shield support, grain combine only

1шт.

32

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

1шт.

33

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

34

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch (Replaces washer 106969R1)

6шт.

35

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.

36

REF

INSTRUCTION

SIEVE - chaffer, See Figure 9B-50

1шт.

37

1312009C1

LINK

- pivot, if used

1шт.
