Запчасти Case IH 1660 (5-40) - STEERING AXLE SHIELD, STATIONARY (04) - STEERING

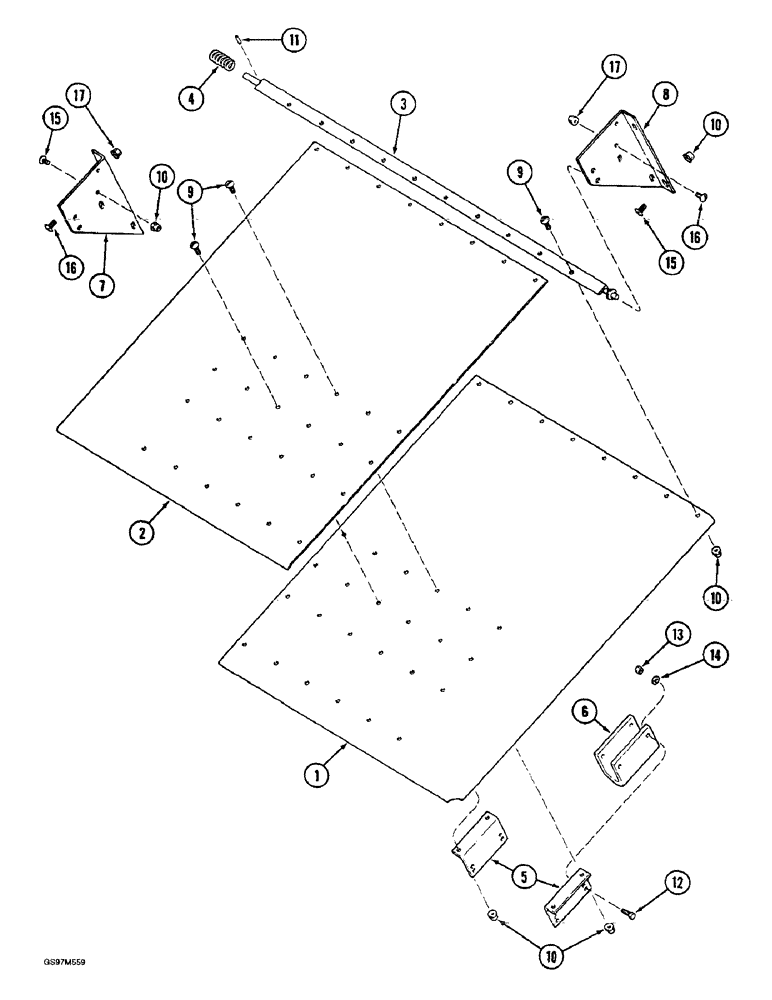

Схема запчастей Case IH 1660 - (5-40) - STEERING AXLE SHIELD, STATIONARY (04) - STEERING
12
17
2
14
15
1
16
10
13
9
10
5
8
15
10
11
7
17
10
4
3
9
16
6

Артикул

Название

Примечание

Количество

1

195437C2

SHIELD

- axle, left-hand

1шт.

2

195438C2

SHIELD

- axle, right-hand

1шт.

3

195450C2

SUPPORT ASSY.

HINGE - axle shield

1шт.

4

203942C1

SPRING

- shield pivot

1шт.

5

183093C1

BRACKET

ANGLE - shield support

2шт.

6

183094C1

CUSHION

SUPPORT - axle shield

1шт.

7

186912C1

SUPPORT

- separator hood, left-hand

1шт.

8

186913C1

SUPPORT

- separator hood, right-hand

1шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

20шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

24шт.

11

38-1814

LOCK PIN,1/8" x 7/8", Slotted

Pin, 1/8" x 7/8", Slotted

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

13

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

15

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

4шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

Выбрано товаров: 17
