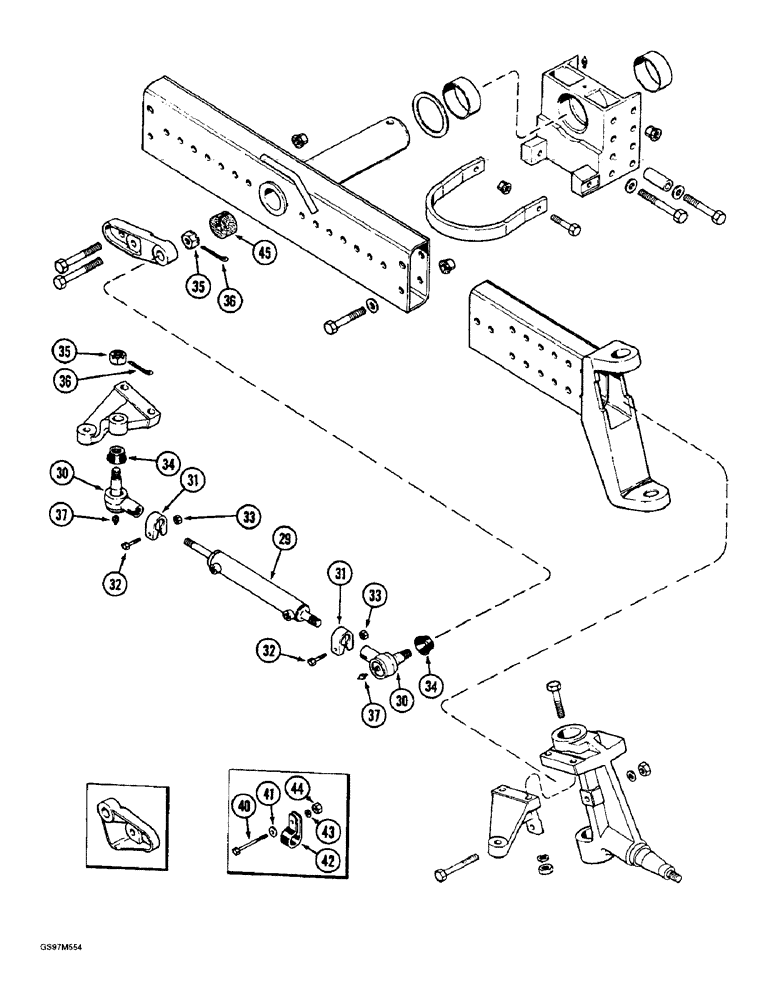

Запчасти Case IH 1660 (5-28) - STEERING AXLE, ADJUSTABLE, RICE COMBINE (04) - STEERING

29

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - tie, parts list Figure 5-58

1шт.

30

181335C91

BALL JOINT

END ASSEMBLY - steering cylinder, Includes: Ref. 31 - 35

2шт.

31

446308C91

CLAMP

ASSEMBLY - steering cylinder end, Includes: Ref. 32 & 33

1шт.

32

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

33

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

34

110373R1

DUST CAP

SEAL - end, cylinder

1шт.

35

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

2шт.

36

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

40

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

41

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

42

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

For steering hoses on 2337 to 3048 mm (92 to 120 inch) axle only.

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

For steering hoses on 2337 to 3048 mm (92 to 120 inch) axle only.

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

For steering hoses on 2337 to 3048 mm (92 to 120 inch) axle only.

1шт.

45

167955C2

SEAL

GROMMET

1шт.

For steering hoses on 2337 to 3048 mm (92 to 120 inch) axle only.

1шт.
