Запчасти Case IH 1660 (5-26) - STEERING AXLE, ADJUSTABLE, RICE COMBINE (04) - STEERING

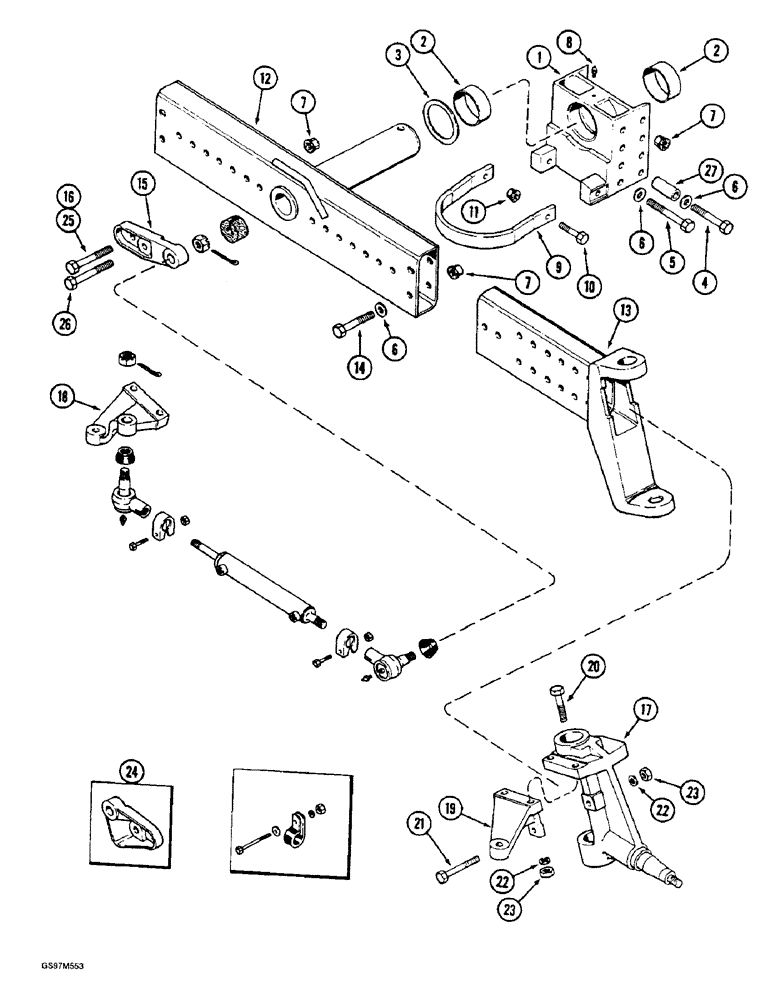

Схема запчастей Case IH 1660 - (5-26) - STEERING AXLE, ADJUSTABLE, RICE COMBINE (04) - STEERING
6
20
7
7
17
2
8
2
7
11
25
27
19
4
23
13
10
26
9
24
1
22
3
22
8
18
12
21
5
16
14
23
15
6

Артикул

Название

Примечание

Количество

1

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

2шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

1шт.

4

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

6шт.

5

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

6

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

11шт.

7

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

16шт.

8

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

9

1302625C1

CHANNEL

STRAP - tow

1шт.

10

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

Use with 1727 to 2235 mm (68 to 88 inch) axle.

1шт.

10

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

Use with 2337 to 3048 mm (92 to 120 inch) axle

1шт.

11

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

2шт.

12

182797C3

AXLE

- adjustable, 1727 to 2235 mm (68 to 88 inch), if used

1шт.

12

1302522C2

STEERING AXLE

AXLE - adjustable, 2337 to 3048 mm (92 to 120 inch)

1шт.

13

186595C2

EXTENSION

axle

2шт.

Use with 1727 to 2235 mm (68 to 88 inch) axle.

1шт.

13

186045C4

AXLE

2шт.

Use with 2337 to 3048 mm (92 to 120 inch) axle

1шт.

14

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

6шт.

15

186598C1

BRACKET

ANCHOR - steering cylinder, 1727 to 2235 mm (68 to 88 inch axle), if used

1шт.

16

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

2шт.

17

REF

INSTRUCTION

KNUCKLE ASSEMBLY - steering, parts list Figure 5-38

2шт.

18

186641C1

LEVER

ARM - steering, left-hand

1шт.

19

186639C1

LEVER

ARM - steering, right-hand

1шт.

20

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

21

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

23

429-1010

NUT,5/8"-11, G8

6шт.

24

133319A1

SUPPORT

ANCHOR steering cylinder Replaces: anchor P/N 186574C1

1шт.

Use with 2337 to 3048 mm (92 to 120 inch) axle

1шт.

25

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

26

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.

27

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

8шт.
