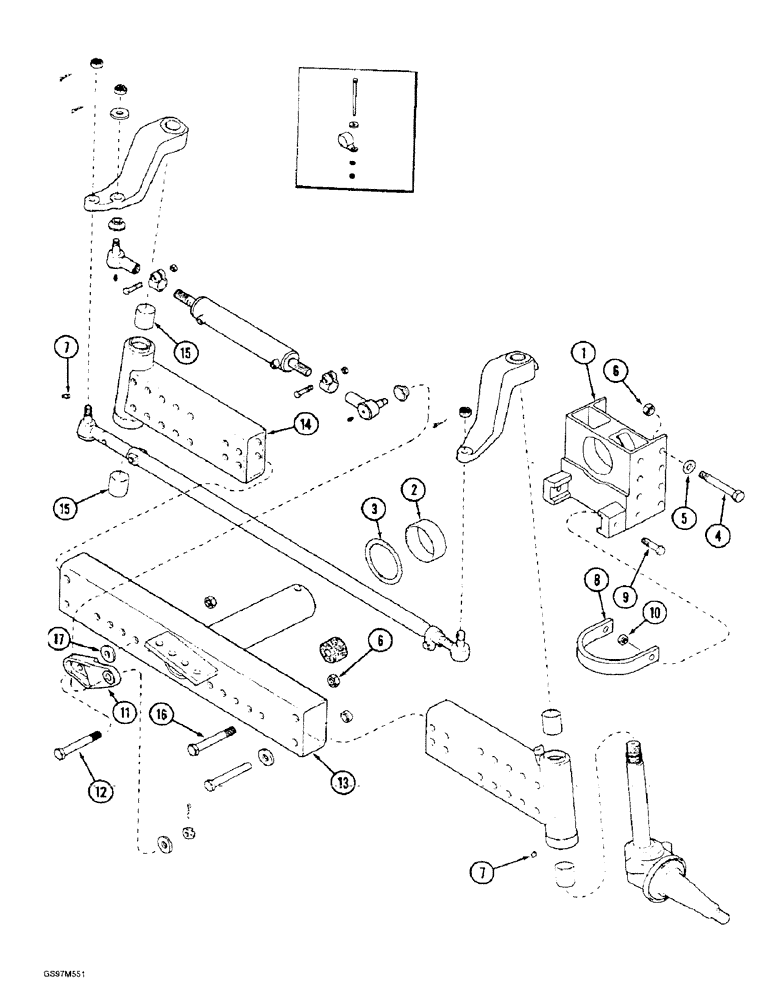

Запчасти Case IH 1660 (5-22) - STEERING AXLE, ADJUSTABLE, WITHOUT POWER GUIDE AXLE, CORN AND GRAIN COMBINE (04) - STEERING

1

177749C92

SUPPORT ASSY.

SUPPORT - axle pivot

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

1

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 2

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

1шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

1шт.

4

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

4

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

1шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

8

196084C2

CHANNEL

STRAP - tow

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

8

1302625C1

CHANNEL

STRAP - tow

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

9

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

9

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

10

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

2шт.

11

193917C1

ANCHOR

- steering cylinder

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

11

182782C1

ANCHOR

- steering cylinder

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

12

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

12

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

1шт.

All except 2337 to 3048 mm (92 to 120 inch) axles.

1шт.

13

182800C2

AXLE

- adjustable, grain, 1422 to 1727 mm (56 to 68 inch)

1шт.

13

1302523C2

AXLE

- adjustable, corn, 1422 to 1727 mm (56 to 68 inch)

1шт.

13

182799C2

AXLE

- adjustable, grain, 1702 to 2311 mm (67 to 91 inch)

1шт.

13

1302520C2

AXLE

- adjustable, corn, 1702 to 2311 mm (67 to 91 inch)

1шт.

13

242643A2

AXLE

- adjustable, grain, 2337 to 3048 (92 to 120 inch) (Replaces axle 186317C2)

1шт.

13

1302522C3

CENTER AXLE

AXLE - adjustable, corn, 2337 to 3048 (92 to 120 inch)

1шт.

14

178488C91

EXTENSION

ASSEMBLY - axle, left-hand (56 to 68 inch axle), Includes: Ref. 15

1шт.

14

177763C91

EXTENSION ASSY.

EXTENSION ASSEMBLY- axle, left-hand, 1702 to 2311 mm (67 to 91 inch), Includes: Ref. 15

1шт.

14

183454C93

EXTENSION

ASSEMBLY - axle, left-hand, 2337 to 3048 mm (92 to 120 inch), Includes: Ref. 15

1шт.

15

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindle

2шт.

16

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

1шт.

17

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch, for 1422 to 1727 mm (56 to 68) inch axle only

1шт.
