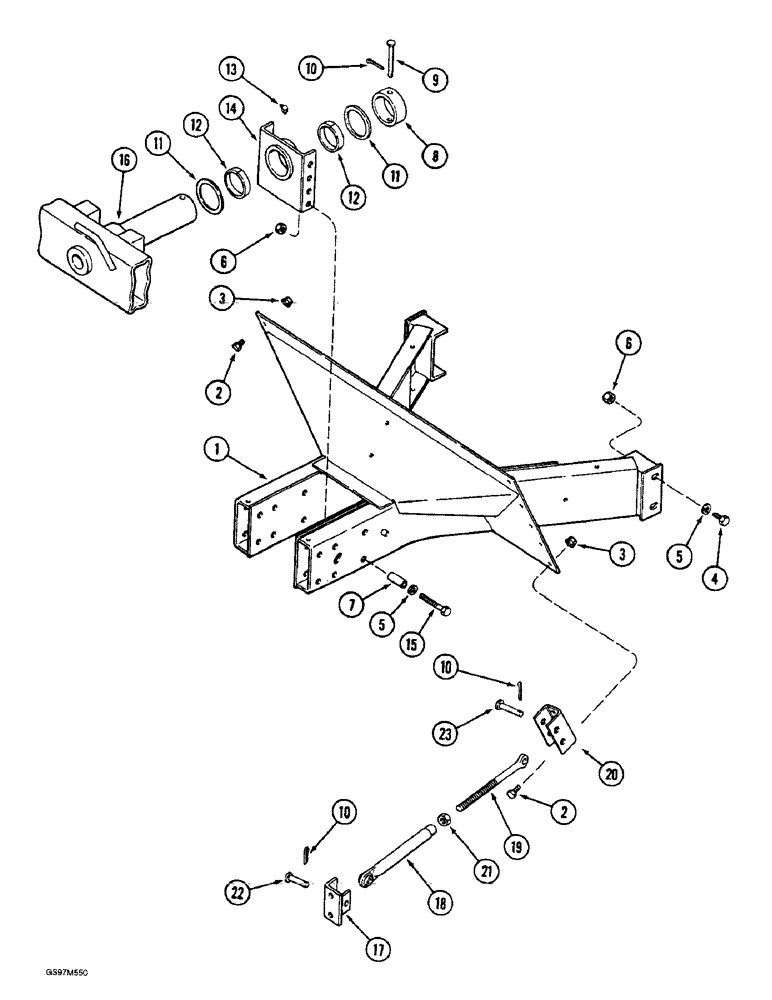

Запчасти Case IH 1660 (5-20) - STEERING AXLE SUPPORT, ADJUSTABLE AXLES (04) - STEERING

1

1308816C2

SUPPORT

- steering axle

1шт.

1

1315446C2

SUPPORT

- steering axle, heavy duty, Australia only

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

10шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

8шт.

7

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

12шт.

8

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

- axle pivot

1шт.

9

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

PIN - headed, 3/4 x 5-1/2 inch, grade 2

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

2шт.

12

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING - axle pivot

2шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

14

182792C96

SUPPORT

- pivot, front, front, Inc. 12

1шт.

15

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

16

REF

INSTRUCTION

AXLE - steering, See Figure 5-22

1шт.

17

183494C1

SUPPORT ASSY.

BRACKET - adjusting rod, rear

2шт.

Used with 2337 to 3048 mm (92 to 120) inch and 2743 to 3048 mm (108 to 120 inch) adjustable axles only.

1шт.

18

181444C1

TIE-ROD,1" - 8

BODY - adjusting rod, rear

2шт.

Used with 2337 to 3048 mm (92 to 120) inch and 2743 to 3048 mm (108 to 120 inch) adjustable axles only.

1шт.

19

181442C3

EYEBOLT,1" - 8 x 381mm

ROD - adjusting, front

2шт.

Used with 2337 to 3048 mm (92 to 120) inch and 2743 to 3048 mm (108 to 120 inch) adjustable axles only.

1шт.

20

1541603C1

SUPPORT

BRACKET - adjusting rod, front (Replaces bracket 183491C1)

2шт.

Used with 2337 to 3048 mm (92 to 120) inch and 2743 to 3048 mm (108 to 120 inch) adjustable axles only.

1шт.

21

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

22

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

PIN - headed, 7/8 x 3-1/2 inch, grade 2

2шт.

23

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN - headed, 7/8 x 3 inch

2шт.
