Запчасти Case IH 1660 (5-18) - STEERING TIE RODS, NON-ADJUSTABLE AXLE (04) - STEERING

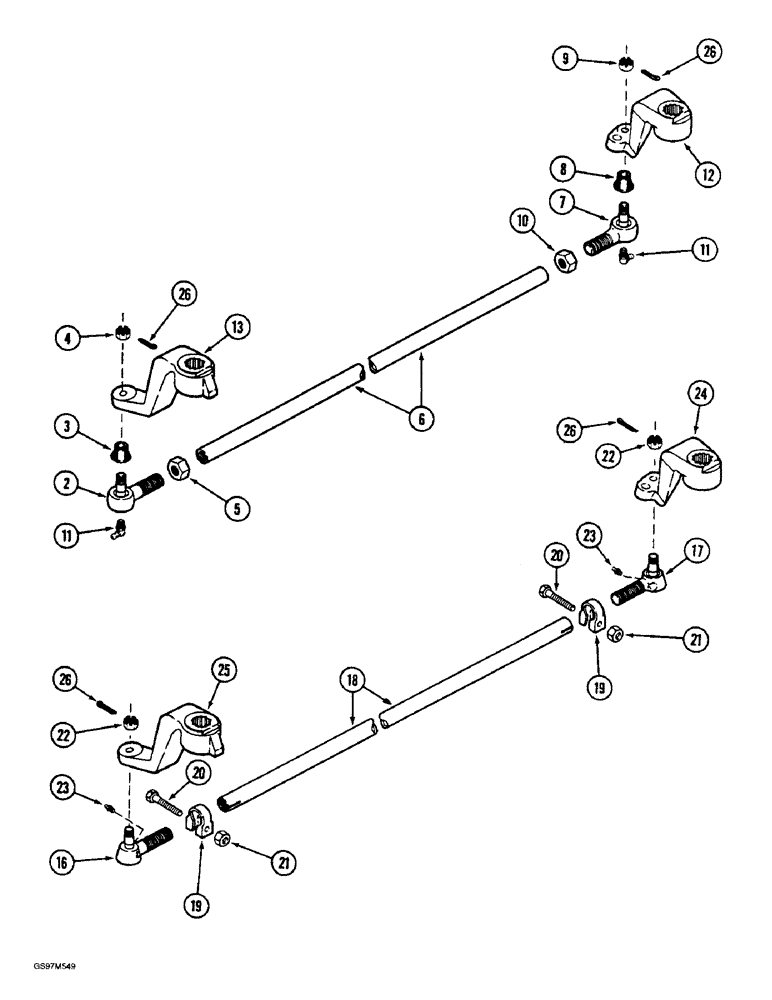

Схема запчастей Case IH 1660 - (5-18) - STEERING TIE RODS, NON-ADJUSTABLE AXLE (04) - STEERING
23
10
3
26
4
21
19
20
23
22
5
26
19
12
6
16
7
11
2
26
24
8
11
18
25
26
9
17
21
22
20
13

Артикул

Название

Примечание

Количество

177774C91

ROD

ASSEMBLY - tie, no longer available, order rod assembly 177772C91 below, Includes: Ref. 2 - 10

1шт.

O & S manufacture. Entire assembly is interchangeable with rod assembly 177772C91. Components of assemblies are not interchangeable. Order parts carefully. For service of complete tie rod, order rod assembly 177772C91.

1шт.

2

379551R92

END ASSY.

END ASSEMBLY - tie rod, right-hand, Includes: Ref. 3 & 4

1шт.

3

A41424

SEAL

- end (Replaces seal 382562R1)

1шт.

4

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

5

374062R1

JAM NUT

NUT - hex lock, tie rod, right-hand thread

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - tie rod, order rod assembly

1шт.

7

180201C91

END

ASSEMBLY - tie rod, left-hand, Includes: Ref. 8 - 10

1шт.

8

A41424

SEAL

- end (Replaces seal 382562R1)

1шт.

9

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

10

374061R1

JAM NUT

- hex lock, tie rod, left-hand thread

1шт.

11

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

12

193911C4

ARM

- steering, left-hand, see Figure 5-16

1шт.

13

193912C3

STEERING ARM

- steering, right-hand, see Figure 5-16

1шт.

177772C91

ROD ASSY.

ROD ASSEMBLY - tie, Includes: Ref. 16 - 21

1шт.

Columbus manufacture. Entire assembly is interchangeable with rod assembly 177774C91. Components of assemblies are not interchangeable. Order parts carefully.

1шт.

16

180203C1

END ASSY.

END - tie rod, right-hand

1шт.

17

180202C1

END ASSY.

END - tie rod, left-hand

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - tie rod, order rod assembly 177772C91

1шт.

19

1300176C1

CLAMP,28.5mm ID

ASSEMBLY - tie rod, Includes: Ref. 20 & 21

2шт.

20

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

21

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

22

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

24

193911C4

ARM

- steering, left-hand, see Figure 5-16

1шт.

25

193912C3

STEERING ARM

- steering, right-hand, see Figure 5-16

1шт.

26

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2", if used

4шт.

26

432-816

COTTER PIN,1/8" x 1"

if used 1/8" x 1"

4шт.

Выбрано товаров: 28
