Запчасти Case IH 1660 (5-14) - STEERING AXLE SUPPORT, NON-ADJUSTABLE AXLE (04) - STEERING

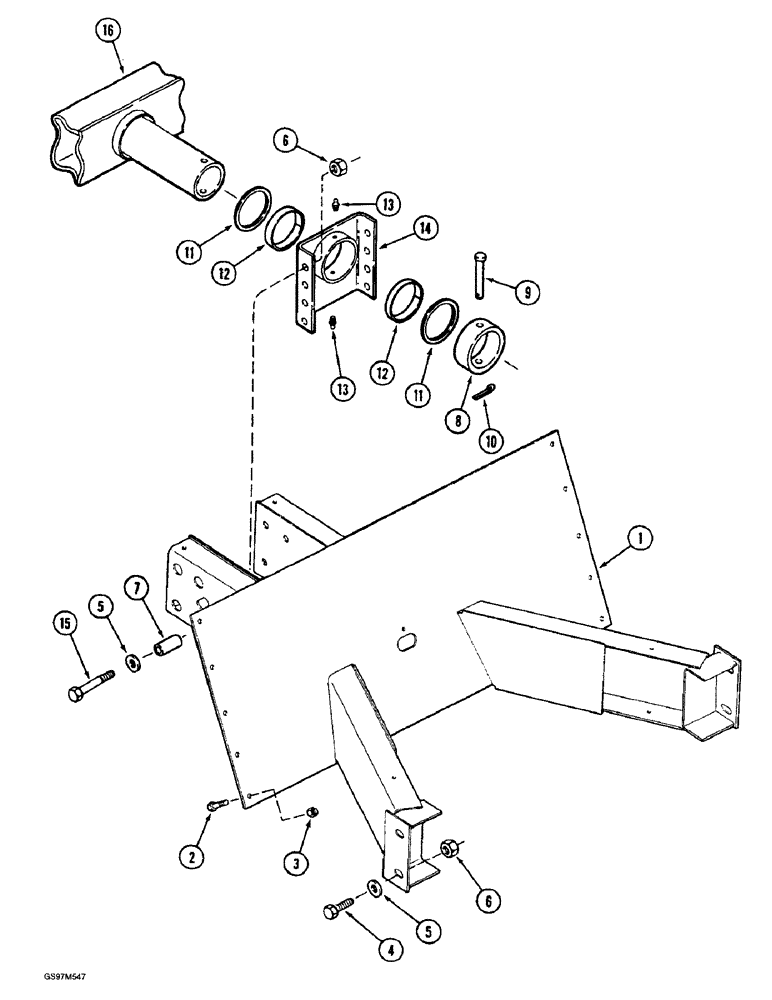

Схема запчастей Case IH 1660 - (5-14) - STEERING AXLE SUPPORT, NON-ADJUSTABLE AXLE (04) - STEERING
1
15
12
6
9
12
5
2
16
11
6
8
7
13
11
3
13
4
5
14
10

Артикул

Название

Примечание

Количество

1

1308816C2

SUPPORT

- steering axle

1шт.

1

1315446C2

SUPPORT

- steering axle, heavy duty, Australia only

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

10шт.

3

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

10шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

8шт.

7

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

12шт.

8

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

- axle pivot

1шт.

9

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

PIN - headed, 3/4 x 5-1/2 inch, grade 2

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

2шт.

12

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING - axle pivot

2шт.

13

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

14

182792C96

SUPPORT

- pivot, front, Inc. 12

1шт.

15

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

16

REF

INSTRUCTION

AXLE - steering, See Figure 5-16

1шт.

Выбрано товаров: 17
