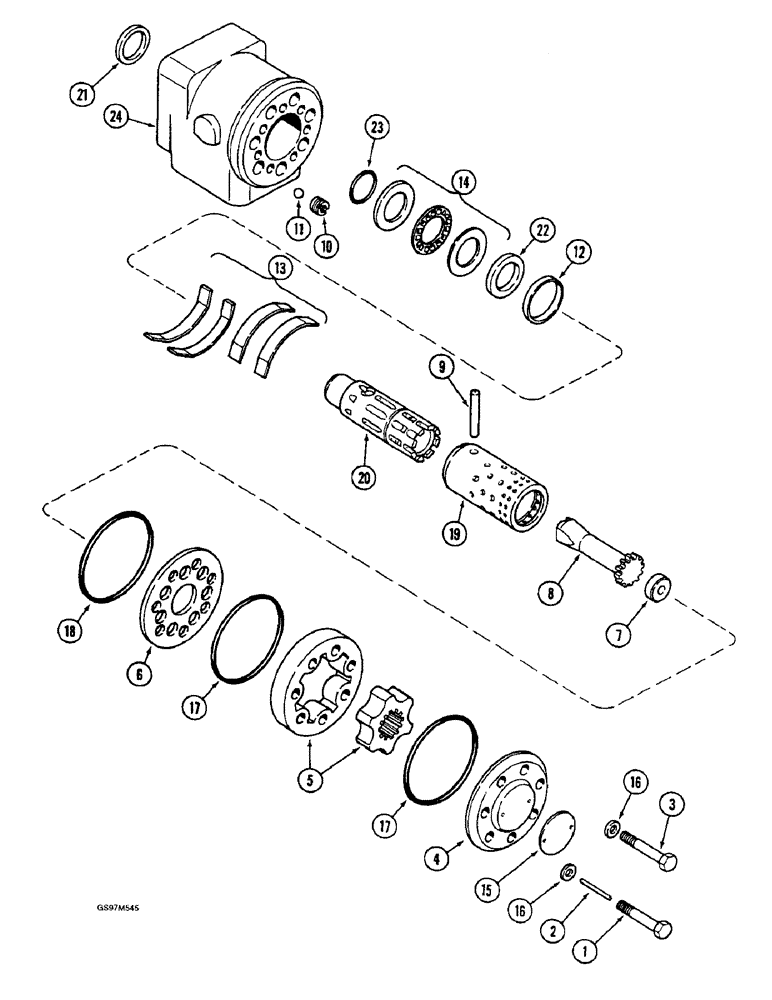

Запчасти Case IH 1660 (5-10) - STEERING HAND PUMP (04) - STEERING
№
Артикул
Название
Примечание
Количество
1272798C93
PUMP, HYDRAULIC
PUMP ASSEMBLY, steering hand, no longer available, order pump assembly P/N 1542690C1, Includes: Ref. 1 - 24
1шт.
Prior to P.I.N. JJC0103800.
1шт.
1542690C1
PUMP
ASSEMBLY, steering hand, Includes: Ref. 1 - 24
1шт.
P.I.N. JJC0103800 and after.
1шт.
1
1272791C1
SCREW
BOLT hex, special
1шт.
Prior to P.I.N. JJC0103800.
1шт.
1
NSS
NOT SOLD SEPARAT
BOLT hex, special
1шт.
P.I.N. JJC0103800 and after.
1шт.
2
3112271R1
PIN, ROLL
PIN - roll, 2 x 32 mm
1шт.
3
3216710R1
SCREW
BOLT - hex, 8 - 1.25 x 40 mm
6шт.
4
3112273R1
COVER
- end (Replaces cover 1272805C1)
1шт.
5
NSS
NOT SOLD SEPARAT
KIT gear, pump, order pump assembly P/N 1542690C1
1шт.
P.I.N. JJC0103800 and after.
1шт.
6
1272803C1
PLATE
- pump
1шт.
7
1272802C1
SPACER
- shaft
1шт.
8
1272797C1
SHAFT
- drive, pump
1шт.
9
1272796C1
CROSS PIN
6 x 41 mm - dowel, special, 6 x 41 mm
1шт.
10
1272793C1
BUSHING
- threaded, housing
1шт.
11
1272794C1
BALL
- check, 8.5 mm diameter
1шт.
12
1272795C1
O-RING,39.6mm ID x 41mm OD x 4.5mm
O-RING - sleeve
1шт.
13
1272809C1
PACKAGE
KIT - spring, set of four
1шт.
14
1272808C1
NEEDLE BEARING
- needle bearing
1шт.
15
NSS
NOT SOLD SEPARAT
PLATE - rating, order pump assembly
1шт.
16
NSS
NOT SOLD SEPARAT
WASHER - flat, cover bolt, order kit 3141548R91
7шт.
17
NSS
NOT SOLD SEPARAT
O-RING - 76 x 2 mm, order kit 3141548R91
2шт.
18
NSS
NOT SOLD SEPARAT
O-RING - 80 x 1 mm, order kit 3141548R91
1шт.
19
NSS
NOT SOLD SEPARAT
SLEEVE - pump, order pump assembly
1шт.
20
NSS
NOT SOLD SEPARAT
SLEEVE - pump, order pump assembly
1шт.
21
NSS
NOT SOLD SEPARAT
RING - housing, order kit 3141548R91
1шт.
22
NSS
NOT SOLD SEPARAT
RING - seal, order kit 3141548R91
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - seal, order kit 3141548R91
1шт.
24
NSS
NOT SOLD SEPARAT
HOUSING - pump, order pump assembly
1шт.
3141548R91
SEAL KIT
KIT - seal, pump repair, includes items 16 - 18 and 21 - 23
1шт.
Выбрано товаров: 33
