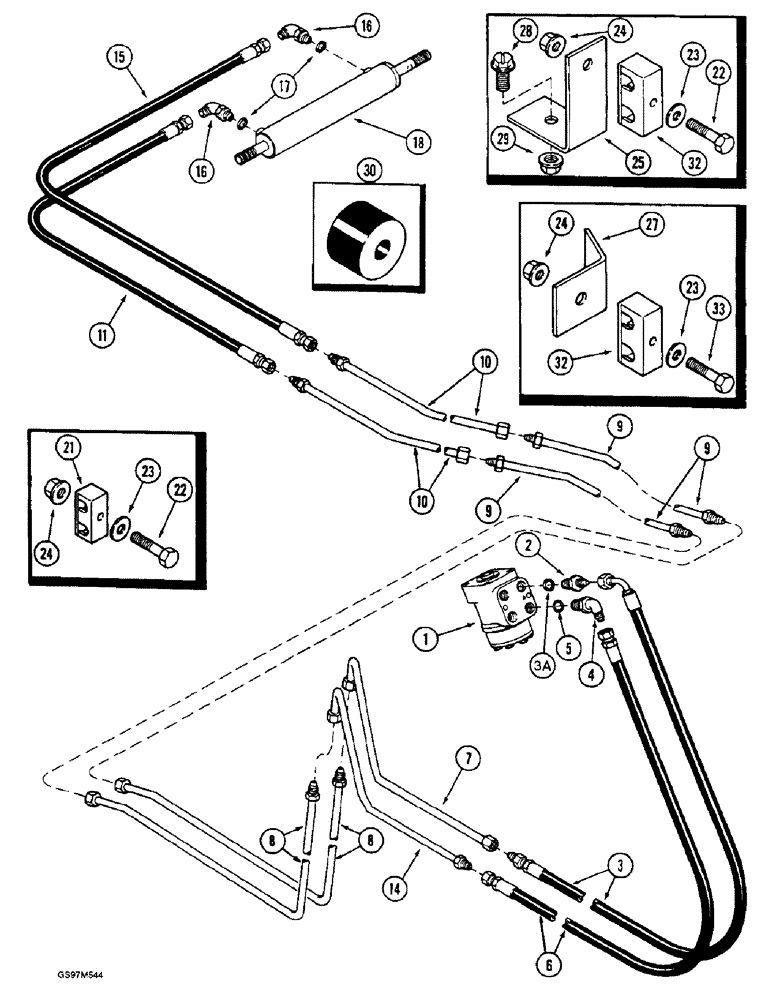

Запчасти Case IH 1660 (5-08) - STEERING SYSTEM, PUMP TO CYLINDER (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering, parts list Figure 5-10

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

3

1317940C1

HOSE

- steering hand pump left-hand, 1050 mm (41-3/8 inch) long, Includes: Ref. 3A

1шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss, Incl. Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

1317971C1

HOSE ASSY.

HOSE - steering hand pump right-hand, 1100 mm (43-5/16 inch) long, right

1шт.

7

1321968C1

HYD TUBE

TUBE - steering, forward, upper inside

1шт.

8

1321959C1

HYD TUBE

TUBE - steering, intermediate, front

2шт.

9

196790C2

HYD TUBE

TUBE - steering, intermediate, rear

2шт.

10

196791C2

HYD TUBE,0.375" OD

TUBE - steering, rear

2шт.

11

1285380C2

HYDRAULIC HOSE

HOSE - cylinder, lower, 1270 mm (50 inch) long

1шт.

11

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

- cylinder, lower, 1727 mm (68 inch) long, for 3048 mm (120 inch) axle

1шт.

14

1321967C1

HYD TUBE

TUBE - steering, forward, upper outside

1шт.

15

178962C1

HOSE ASSY.

HOSE - cylinder, upper, 1524 mm (60 inch) long, upper

1шт.

15

183920C1

HOSE ASSY.

HOSE - cylinder, upper, 1956 mm (77 inch) long, upper, for 3048 mm (120 inch) axle

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss, Includes: Ref. 17

2шт.

18

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSEMBLY - steering, parts list Figure 5-12

1шт.

21

183825C1

CLAMP

- tube retaining

3шт.

23

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

4шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

25

178950C1

ANGLE

SUPPORT - steering tubes

1шт.

27

178960C1

BRACKET

SUPPORT - rear tubes

1шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

29

231-5146

FLANGE NUT,3/8"-16

1шт.

30

167955C2

SEAL

GROMMET - steering cylinder hose

2шт.

32

1301178C1

CLAMP

- tube, steering

3шт.

33

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

22

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
