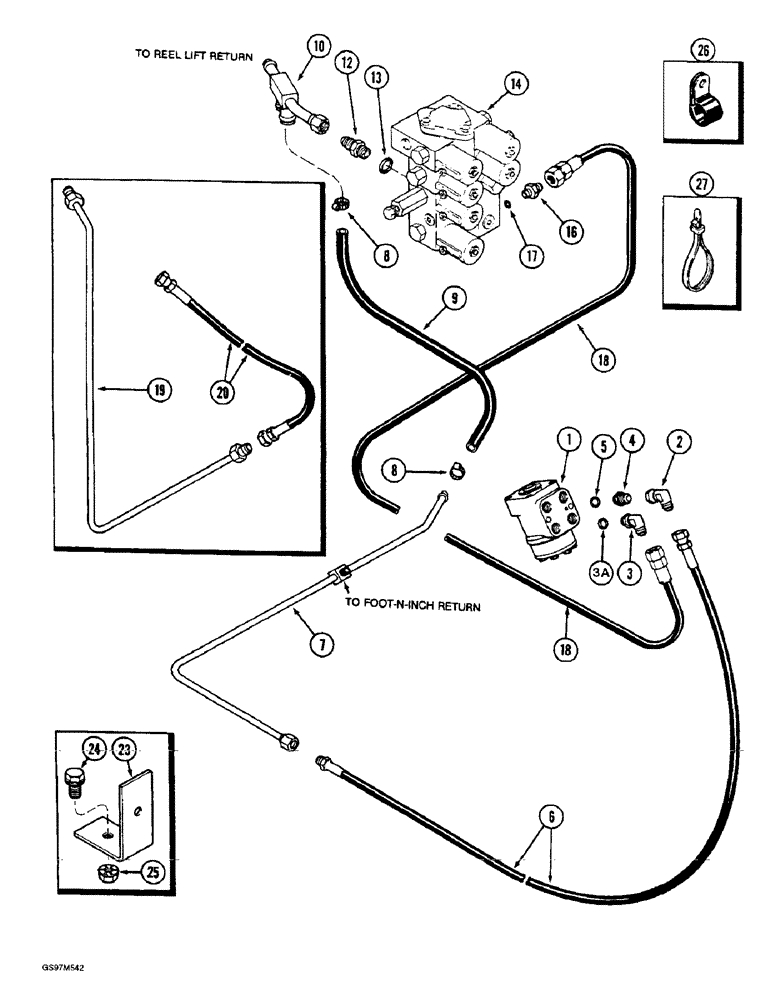

Запчасти Case IH 1660 (5-04) - STEERING SYSTEM, SUPPLY AND RETURN, PRIOR TO P.I.N. JJC0103800 (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering, parts list Figure 5-10

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel, Includes: Ref. 3A

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss, Includes: Ref. 3A

1шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

1317939C1

HOSE

- steering hand pump return, 1125 mm (44-1/4 inch) long

1шт.

7

1310764C1

HYD TUBE

TUBE - steering return

1шт.

8

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - steering return, 660 mm (26 inch) long, cut from bulk hose S118466X below

1шт.

10

1310757C1

TUBE

- manifold, and steering return

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-56 or 8-60

1шт.

16

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 17

1шт.

18

1310755C2

HOSE

- steering pressure

1шт.

Prior to P.I.N. JJC0039550.

1шт.

18

1284368C1

HYDRAULIC HOSE

HOSE - steering pressure, 2540 mm (100 inch) long

1шт.

P.I.N. JJC0039550 through JJC0103799.

1шт.

19

1310765C1

HYD TUBE

TUBE - steering pressure

1шт.

Prior to P.I.N. JJC0039550.

1шт.

20

1327580C1

HOSE

- steering hand pump pressure, 1040 mm (40-5/16 inch) long

1шт.

Prior to P.I.N. JJC0039550.

1шт.

23

10810R

HINGE

- shield, if used

1шт.

24

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

27

306132C1

CABLE TIE,14.5" L

STRAP - tie, 356 mm (14 inch) long

3шт.

S118466X

LARGE HOSE

HOSE - bulk, 13 (1/2) ID x 7620 mm (300 inch), sold by the foot

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
