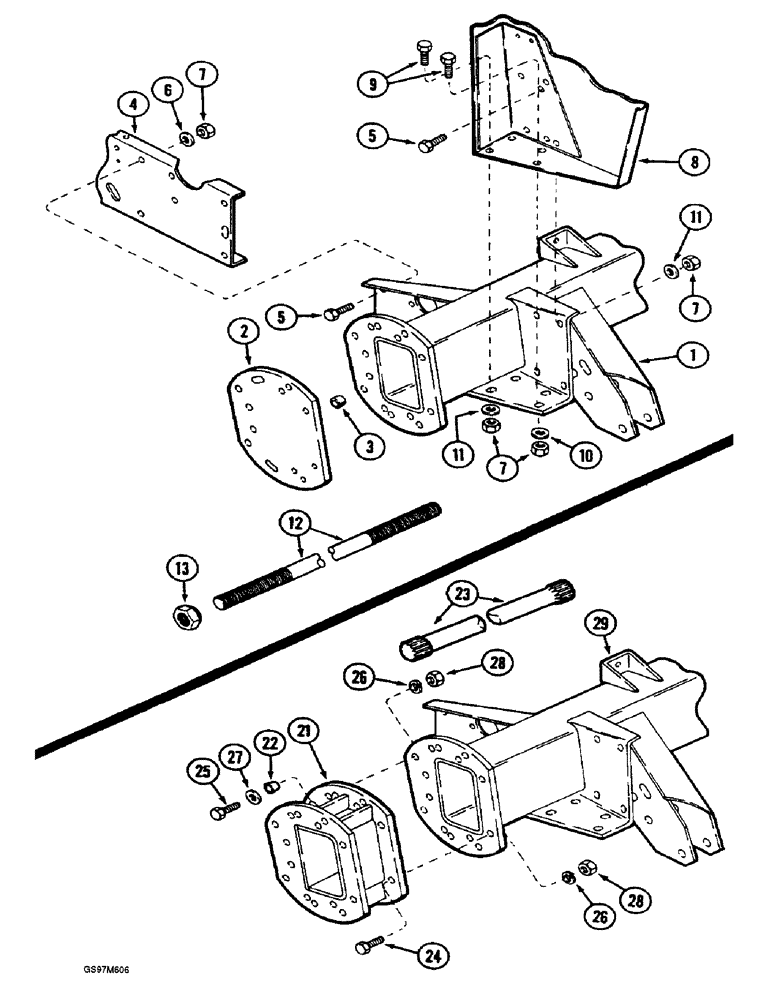

Запчасти Case IH 1660 (6-70) - DRIVE AXLE (03) - POWER TRAIN

1

1302712C1

AXLE

- drive, without gussets, no longer available, order axle 184451C2

1шт.

1

184451C2

AXLE

- drive

1шт.

Extra wide and dual wheel drive.

1шт.

2

177336C1

COVER

- end plate

2шт.

3

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- tapered

4шт.

4

REF

INSTRUCTION

SUPPORT - separator side, right-hand, See Figure 9H-04

1шт.

5

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

22шт.

6

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch

14шт.

7

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

30шт.

8

185125C3

SUPPORT ASSY.

POST - separator front, right-hand, See Figure 9H-04

1шт.

9

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

8шт.

10

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

4шт.

11

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

12шт.

12

184358C1

ROD

- reinforcement, extension

1шт.

Extra wide and dual wheel drive.

1шт.

13

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.

Extra wide and dual wheel drive.

1шт.

21

177345C4

EXTENSION ASSY.

EXTENSION - drive axle, single wheel short

2шт.

22

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- tapered, axle extension single wheel short

8шт.

23

184223C1

SHAFT

- axle, left-hand, extension single wheel short

1шт.

23

184224C1

SHAFT

- axle, right-hand, extension single wheel short

1шт.

23

1309011C1

SHAFT

- final drive, left-hand track, axle extension single wheel short

1шт.

23

184222C1

SHAFT

- final drive, right-hand track, axle extension single wheel short

1шт.

24

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

Axle extension single wheel short Hex, 3/4"-10 x 2 1/4", G8

12шт.

25

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, axle extension single wheel short

4шт.

26

492-11075

LOCK WASHER,3/4"

axle extension , single wheel, short 3/4"

16шт.

27

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

Axle extension single wheel short 13/16" x 1 1/2" x .219", HDN

8шт.

28

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8, axle extension single wheel short

16шт.

29

REF

INSTRUCTION

AXLE - drive, see item 1, extension single wheel short

1шт.
