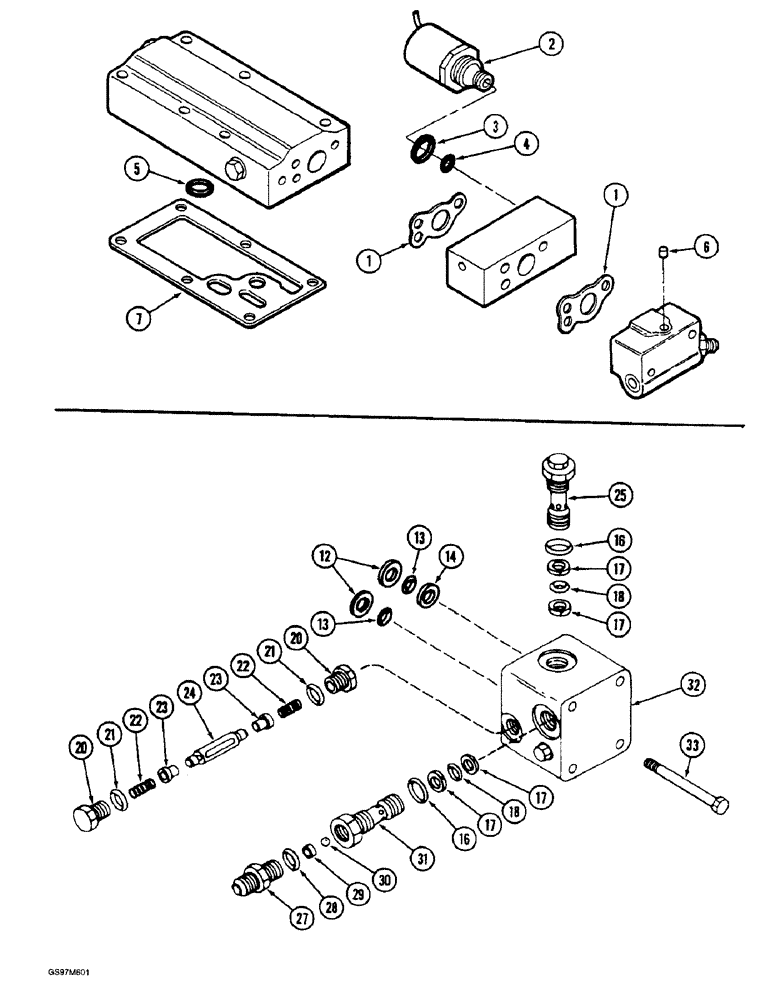

Запчасти Case IH 1660 (6-60) - HYDROSTATIC MOTOR, MOTOR CONTROL VALVE, TWO SPEED, TWO SPEED (03) - POWER TRAIN

145336C92

VALVE

ASSEMBLY - motor control, Includes: Ref. 1 - 7

1шт.

1

1272954C1

GASKET,0.43mm Thk

- valve body

2шт.

2

145338C2

SOLENOID

ASSEMBLY - control valve, Includes: Ref. 3 & 4 and nut, coil, and cartridge

1шт.

298986A1

NUT

- hex, 1/2 inch NF

1шт.

298985A1

SOLENOID

COIL - solenoid

1шт.

255834A1

CARTRIDGE

- solenoid

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

5

1341840C1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- retaining (Replaces O-ring 92647C1)

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - valve body, order kit 92649C91

1шт.

Part of control valve body plug service kit P/N 92649C1

1шт.

7

145337C1

GASKET

- control valve

1шт.

1542831C1

SEAL KIT

KIT - seal, for solenoid assembly 145338C2

1шт.

92649C1

KIT

- service, control valve body plug, Includes Ref. 1 & 6

1шт.

1971432C2

VALVE

BLOCK ASSEMBLY - relief valve (Replaces block assembly 1971433C1), two speed, Includes: Ref. 12 - 32 and kit

1шт.

140747C92

SEAL KIT

KIT - seal replacement, two speed relief valve block, Includes: Ref. 12 - 18

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- quad, 3/4 x 7/8 x 1/16 inch, order kit 140747C92, two speed relief valve block

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Two speed relief valve block -018, 90 Duro, .739" ID x .070" Thk

2шт.

14

631458C1

RING

- backup, two speed relief valve block

2шт.

393885R91

GASKET KIT

KIT - relief valve seal, two speed block

3шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk, Two speed relief valve block

1шт.

17

393887R1

BACK-UP RING

RING - backup, two speed relief valve block

2шт.

18

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Two speed relief valve block -117, 90 Duro, .799" ID x .103" Thk

1шт.

145559C91

KIT

- shuttle valve, two speed relief block, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - valve, order kit 145559C91, two speed relief block

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Two speed relief valve block

2шт.

22

145560C1

SPRING

- shuttle valve, two speed relief block

2шт.

23

NSS

NOT SOLD SEPARAT

VALVE - shuttle, order kit 145559C91, two speed relief block

2шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - shuttle, order kit 145559C91, two speed relief valve block

1шт.

25

140761C1

VALVE PRESSURE RELIE

VALVE - low pressure relief, 2 speed block

1шт.

1971415C2

VALVE

ASSEMBLY - feathering relief, two speed block, Includes: Ref. 27 - 31

2шт.

27

NSS

NOT SOLD SEPARAT

CONNECTOR - special, order valve assembly, two speed relief block

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - 1/4 inch OD tube, order valve assembly, two speed relief block

1шт.

29

NSS

NOT SOLD SEPARAT

BUSHING - ball guide, order valve assembly, two speed relief block

1шт.

30

NSS

NOT SOLD SEPARAT

BALL - steel, 1/4 inch, order valve assembly, two speed relief block

1шт.

31

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, order block assembly 1971432C2, two speed relief block

1шт.

32

NSS

NOT SOLD SEPARAT

BLOCK - valve, two speed relief block

1шт.

33

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch, two speed relief valve block

4шт.
