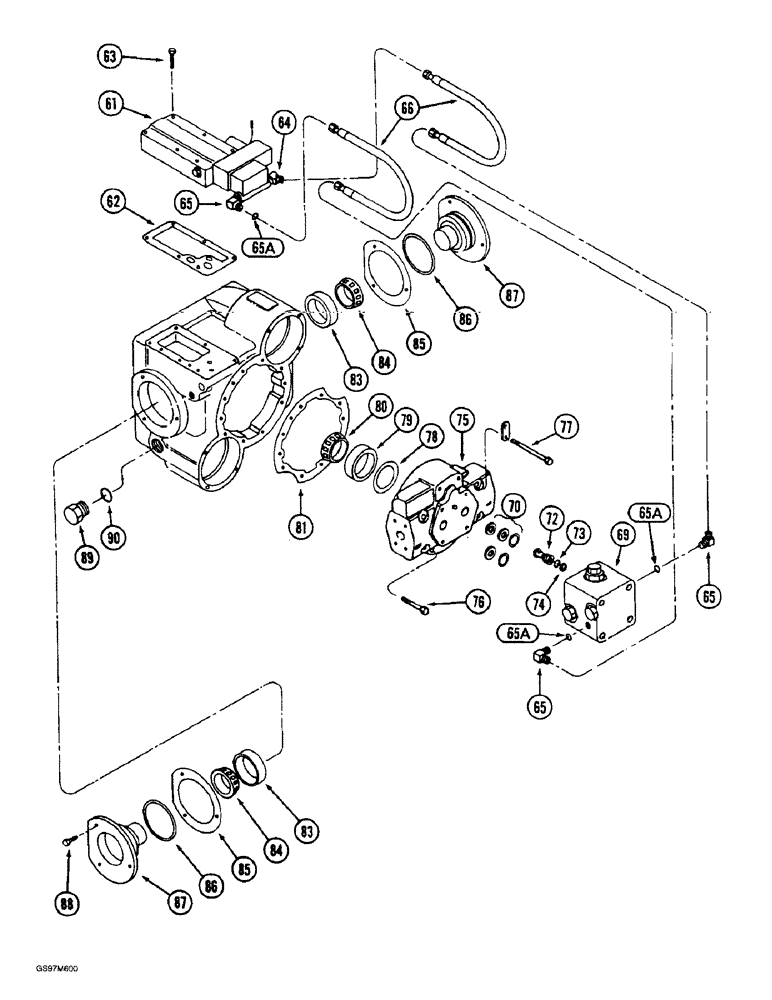

Запчасти Case IH 1660 (6-58) - HYDROSTATIC MOTOR, TWO SPEED, P.I.N. JJC0041567 AND AFTER (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, Includes: Ref. 61 - 90 and plugs and o-rings, 1 - 39 on Figure 6-54 and 43 - 52 on Figure 6-56

1шт.

61

145336C92

VALVE

ASSEMBLY - control, parts list Figure 6-60

1шт.

62

145337C1

GASKET

- control valve

1шт.

63

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

64

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adjustable O-ring boss, Includes: Ref. 64A

1шт.

64a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Not shown

2шт.

65

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adjustable O-ring boss, Includes: Ref. 65A

3шт.

65a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

66

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

HOSE - valve to block, 254 mm (10 inch) long

2шт.

69

1971432C2

VALVE

BLOCK ASSEMBLY - relief, parts list Figure 6-60

1шт.

70

140747C92

SEAL KIT

KIT - seal replacement, parts list Figure 6-60

1шт.

72

140769C1

CHECK VALVE

VALVE - check

2шт.

73

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

74

140770C1

RING

- backup

2шт.

75

NSS

NOT SOLD SEPARAT

HOUSING - end cover, order motor assembly

1шт.

76

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

77

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

142398C91

SHIM KIT

KIT - shim, end cover, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.003 inch, order kit 142398C91

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.005 inch, order kit 142398C91

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.010 inch, order kit 142398C91

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.015 inch, order kit 142398C91

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.020 inch, order kit 142398C91

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.030 inch, order kit 142398C91

1шт.

79

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD, input shaft

1шт.

80

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - tapered roller, 1-3/16 inch ID, input shaft

1шт.

81

140756C2

GASKET

- end cover

1шт.

83

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, 2-57/64 inch OD, trunnion

2шт.

84

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - tapered roller, 1-25/32 inch ID, trunnion

2шт.

142386C91

SHIM KIT

KIT - shim, trunnion bearing, Includes: Ref. 85

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.002 inch, 6 in kit

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.005 inch, 4 in kit

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.010 inch, 4 in kit

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.015 inch, 4 in kit

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.025 inch, 4 in kit

1шт.

86

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

87

NSS

NOT SOLD SEPARAT

TRUNNION - motor, order motor assembly

2шт.

88

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex, 7/16 NC x 7/8 inch

6шт.

89

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 90 Hex Hd, 1 1/16"-12 ORB

1шт.

90

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

278548

PLUG,Hex, 7/16"-20 ORB

Incl O-ring, 237-6004 Hex Soc, 7/16"-20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: O-Ring, 237-6012 Hex Hd, 1 1/16"-12 ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
