Запчасти Case IH 1660 (6-66) - TRANSMISSION DIFFERENTIAL, PINION SHAFT AND GEARS (03) - POWER TRAIN

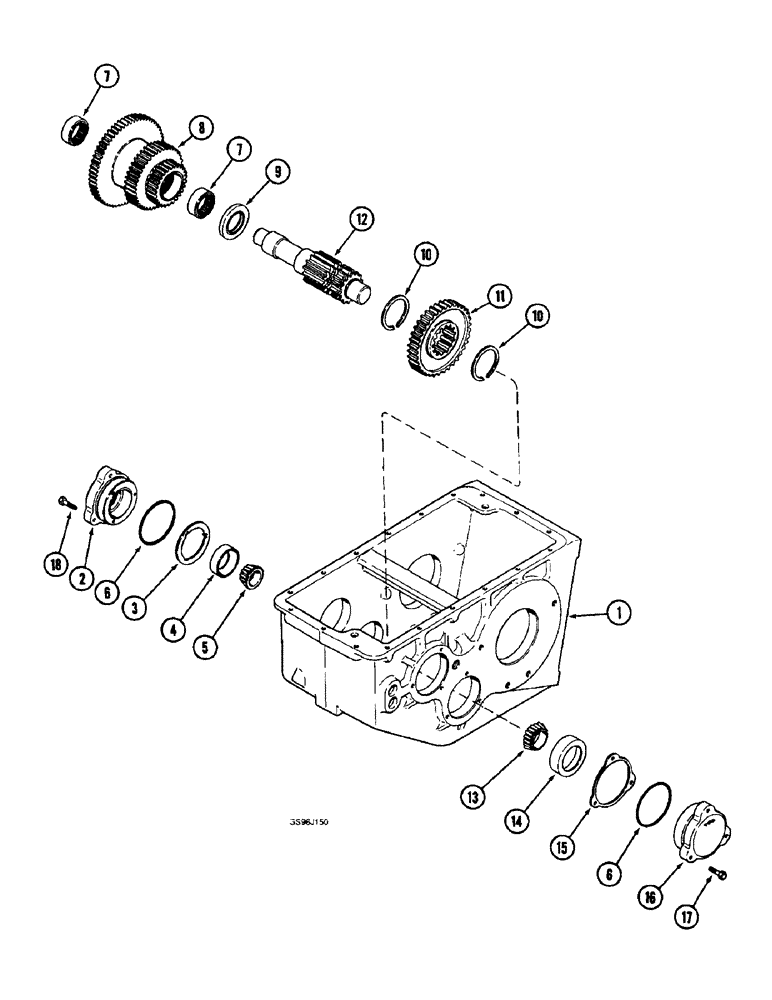

Схема запчастей Case IH 1660 - (6-66) - TRANSMISSION DIFFERENTIAL, PINION SHAFT AND GEARS (03) - POWER TRAIN
10
11
2
16
4
13
9
12
6
14
1
6
15
5
8
3
7
18
10
17
7

Артикул

Название

Примечание

Количество

1

401873R2

HOUSING

- transmission, see Fig. 6-64

1шт.

2

188893C1

BEARING COVER,59.75 mm ID x 101.51 mm OD x 47.5 mm

HOUSING - bearing, left-hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

- thrust

2шт.

4

131312C1

BEARING CUP

CUP - tapered roller bearing, left-hand, 2-27/32 inch OD

1шт.

5

871244R1

ROLLER BEARING

BEARING - tapered roller, left-hand

1шт.

6

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - needle

2шт.

8

530699R1

PINION

GEAR - spool, 59, 39 and 27 tooth

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

- spool gear

1шт.

10

196693H1

RING

- snap, change gear

2шт.

11

401881R1

GEAR

- change driven, 37 tooth, grain and corn combine

1шт.

11

406606R1

GEAR

- change driven, 41 tooth, rice combine

1шт.

12

401878R1

SHAFT

- pinion, 14 tooth

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

BEARING - tapered roller, right-hand

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP - tapered roller bearing, right-hand

1шт.

15

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

(0.003") (Replaces shim 401883R1) 0.076mm Thk

1шт.

15

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005") 0.127mm Thk

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007") 0.178mm Thk

1шт.

15

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

(0.030") 0.762mm Thk

1шт.

16

403363R1

BEARING CAP,73.4 mm ID x 101.5 mm OD x 54.1 mm

CAGE - bearing, right-hand

1шт.

17

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

18

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

3шт.

19

1981198C1

SPACER

- spool gear, not shown

1шт.

Выбрано товаров: 23
