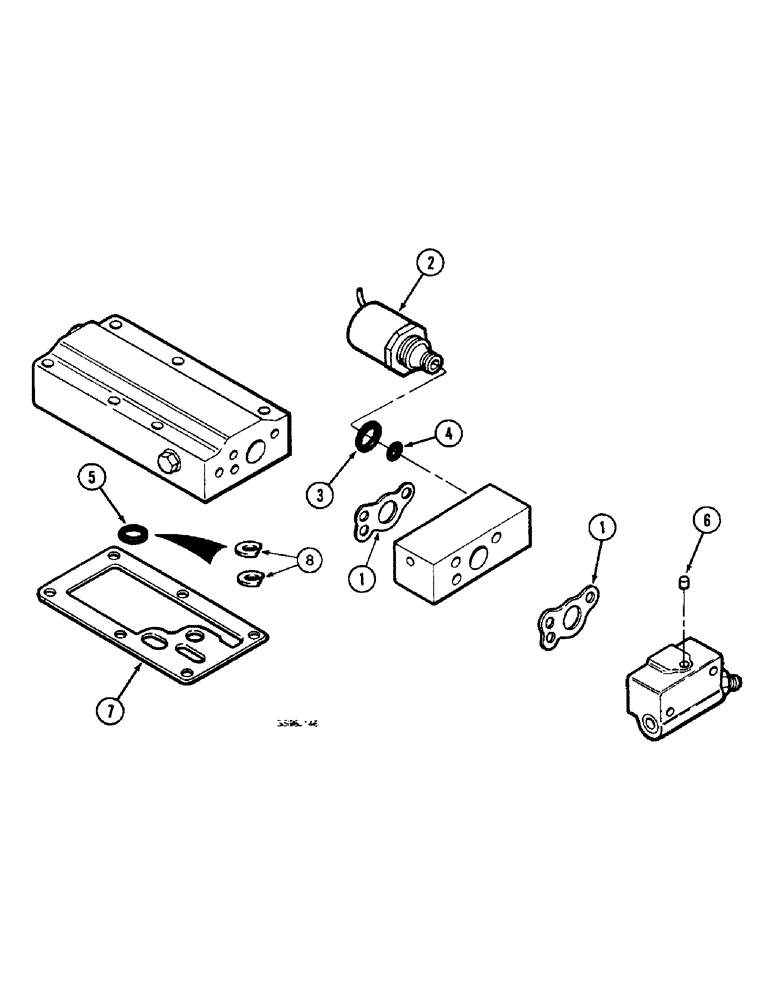

Запчасти Case IH 1660 (6-58) - HYDROSTATIC MOTOR, TWO SPEED, CONTROL BLOCK (03) - POWER TRAIN

145336C92

VALVE

ASSEMBLY - motor control, Includes: Ref. 1 - 8

1шт.

1

1272954C1

GASKET,0.43mm Thk

- valve body

2шт.

Part of Service Kit, P/N 92649C1

1шт.

2

145338C2

SOLENOID

ASSEMBLY - control valve, Includes: Ref. 3 and 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

5

1341840C1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER - control valve vent retainer, no longer used, order orifice 1343661C1 and 1343662C1, item 8 below, and O-ring 238-5012, item 4 above

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - valve body, order kit 92649C1

1шт.

Part of Service Kit, P/N 92649C1

1шт.

7

145337C1

GASKET

- control valve

1шт.

8

1343661C1

ORIFICE

- control valve, 0.044 inch

1шт.

8

1343662C1

ORIFICE

- control valve, 0.057 inch

1шт.

92649C1

KIT

- service, control valve body plug

1шт.
