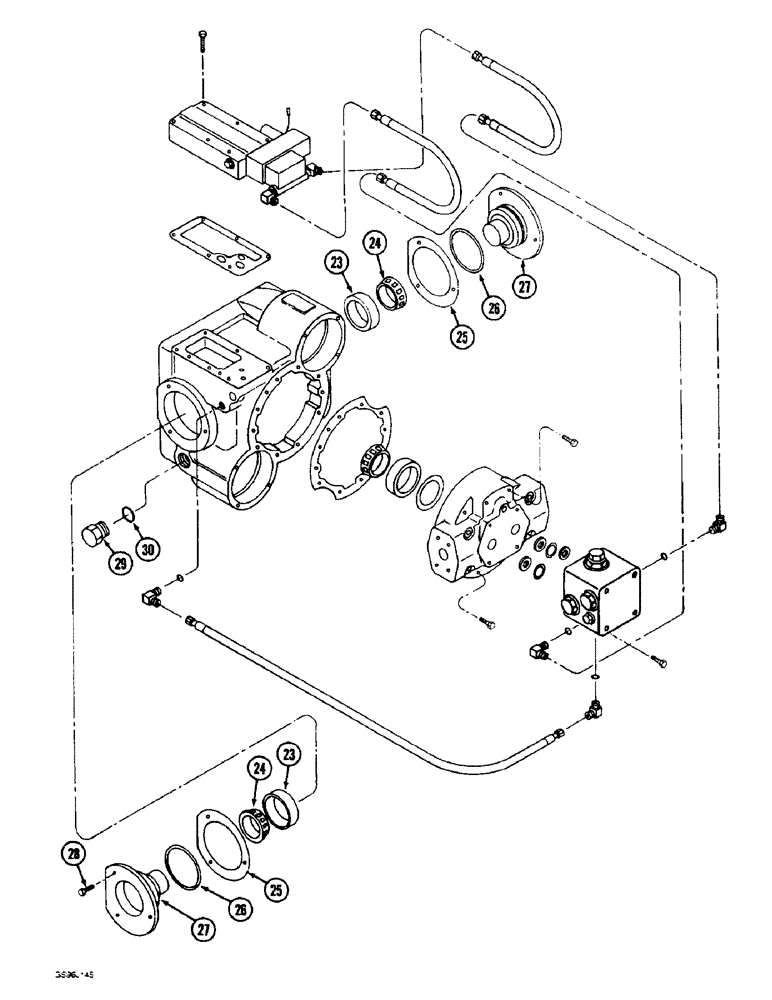

Запчасти Case IH 1660 (6-56) - HYDROSTATIC MOTOR, TWO SPEED, VALVE BLOCK, (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, two speed, Includes: Ref. 23 - 30 and parts in Figs. 6-54 and 6-58

1шт.

23

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, 2-57/64 inch OD

2шт.

24

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - tapered roller, 1-25/32 inch ID

2шт.

25

142386C91

SHIM KIT

KIT - shim, trunnion, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch, six in kit

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, four in kit

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, four in kit

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch, four in kit

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch, four in kit

1шт.

26

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

27

NSS

NOT SOLD SEPARAT

TRUNNION - order motor assembly

2шт.

28

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex, 7/16 NC x 7/8 inch

6шт.

29

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 30

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
