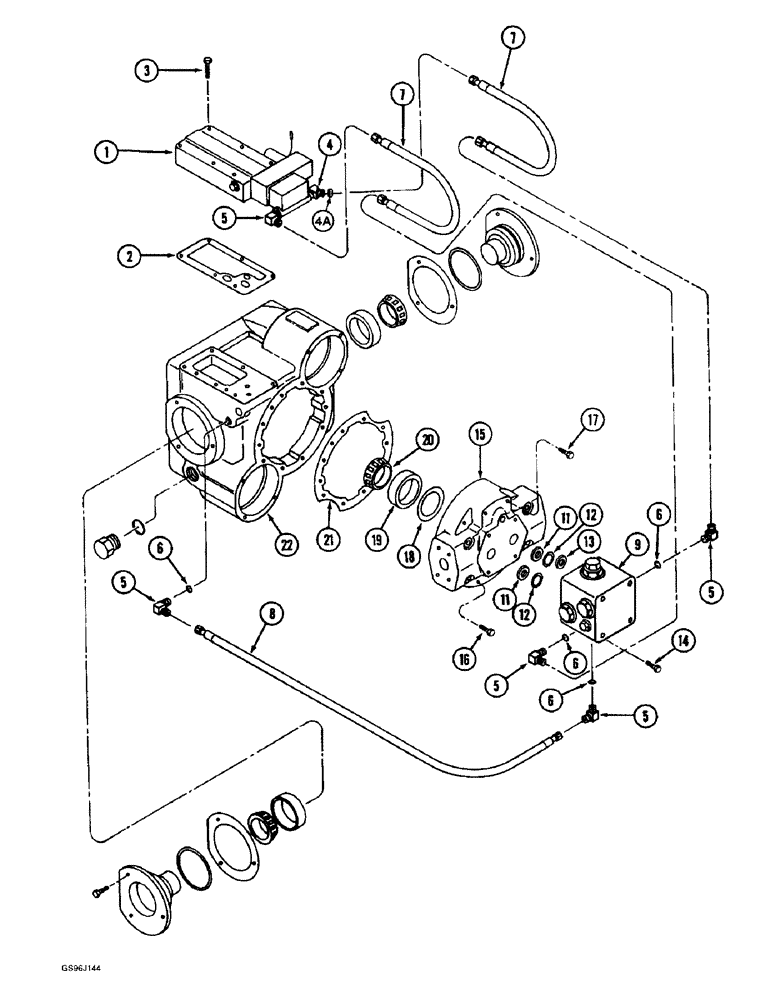

Запчасти Case IH 1660 (6-54) - HYDROSTATIC MOTOR, TWO SPEED, VALVE BLOCK (03) - POWER TRAIN

1252342C94

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydrostatic, two speed, remanufactured, North America only, part number stamped on part, no longer available, order motor assembly 1958085C1, parts list Fig. 6-48 and 6-56

1шт.

140735C96

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydrostatic, two speed, new, part number stamped on part, no longer available, order motor assembly 1958085C1, parts list Fig. 6-48, 6-50, 6-52 and 6-56, Includes: Ref. 1 - 22

1шт.

1

145336C92

VALVE

ASSEMBLY - control, parts list Fig. 6-58

1шт.

2

145337C1

GASKET

- control valve

1шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

4

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adjustable O-ring boss, Includes: Ref. 4A

1шт.

4a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

5

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adjustable O-ring boss, Includes: Ref. 6

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

4шт.

7

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

HOSE - 10 inch (254 mm) long, Serial Range: valve-block

2шт.

8

145340C1

HOSE

- housing to valve block

1шт.

9

1971432C2

VALVE

BLOCK ASSEMBLY - relief, parts list Fig. 6-60

1шт.

140747C92

SEAL KIT

KIT - valve block seal, Includes: Ref. 11 - 13

1шт.

11

631458C1

RING

- backup

2шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

13

140747C92

SEAL KIT

KIT - valve block seal

1шт.

14

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

15

NSS

NOT SOLD SEPARAT

COVER - end, order motor assembly

1шт.

16

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

17

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

18

142398C91

SHIM KIT

KIT - shim, bearing, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, order kit 142398C91

1шт.

19

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD

1шт.

20

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - tapered roller, 1-3/16 inch ID, input shaft

1шт.

21

92741C2

GASKET,0.38mm Thk

- end cover

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - motor, order motor assembly

1шт.
