(6-44) - HYDROSTATIC MOTOR, TWO SPEED, MOTOR BLOCK

Запчасти Case IH 1660 (6-44) - HYDROSTATIC MOTOR, TWO SPEED, MOTOR BLOCK (03) - POWER TRAIN

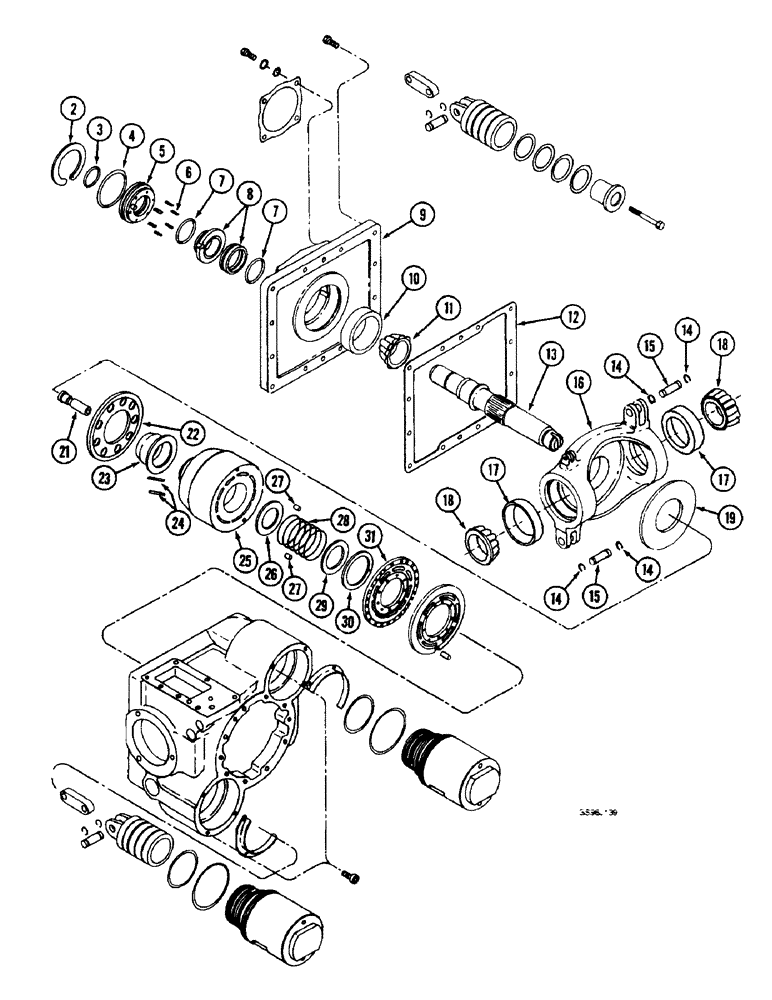

Схема запчастей Case IH 1660 - (6-44) - HYDROSTATIC MOTOR, TWO SPEED, MOTOR BLOCK (03) - POWER TRAIN
23
21
29
14
8
26
5
14
3
6
17
19
4
15
27
13
10
27
7
25
16
9
24
18
2
14
22
31
11
12
30
18
7
15
14
28
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1252342C94

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydrostatic, two speed, remanufactured, North America only, part number stamped on part, no longer available, order motor assembly 1958085C1 parts list Fig. 6-48

1шт.

Used with machines prior to serial number 38850

1шт.

1949211C1

CORE-MONITOR

RETURN NUMBER - use this number to return motor for credit when using a remanufactured assembly

1шт.

140735C96

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydrostatic, two speed, new, part number stamped on part, no longer available, order motor assembly 1958085C1, parts list Fig. 48, Includes: Ref. 2 - 31 and parts in Fig. 6-46

1шт.

Used with machines prior to serial number 38850

1шт.

1346205C1

SEAL KIT

SEAL ASSEMBLY - shaft, three-piece, Includes: Ref. 2 - 8

1шт.

2

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

3

S98648

O-RING

- 1-3/8 ID x 1/16 inch wide

1шт.

4

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - seal, order seal assembly 1346205C1

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - shaft seal, order seal assembly 1346205C1

1шт.

7

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - shaft, order seal assembly 1346205C1

1шт.

9

NSS

NOT SOLD SEPARAT

FLANGE - mounting, order motor assembly

1шт.

10

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD, input shaft

1шт.

11

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - input shaft bearing, 1-3/4 inch ID, input shaft

1шт.

12

142399C1

GASKET

- mounting flange

1шт.

13

1980135C1

SHAFT

- output

1шт.

14

28145R1

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

15

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot

2шт.

16

80365C1

HOUSING

PLATE - swash, variable

1шт.

17

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - trunnion bearing, see Fig. 6-56

2шт.

18

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - trunnion bearing, see Fig. 6-56

2шт.

19

80369C1

PLATE

- thrust

1шт.

142392C93

STRIPPER PACKAGE

KIT - rotating group, Includes: Ref. 21 - 31

1шт.

21

142393C1

PISTON ASSY.

PISTON - cylinder block

9шт.

22

NSS

NOT SOLD SEPARAT

PLATE - retainer, order kit 142392C93

1шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - retainer plate, order kit 142392C93

1шт.

24

142394C1

PIN

- dowel

6шт.

25

NSS

NOT SOLD SEPARAT

BARREL - cylinder, order kit 142392C93

1шт.

26

NSS

NOT SOLD SEPARAT

SPACER - spring, order kit 142392C93

1шт.

27

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

28

NSS

NOT SOLD SEPARAT

SPRING - order kit 142392C93

1шт.

29

NSS

NOT SOLD SEPARAT

SPACER - spring, order kit 142392C93

1шт.

31

142395C1

PLATE

- bearing

1шт.
