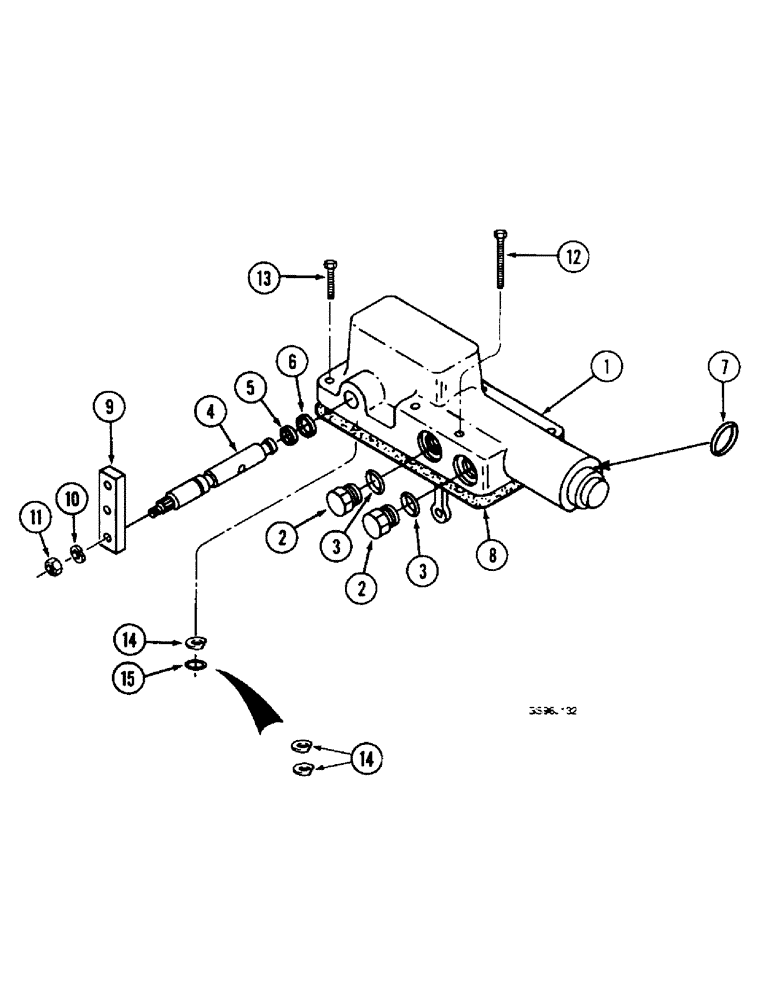

Запчасти Case IH 1660 (6-30) - HYDROSTATIC PUMP, CONTROL VALVE (03) - POWER TRAIN

133755C94

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 133755C94

1шт.

2

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 3 Hex Soc, 9/16"-18 ORB

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

4

1978048C2

SHAFT

ASSEMBLY - valve, Includes: Ref. 5

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

6

1267111C1

RING,11.18mm ID x 12.7mm OD x 1.78mm Thk

SEAL - shaft, if equipped

1шт.

7

80269C1

O-RING KIT

O-RING - 5/8 ID x 1/16 inch wide

1шт.

8

133756C1

GASKET

- control valve

1шт.

9

404782R2

PLATE

- control valve shaft

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC

1шт.

12

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

14

1343661C1

ORIFICE

- control valve, 0.044 inch

2шт.

14

1343662C1

ORIFICE

- control valve, 0.057 inch

2шт.

15

1341840C1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER - control valve vent retainer, no longer used, order orifice 1343661C1 and orifice 1343662C1, items 14 above, and O-ring 238-5012, item 5 above

1шт.
