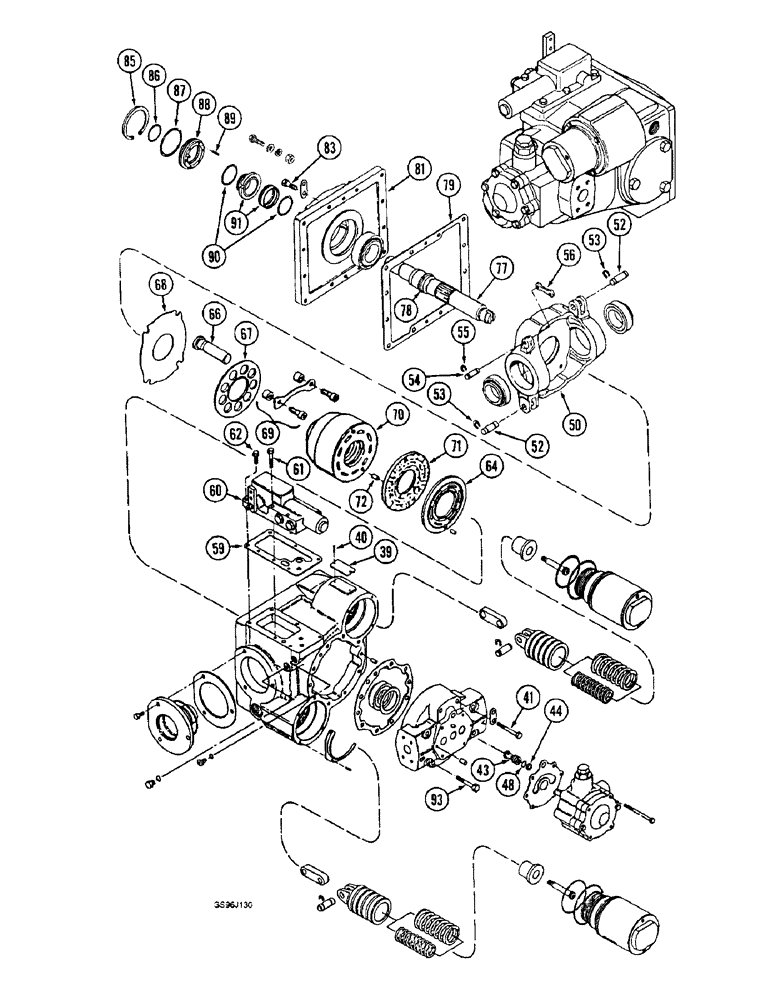

Запчасти Case IH 1660 (6-26) - HYDROSTATIC PUMP, 1958078C1 (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, Includes: Ref. 39 - 93 and parts in Figs 6-24 and 6-28

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification, order pump assembly

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW - drive, identification plate, order pump assembly

2шт.

41

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch

6шт.

43

140769C1

CHECK VALVE

VALVE - check

2шт.

44

140770C1

RING

- backup

2шт.

48

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

50

1980171C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

54

140765C1

PIN

- pivot, control valve

1шт.

55

100-1125

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

56

142402C1

LINK

- connecting, control valve

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

133755C94

VALVE

ASSEMBLY - control, parts list Fig. 60

1шт.

61

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

64

1980173C1

PLATE

- pump valve

1шт.

1980138C1

KIT

- rotating, cylinder, Includes: Ref. 66 - 72

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block, order kit 1980138C1

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retaining, order kit 1980138C1

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear, order kit 1980138C1

1шт.

69

NSS

NOT SOLD SEPARAT

KIT - hold down, order kit 1980138C1

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder, order kit 1980138C1

1шт.

71

NSS

NOT SOLD SEPARAT

PLATE - bearing, order kit 1980138C1

1шт.

72

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

77

1980169C1

SHAFT

ASSEMBLY - input, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap, order shaft 1980169C1

1шт.

79

142399C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting, order pump assembly

1шт.

83

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

(Replaces bolt 70427R1) Hex, 7/16"-14 x 1 1/4", G8

12шт.

1346205C1

SEAL KIT

SEAL ASSEMBLY - shaft, three-piece (Replaces seal assembly 142518C1) Includes: Ref. 85 - 91

1шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

86

S98648

O-RING

- 1-3/8 ID x 1/16 inch wide

1шт.

87

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

88

NSS

NOT SOLD SEPARAT

RETAINER - seal, order seal assembly 1346205C1

1шт.

89

NSS

NOT SOLD SEPARAT

SPRING - shaft seal, order seal assembly 1346205C1

6шт.

90

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft, order seal assembly 1346205C1

1шт.

93

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

(Replaces bolt 203762R1) Hex, 7/16"-14 x 2", G8

2шт.
