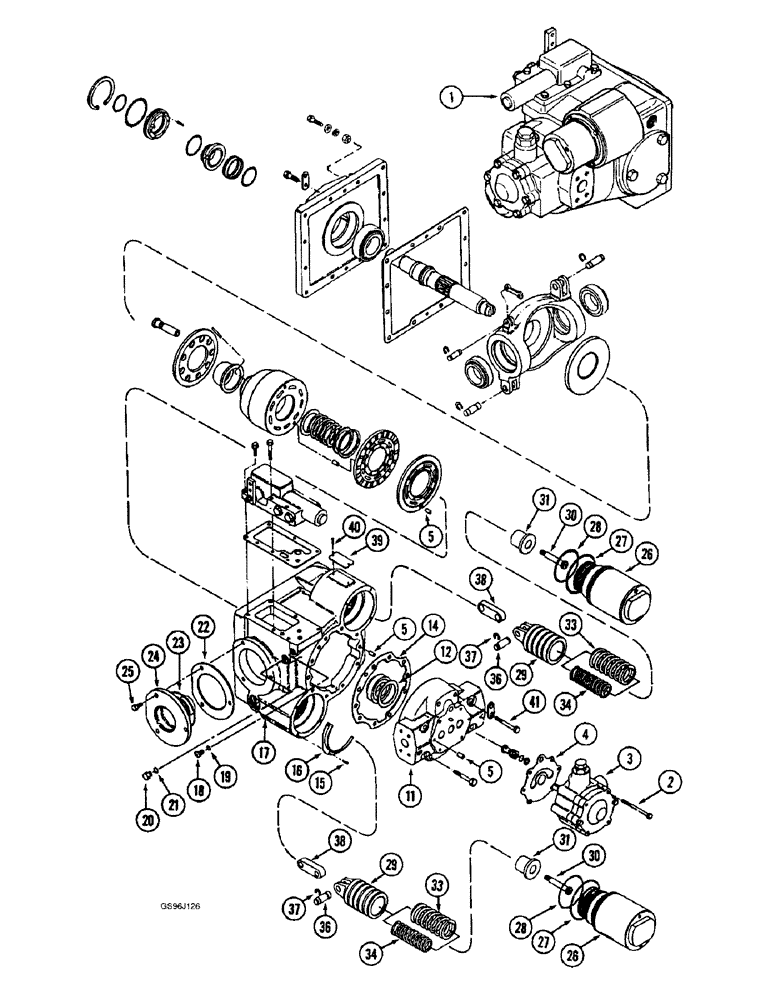

Запчасти Case IH 1660 (6-18) - HYDROSTATIC PUMP, 149917C94 (03) - POWER TRAIN

1252352C94

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, remanufactured, North America only, part number stamped on part

1шт.

Used with machines prior to serial number 38850

1шт.

1949215C1

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this number to return pump for credit when using a remanufactured assembly

1шт.

1

149917C94

PUMP

ASSEMBLY - hydrostatic, new, part number stamped on part, no longer available, order pump assembly 1958078C1, parts list Fig. 6-24, Includes: Ref. 2 - 41 and Ref. 43 - 93 on Fig. 6-20 and Ref. 94 - 105 on Fig. 6-22

1шт.

Used with machines prior to serial number 38850

1шт.

2

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

4шт.

3

133761C91

PUMP

ASSEMBLY - charge, parts list Fig. 2 - 41

1шт.

4

133760C2

GASKET

- charge pump

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

11

NSS

NOT SOLD SEPARAT

COVER - end pump, order pump assembly

1шт.

12

142398C91

SHIM KIT

KIT - shim, end cover, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 142398C91

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, order kit 142398C91

1шт.

14

92741C2

GASKET,0.38mm Thk

- end cover

1шт.

15

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

BOLT - hex socket, No. 8 NC x 3/8 inch

6шт.

16

142408C1

RETAINER

- servo

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump, order pump assembly

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - housing, order pump assembly, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - housing plug

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - housing, order pump assembly, Includes: Ref. 21

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - housing plug

1шт.

22

142386C91

SHIM KIT

KIT - shim, trunnion bearing, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch, order kit 142386C91

6шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 142386C91

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, order kit 142386C91

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch, order kit 142386C91

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch, order kit 142386C91

4шт.

23

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

24

NSS

NOT SOLD SEPARAT

TRUNNION - order pump assembly

2шт.

25

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex, 7/16 NC x 7/8 inch

6шт.

26

142407C2

KIT

SLEEVE - servo (Replaces sleeve 142407C1)

2шт.

27

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

28

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

29

224669C91

PISTON

ASSEMBLY - servo, Includes: Ref. 30 - 38

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket, order piston assembly 224669C91

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - servo spring, order piston assembly 224669C91

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy, order piston assembly 224669C91

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - servo, light, order piston assembly 224669C91

1шт.

36

NSS

NOT SOLD SEPARAT

PIN - link, order piston assembly 224669C91

1шт.

37

NSS

NOT SOLD SEPARAT

RING - link retaining, order piston assembly 224669C91

2шт.

38

NSS

NOT SOLD SEPARAT

LINK - servo, order piston assembly 224669C91

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification, order pump assembly

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW - drive, identification plate, order pump assembly

2шт.

41

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch

6шт.
