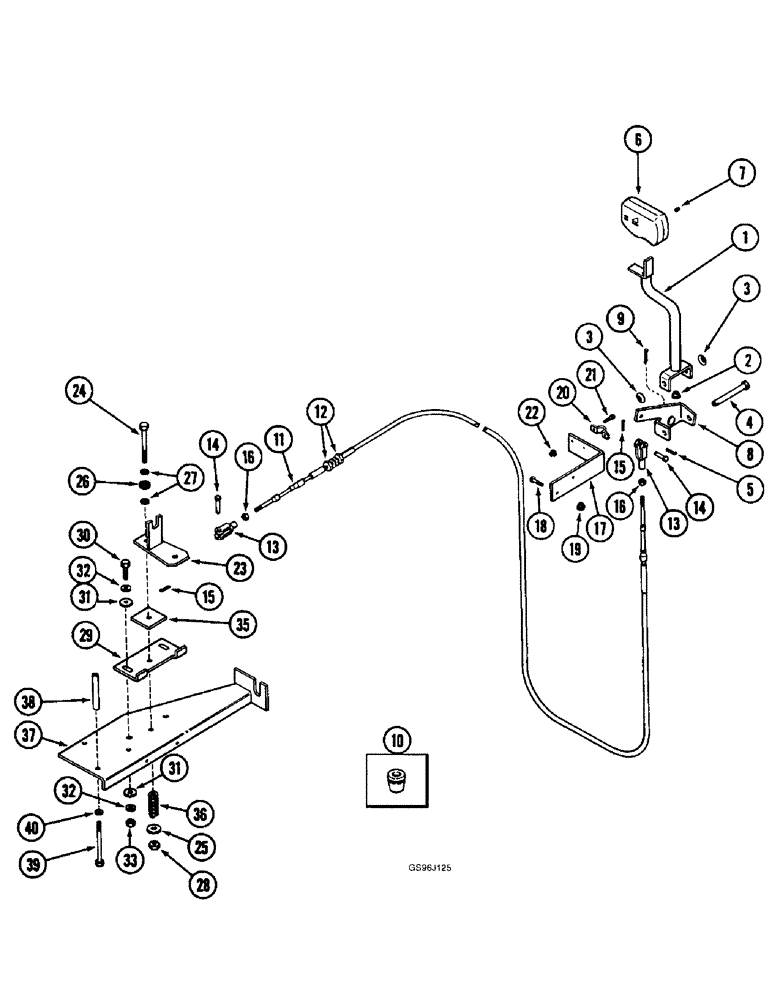

Запчасти Case IH 1660 (6-16) - PROPULSION CONTROL (03) - POWER TRAIN

1

183508C94

LEVER

- propulsion control

1шт.

2

224871C1

BUSHING

- control arm

1шт.

3

366613R1

SPRING

DISK - tension spring

2шт.

4

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

PIN - clevis, 1/2 x 3-7/16 inch, hardened

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

6

1301180C92

HANDLE

ASSEMBLY - control, Includes: Ref. 7

1шт.

7

28002R1

HEX SOC SCREW,#6 - 32 x 1/2"

SCREW - hex socket head, No. 6 x 1/2 inch

3шт.

8

1267441C1

SUPPORT ASSY.

SUPPORT - lever pivot

1шт.

9

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

10

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

2шт.

11

1339382C1

CABLE,4877mm L

- control (Replaces cable 1329388C1)

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

2шт.

13

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

2шт.

14

327-5094

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

2шт.

15

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

16

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

17

193281C1

ANGLE

- control cable mounting

1шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

195593C1

CLAMP

- control cable

1шт.

21

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

2шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

23

151917C94

ARM ASSY.

ARM - pump actuating

1шт.

24

413-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

- hex, 7/16 NC x 3-1/4 inch

1шт.

25

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

1шт.

26

159688R91

THRUST BEARING

BEARING - actuating arm

1шт.

27

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, 15/32 x 59/64 x 1/16 inch, hardened

2шт.

28

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

29

1301490C1

SUPPORT

- control arm

1шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

2шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.

35

150627C1

FRICTION WASHER

- friction

1шт.

36

28395H

SPRING

- control arm

1шт.

37

1301488C3

SUPPORT

- pump control (Replaces support 1301488C2)

1шт.

38

14233L

SPACER,3/8" Pipe x 2 7/8"

- pump control support to pump

3шт.

39

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

3шт.

40

492-11038

LOCK WASHER,3/8"

3шт.
