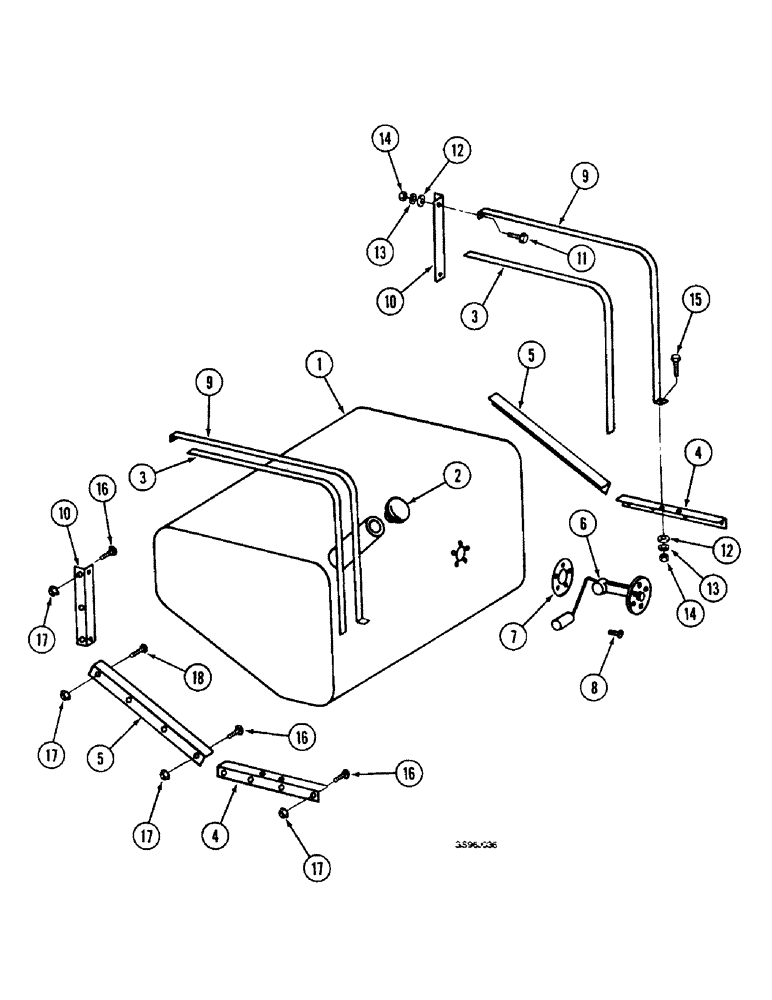

Запчасти Case IH 1660 (3-12) - FUEL TANK (02) - FUEL SYSTEM

1

193550C95

FUEL TANK

TANK ASSEMBLY - fuel (Replaces tank assembly 193550C94), Includes: Ref. 2

1шт.

2

104781C1

CAP

- fuel tank, non-vented

1шт.

2

23995DC

FILLER CAP

CAP - vented, fuel tank filler, extra dirty condition

1шт.

3

NSS

NOT SOLD SEPARAT

STRIP - fuel tank support, lining, 72 inch (1829 mm) long, cut from bulk strip 990541R1

2шт.

4

192381C3

SUPPORT

ANGLE - lower support

2шт.

5

1302029C1

SUPPORT

ANGLE - front support

2шт.

6

198024C1

FUEL GAUGE

SENSOR - fuel level sending unit

1шт.

7

168515C1

GASKET,3.05mm Thk

- fuel tank sending unit

1шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

9

1302031C1

STRAP

SUPPORT - fuel tank retainer, strap

2шт.

10

1302030C1

ANGLE

ANGLE - front

2шт.

11

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

2шт.

12

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

21шт.

16

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

BOLT - carriage, 5/16 NC x 2-1/2 inch (Replaces bolt 27444R1)

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

27шт.

18

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

990541R1

FIXING STRIP

STRIP - bulk, lining, 1-1/4 (32) wide x 600 inch (15240 mm) long

1шт.
