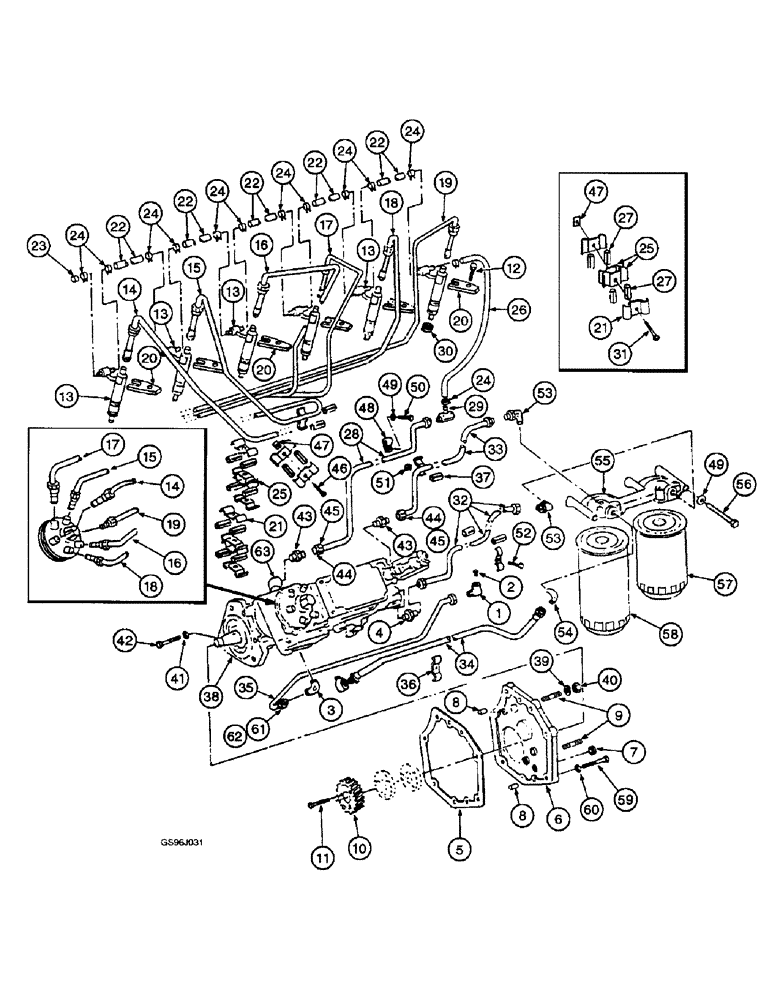

Запчасти Case IH 1660 (3-02) - FUEL INJECTION PUMP AND SYSTEM, DT466B ENGINE (02) - FUEL SYSTEM

1

686839C1

ELBOW

- flex side outlet

1шт.

2

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT (Replaces plug 444613)

1шт.

3

606296C1

90 ELBOW

- flex lube oil inlet

1шт.

4

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - primary pump inlet and outlet, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)

2шт.

5

675609C2

GASKET

- injection pump mounting adapter

1шт.

6

689146C91

ADAPTER

ASSEMBLY - injection pump mounting, Includes: Ref. 7 - 9

1шт.

7

217-442

PLUG,3/4" - 14

- hex socket headless, 3/4 inch PT (Replaces plug 273469)

1шт.

8

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

9

256333R1

STUD

- pump mounting

2шт.

10

676922C2

GEAR

- injection pump, 33 tooth

1шт.

11

27366R1

BOLT,Hex, 5/16" - 24 x 1 1/2", Gr 8

- hex, 5/16 NF x 1-1/2 inch, grade 8

3шт.

12

691105C1

BOLT

- hex, 5/16 NC x 1-1/16 inch

6шт.

13

REF

INSTRUCTION

NOZZLE ASSEMBLY - injection, parts list Fig. 3-06

6шт.

14

688851C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder No. 1

1шт.

15

688852C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder No. 2

1шт.

16

688853C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder No. 3

1шт.

17

688854C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder No. 4

1шт.

18

688855C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder No. 5

1шт.

19

688856C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder No. 6

1шт.

20

675479C2

CLAMP

RETAINER - injection nozzle

6шт.

21

673527C1

CLAMP

- hose

8шт.

22

NSS

NOT SOLD SEPARAT

HOSE - fuel return injector to injector, 5 inch (127 mm) long, cut from bulk hose 680246CX

5шт.

23

1802452C1

CAP

- fuel return, No. 1 injector

1шт.

24

A180159

CLAMP,10.29mm - 12.32mm

- retaining

13шт.

25

673577C1

CLAMP

- duplex

3шт.

26

NSS

NOT SOLD SEPARAT

HOSE - No. 6 injector to leakoff tube, 10 inch (245 mm) long, cut from bulk hose 680246CX

1шт.

27

258079C1

GROMMET

- injection tube, no longer available, order 12 inch (305 mm) of bulk hose 1982352CX, cut into 1-1/2 inch (38 mm) sections and slit lengthwise

16шт.

28

680316C91

TUBE,0.375" OD, 28.88" Length

- fuel return

1шт.

29

673196C1

TEE

- fuel leakoff

1шт.

30

1342831C1

SEAL

GROMMET - injection dust cover

6шт.

31

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW - slotted head 1/4 NC x 1-1/4 inch

3шт.

32

1810375C91

TUBE,0.375" OD

- primary filter to pump (Replaces tube 684075C91)

1шт.

33

684077C91

TUBE,0.375" OD, 15.75" Length

- primary pump to final filter

1шт.

34

688190C1

HOSE

- final filter to injection pump

1шт.

35

688301C91

TUBE

- lube oil

1шт.

36

684899C1

CLAMP

- hose

4шт.

37

397483R1

GROMMET

- 5/8 inch

2шт.

38

1806912C91

PUMP

- injection, new

1шт.

38

1934212C1

REMAN-INJECTION PUMP

1660 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0038346) (1/86-12/92) Reman For New P/N 1806912C91

1шт.

38

1934213C1

CORE-INJECTION PUMP

Return Number

1шт.

38

1810860C91

PUMP - injection, new, Australia only

1шт.

39

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

2шт.

40

329-116

NUT,3/8"-24, G8

2шт.

41

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

1шт.

42

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

1шт.

43

687426C1

ADAPTER,1/4" NPT x 5/8" - 24 NPT

FITTING - fuel return tube orifice

1шт.

44

222-104

SLEEVE,3/8" Tube

- 3/8 inch tube OD

6шт.

45

222-114

NUT,5/8"-24

NUT - hex, 3/8 tube OD x 5/8 inch NF

6шт.

46

340-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, 1/4 NC x 3/4 inch

1шт.

47

684548C1

NUT

- spring, 1/4 inch

4шт.

48

673193C1

CLIP

CLAMP - tube

2шт.

49

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

5шт.

50

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

51

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

52

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

53

222-4047

ELBOW

- 90 degree, compression, 3/8 tube OD x 1/4 inch PT, primary filter outlet and final filter inlet

2шт.

54

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree, 5/8-18 45 degree flare x 1/4 inch PT

1шт.

55

1809590C91

HEAD ASSY.

HEADER - fuel filter

1шт.

56

326-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

3шт.

57

A184773

SEPARATOR

FILTER - primary fuel (Replaces filter 625627C1)

1шт.

58

A184774

FUEL FILTER

FILTER - final fuel (Replaces filter 672603C2)

1шт.

59

326-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

2шт.

60

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

61

222-153

SLEEVE,1/4" Tube

(Replaces sleeve 685158C1) 1/4" Tube

2шт.

62

87017024

TUBE NUT,1/2"-24

NUT - tube hex, 1/4 inch OD x 1/2-24 inch (Replaces nut 915499R1)

2шт.

63

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT

1шт.

680246CX

LARGE HOSE

HOSE - bulk, 10 foot (3048 mm) roll, sold by the foot

1шт.
