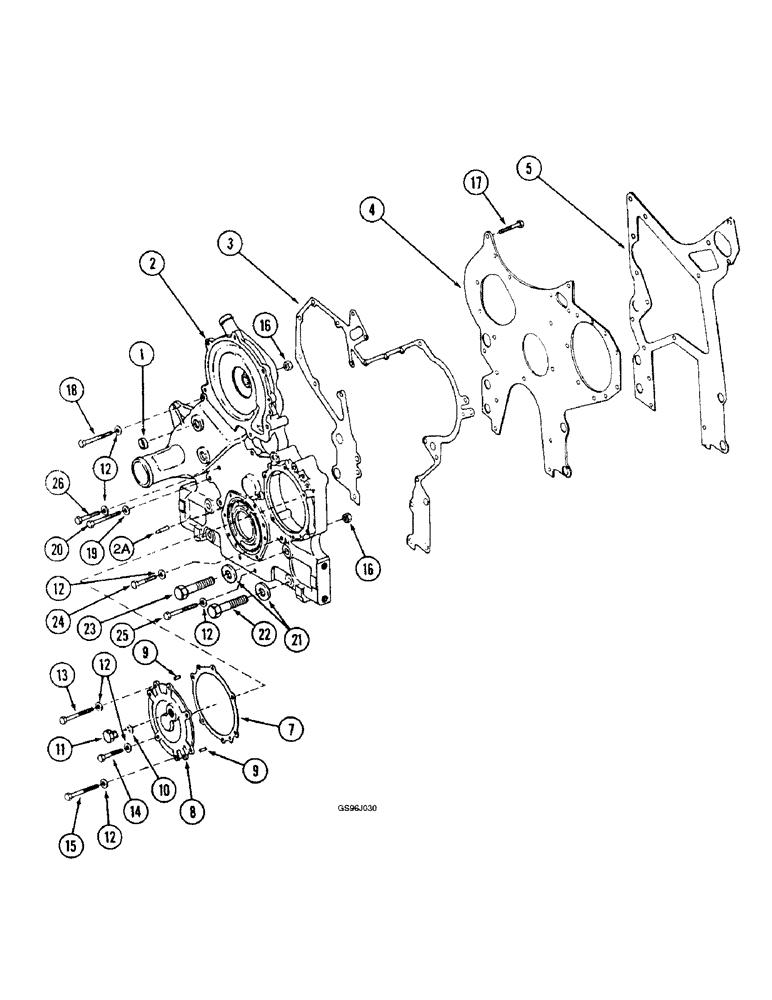

Запчасти Case IH 1660 (2-58) - ENGINE FRONT COVER, DT466B ENGINE (01) - ENGINE

1806031C92

COVER

ASSEMBLY - engine front, Includes: Ref. 1, 2, and 2A

1шт.

1

41-1616

PLUG,Cup, 1", Stainless

3шт.

2

NSS

NOT SOLD SEPARAT

COVER - engine front, order cover assembly 1806031C92

1шт.

2a

367572R1

INDICATOR

POINTER - timing

1шт.

217-437

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

2шт.

3

675813C2

GASKET,0.79mm Thk

- front cover

1шт.

4

675811C1

PLATE

- front

1шт.

5

675812C2

GASKET

- front plate

1шт.

7

675816C2

GASKET,0.79mm Thk

- injection pump access cover

1шт.

8

675814C91

COVER

ASSEMBLY - injection pump access, Includes: Ref. 9

1шт.

9

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

10

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - plug

1шт.

11

445097

PLUG

- hex, 7/8-18 inch

1шт.

12

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

23шт.

13

326-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 8

1шт.

14

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

15

326-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

3шт.

16

329-105

NUT,5/16"-18, G8

4шт.

17

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

18

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

3шт.

19

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

20

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

1шт.

21

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

22

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

23

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

24

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

25

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

7шт.

26

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.
