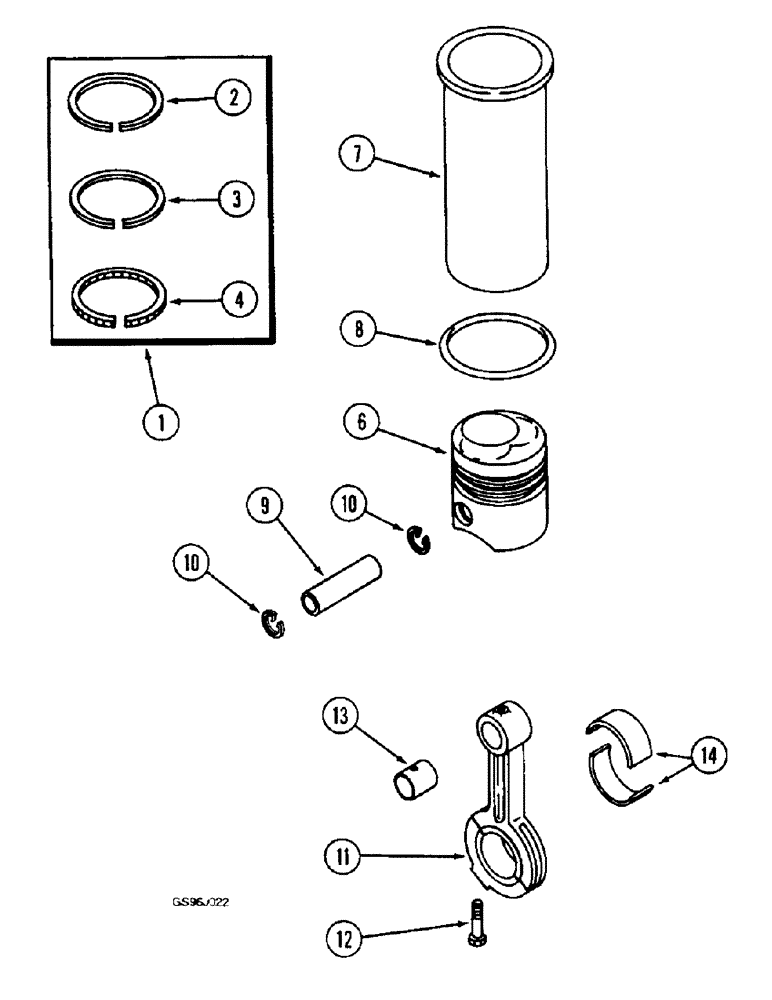

Запчасти Case IH 1660 (2-44) - CONNECTING RODS, PISTONS AND SLEEVES, DT466B ENGINE (01) - ENGINE

1

1346906C91

PISTON RING SET

KIT - piston ring (Replaces ring sets 687429C92 and 1810358C93), Includes: Ref. 2 - 4

6шт.

2

NSS

NOT SOLD SEPARAT

RING - compression piston, top or first groove, order kit 1346906c91

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression piston, second groove, order kit 1346906c91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil piston, third or bottom groove, order kit 1346906c91

1шт.

1802581C96

PACKAGE

KIT - engine, piston and sleeve (Replaces kit 1802581C95), Includes: Ref. 6 - 10

6шт.

6

NSS

NOT SOLD SEPARAT

PISTON - engine, order kit 1802581C96

1шт.

7

A77692

SLEEVE CYLINDER

SLEEVE - cylinder (Replaces sleeve 682720C1)

1шт.

8

680086C1

GASKET KIT

KIT - cylinder sleeve O-ring

1шт.

NSS

NOT SOLD SEPARAT

O-RING - cylinder sleeve

3шт.

9

670675C1

PISTON PIN,41.27mm OD x 89.15mm L

PIN - piston

1шт.

10

326874R1

RETAINER

RING - piston pin retaining

2шт.

11

688923C91

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 11 - 13

6шт.

11

735242C91

REMAN-CONNECTING ROD

Rod Assembly - connecting

6шт.

11

1928155C1

CORE-ROD CONNECTING

Return Part Number

6шт.

NSS

NOT SOLD SEPARAT

ROD - connecting, order rod assembly

1шт.

12

676679C2

BOLT

- connecting rod

2шт.

13

675006C1

BUSHING

- piston pin

1шт.

14

1808059C92

BEARING SET,77.74mm ID x 82.8mm OD x 32mm W

KIT - bearing, standard, two halves

6шт.

14

1808060C91

BEARING LINER

BEARING - connecting rod, 0.010 inch undersize

6шт.

14

1808061C92

BEARING SET,82.80mm OD x 32 mm

BEARING - connecting rod, 0.020 inch undersize

6шт.

14

1808062C91

BEARING LINER

BEARING - connecting rod, 0.030 inch undersize

6шт.

680333C92

SHIM KIT

KIT - cylinder sleeve shim, Includes: shims listed below

6шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.002 inch, order kit 680333C92

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.004 inch, order kit 680333C92

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.010 inch, order kit 680333C92

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.020 inch, order kit 680333C92

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.032 inch, order kit 680333C92

2шт.
