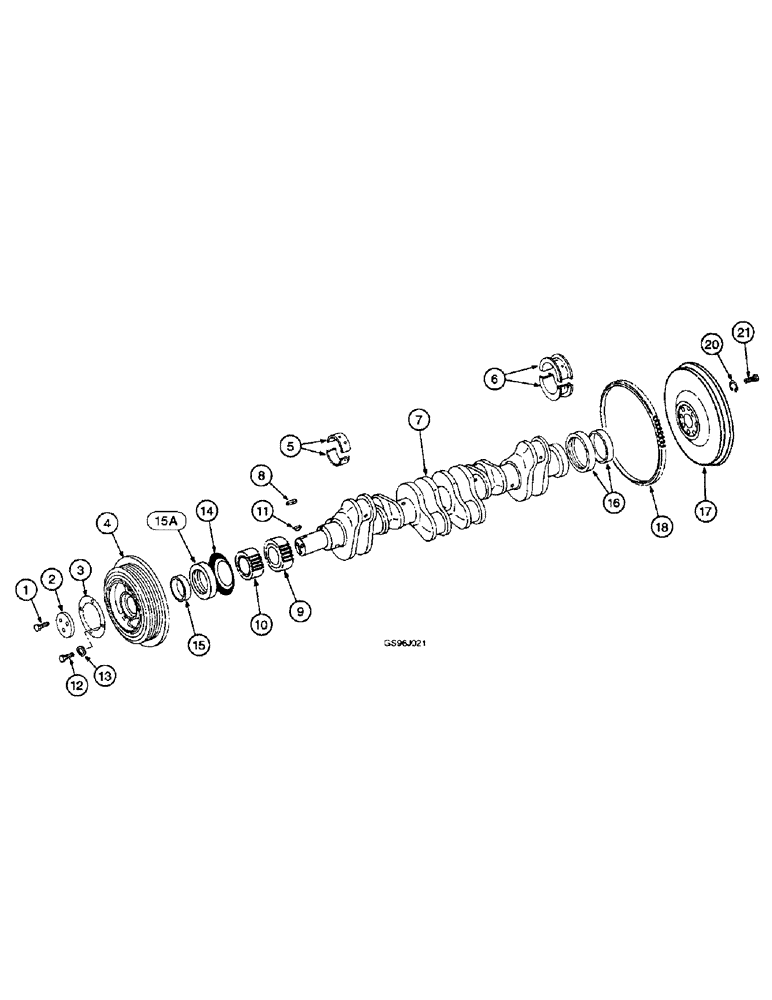

Запчасти Case IH 1660 (2-42) - CRANKSHAFT, FLYWHEEL AND BEARINGS, DT466B ENGINE (01) - ENGINE

1

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

2

675412C1

PLATE

- damper retaining

1шт.

3

682835C1

PLATE

- vibration damper

1шт.

4

683459C94

PULLEY

DAMPER - vibration

1шт.

5

1808069C92

CRANKSHAFT BEARING

BEARING - crankshaft main, front and intermediate, two halves, standard

6шт.

5

1808070C92

CRANKSHAFT BEARING

BEARING - crankshaft main, 0.010 inch undersize, front and intermediate, two halves

6шт.

5

1808071C92

CRANKSHAFT BEARING

BEARING - crankshaft main, 0.020 inch undersize, front and intermediate, two halves

6шт.

5

1808072C91

BEARING LINER

BEARING - crankshaft main, 0.030 inch undersize, front and intermediate, two halves

6шт.

6

684579C93

CRANKSHAFT BEARING,116.33mm ID x 122.68mm OD x 45.14mm W

BEARING - crankshaft main, rear, two halves, standard

1шт.

6

684582C93

CRANKSHAFT BEARING

BEARING - crankshaft main, 0.010 undersize, rear, two halves

1шт.

6

687394C3

CRANKSHAFT BEARING

BEARING - crankshaft main, 0.020 undersize, rear, two halves

1шт.

6

684585C93

BEARING SET

BEARING - crankshaft main, 0.030 undersize, rear, two halves

1шт.

681319C93

CRANKSHAFT

ASSEMBLY - standard, no longer available as an assembly, order components, Includes: Ref. 7 - 10

1шт.

749656C92

REMAN-CRANKSHAFT

Crankshaft Assembly - remanufactured, 0.030 inch undersize

1шт.

1928183C1

CORE-CRANKSHAFT

Return Part Number

1шт.

7

179197A1

CRANKSHAFT

- engine, without bearings

1шт.

1808069C92

CRANKSHAFT BEARING

BEARING - crankshaft main

6шт.

684579C93

CRANKSHAFT BEARING,116.33mm ID x 122.68mm OD x 45.14mm W

BEARING - crankshaft main rear

1шт.

1808059C92

BEARING SET,77.74mm ID x 82.8mm OD x 32mm W

KIT - bearing, connecting rod

6шт.

8

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

9

675406C1

GEAR

- crankshaft, 32 tooth

1шт.

10

675364C1

GEAR

SPLINE - oil pump drive, 41 tooth

1шт.

11

691044C1

KEY

- Woodruff, 5/16 x 1 inch

1шт.

12

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

13

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

4шт.

14

687024C1

SEALING WASHER

WASHER - seal

1шт.

690437C94

SEAL KIT

KIT - front oil seal and wear sleeve, Includes: Ref. 15 and 15A

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - crankshaft front oil

1шт.

15a

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

16

1809964C92

OIL SEAL

KIT - crankshaft, rear oil seal and wear sleeve, Includes: Seal, sleeve, gasket, diagram

1шт.

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

332303R1

SEAL

- seal face plate, not used in this application

1шт.

NSS

NOT SOLD SEPARAT

DIAGRAM - seal installation

1шт.

17

683399C1

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 18

1шт.

18

690252C1

GEAR

- ring, 132 tooth

1шт.

20

685902C1

WASHER

- hardened

8шт.

21

25277R1

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 8

- hex, 1/2 NF x 1-5/8 inch, grade 8

8шт.
