Запчасти Case IH 1660 (2-40) - OIL FILTER, DT466B ENGINE (01) - ENGINE

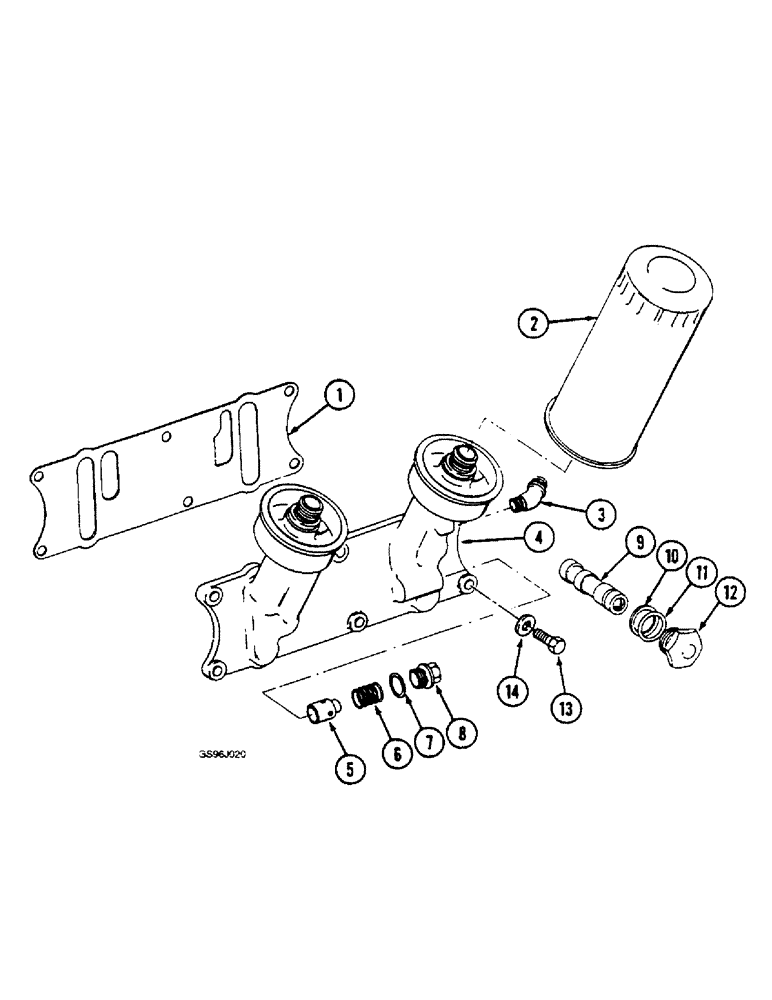

Схема запчастей Case IH 1660 - (2-40) - OIL FILTER, DT466B ENGINE (01) - ENGINE
6
5
2
4
7
1
14
11
9
13
12
10
8
3

Артикул

Название

Примечание

Количество

1

675398C2

GASKET

- oil filter base

1шт.

2

A184775

ENGINE OIL FILTER

FILTER - lubricating oil (Replaces filter 675616C91)

2шт.

3

606889C1

ELBOW

- 45 degree, flex

1шт.

4

675358C1

BASE

- lubricating oil filter

1шт.

5

601917C1

VALVE

- relief

1шт.

6

676137C1

SPRING

- valve

1шт.

7

676136C1

GASKET

- valve plug

1шт.

8

676135C1

PLUG

- spring retaining

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - oil pressure regulating, order kit 680237C93

1шт.

10

261624R1

GASKET

- regulator valve cap

1шт.

11

349055R2

RING

O-RING - 13/16 ID x 3/32 inch wide

1шт.

12

675395C1

CAP

- pressure regulating valve

1шт.

13

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex lock, 3/8 NC x 1-1/8 inch, grade 8

5шт.

14

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

680237C93

VALVE

KIT - oil pressure regulating valve, Includes: Gasket, O-ring, Valve

1шт.

261624R1

GASKET

- regulator valve cap

1шт.

349055R2

RING

O-RING - 13/16 ID x 3/32 inch wide

1шт.

NSS

NOT SOLD SEPARAT

VALVE - regulating, order kit 680237C93

1шт.
